Diagnostic Flowchart

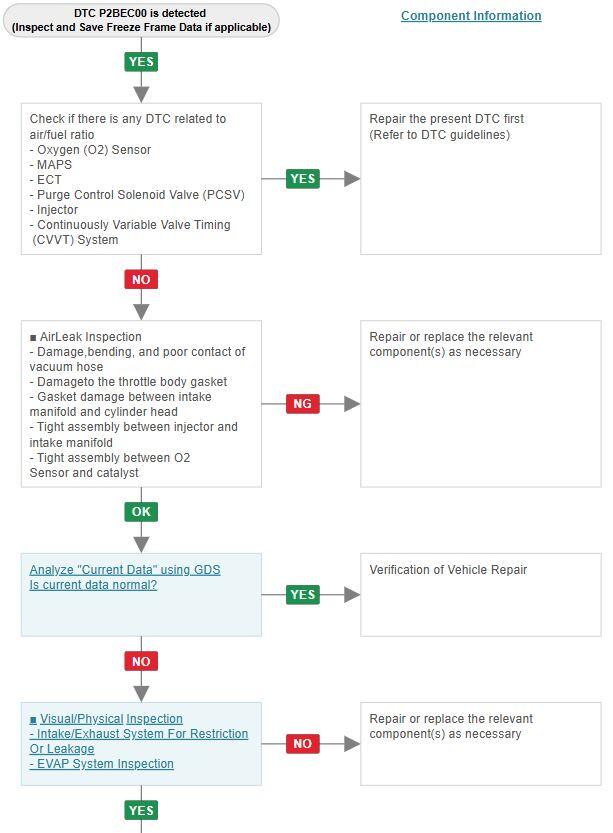

Fig 1: P2BEC-00 (2 Of 2)
G16779343Courtesy of HYUNDAI MOTOR AMERICA

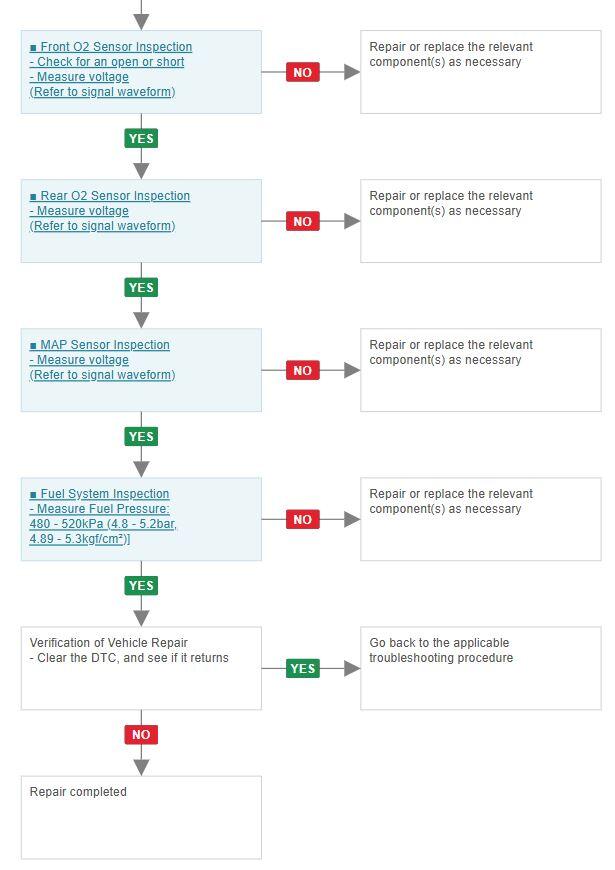

Fig 2: P2BEC-00 (2 Of 2)
G00685003Courtesy of HYUNDAI MOTOR AMERICA
