Repair procedures: Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.NOTE:
- When tightening the high pressure fuel pipe flange nut, use a special tool (09314-3V100) or a wrench torque wrench.
- Do not reuse the used injector fixing clip.
- Do not reuse the used high pressure fuel pipe.
- Careful not to deform the high pressure fuel pipe shape.
- Do not tilt the torque wrench when tightening the nut.
- Observe the work order and tightening torque when assembling.
- After assembly of the high pressure fuel pipe, check for leaks.

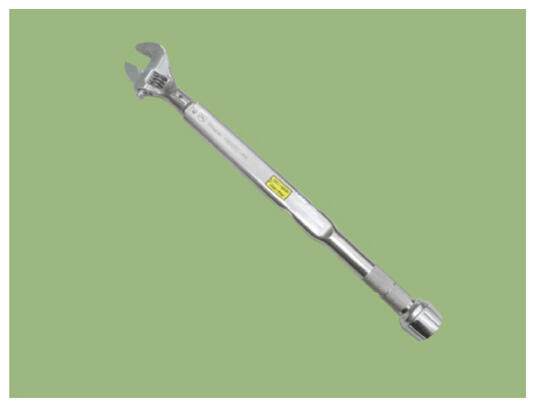

- When tightening the high pressure fuel pipe flange nut, use a special tool (09314-3V100) or a wrench torque wrench.
