Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the rear propeller shaft.

    (Refer to Driveshaft and Axle - "REAR PROPELLER SHAFT ")

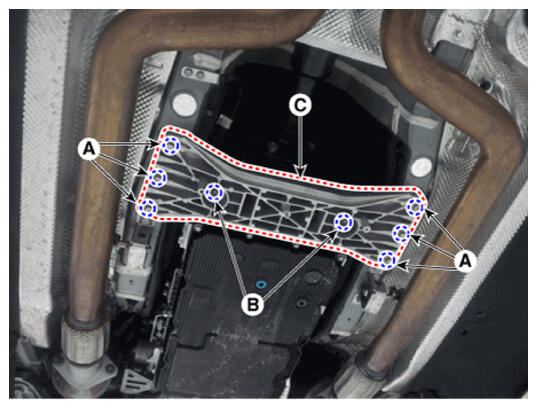

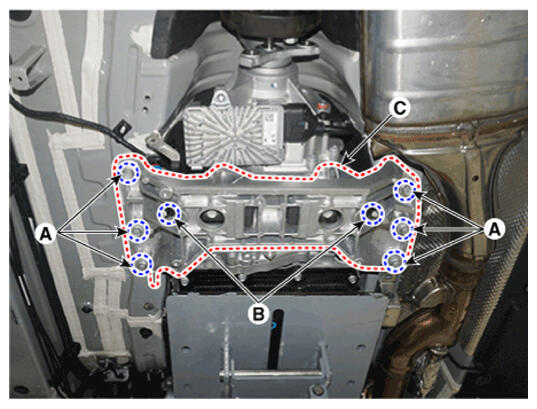

  3. Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C).

    [2WD]

    G16771279Courtesy of HYUNDAI MOTOR AMERICA

    [4WD]

    G16771280Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Support the transmission solenoid valve body cover using a jack.

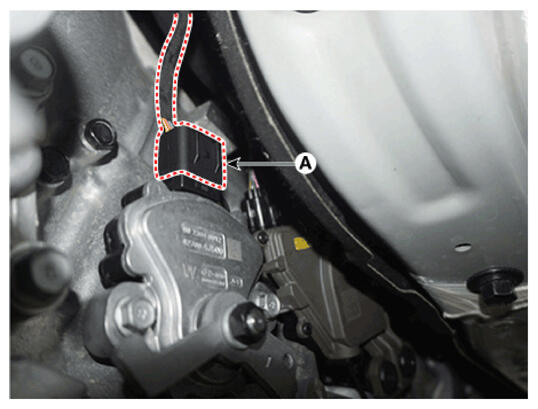

  4. Disconnect the parking switch connector (A).
    G16771281Courtesy of HYUNDAI MOTOR AMERICA

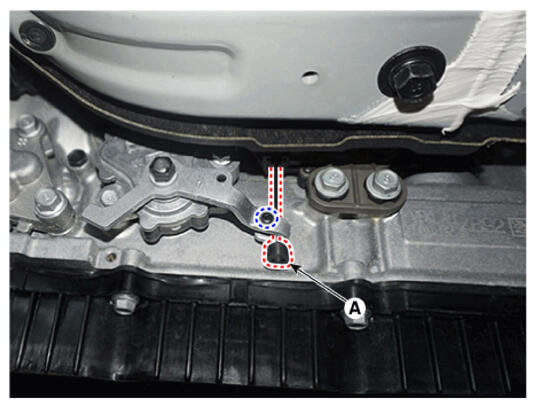

  5. Loosen the fastner and then separate the parking release cable (A).
    G16771282Courtesy of HYUNDAI MOTOR AMERICA

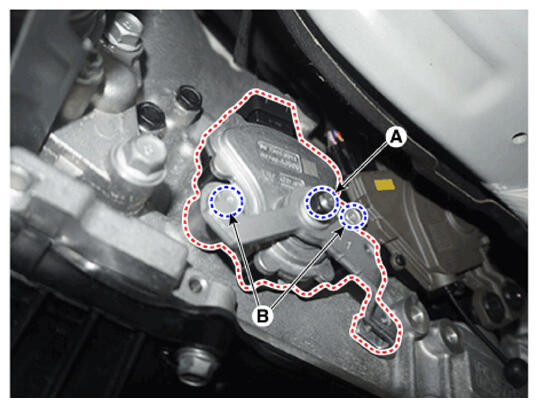

  6. Loosen the nut (A) and the bolts (B) and then removing the parking switch.
