Steering column module (SCM)

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

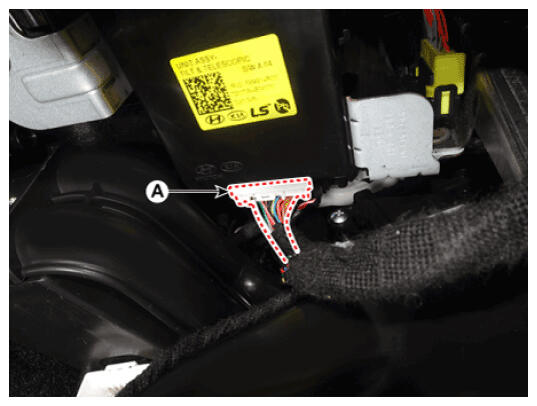

  3. Disconnect the steering column module connector (A).
    G16854805Courtesy of HYUNDAI MOTOR AMERICA

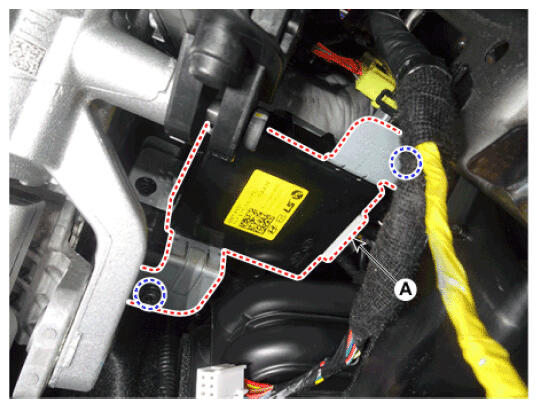

  4. Remove the steering column module (A) after loosening the mounting nuts.
    G16854806Courtesy of HYUNDAI MOTOR AMERICA

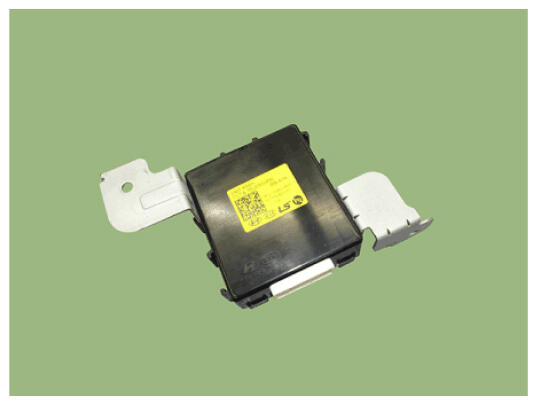

    G16854807Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedures.
