Battery Sensor: Removal

Turn the ignition switch OFF and disconnect the battery (-) terminal.

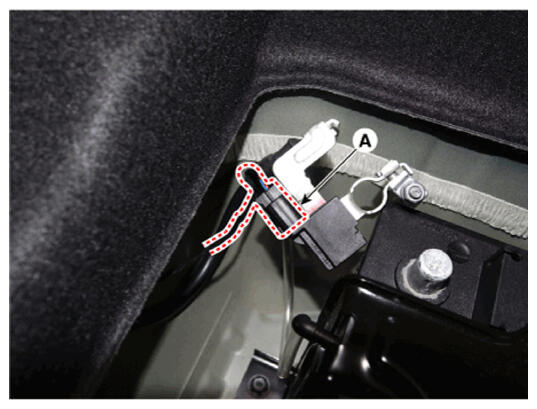

Disconnect the battery sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

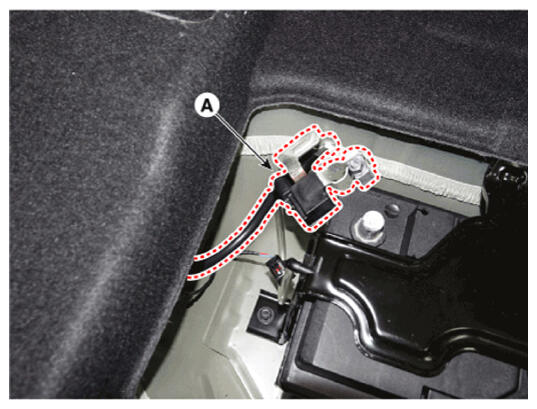

Remove the battery sensor (A).
Tightening torque: 26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
