Home >> Genesis >> 2025 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (5 Of 6) >> DTC P2100-00: Electric Throttle Valve Control System (ETS) Motor Power Open >> Troubleshooting >> Diagnostic Flowchart
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Diagnostic Flowchart

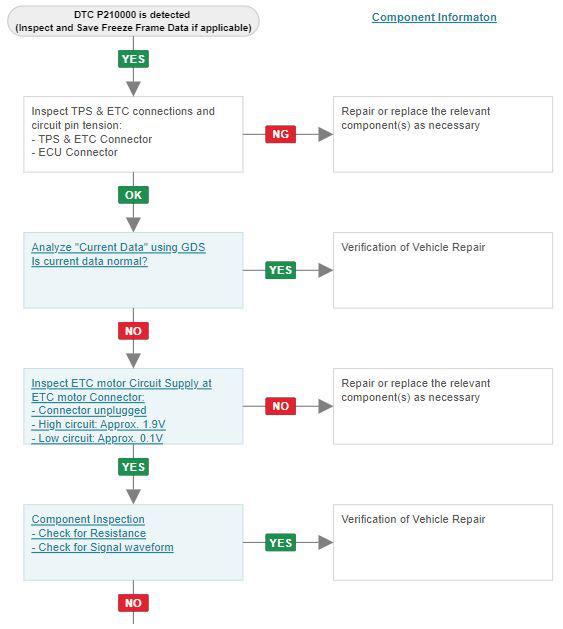

Fig 1: P2100-00 (1 Of 2)
G14767097Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: P2100-00 (2 Of 2)
G00618659Courtesy of HYUNDAI MOTOR AMERICA
