Automatic Transmission System: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the engine and transmission assembly.

    (Refer to Engine Mechanical System - "ENGINE AND TRANSMISSION ASSEMBLY ")

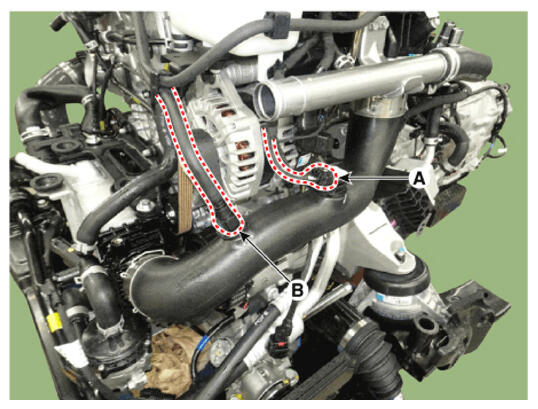

  3. Disconnect the boost pressure sensor connector (A) and vacuum hose connector (B).
    G16847232Courtesy of HYUNDAI MOTOR AMERICA

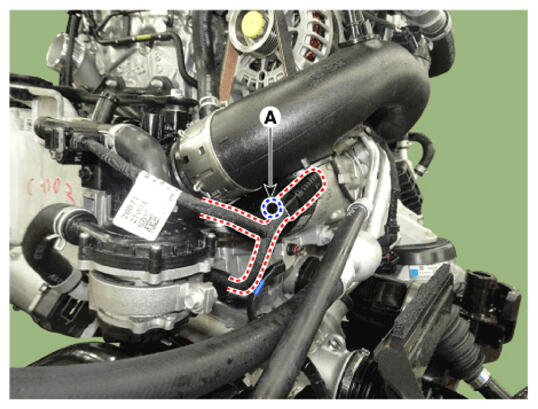

  4. Separate the connector wiring (A).
    G16847233Courtesy of HYUNDAI MOTOR AMERICA

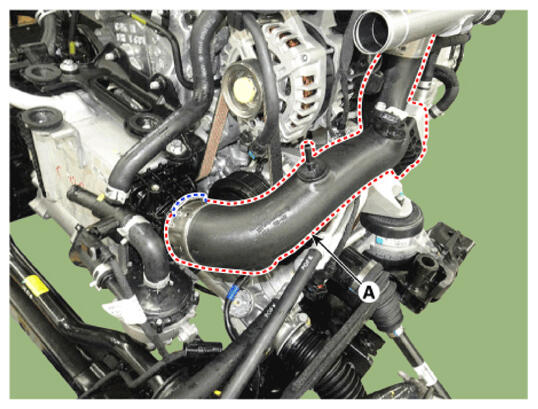

  5. Separate the intercooler outlet hose (A).
    G16847234Courtesy of HYUNDAI MOTOR AMERICA

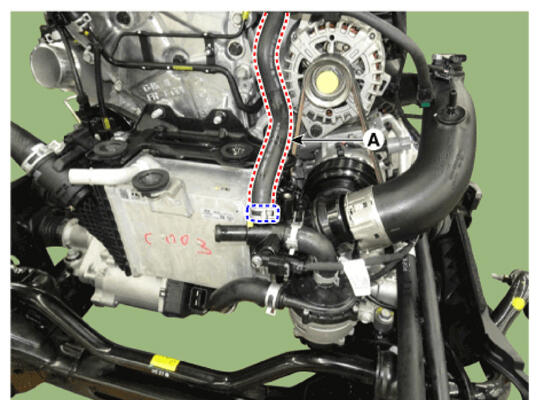

  6. Separate the EWP water hose (A).
    G16847235Courtesy of HYUNDAI MOTOR AMERICA

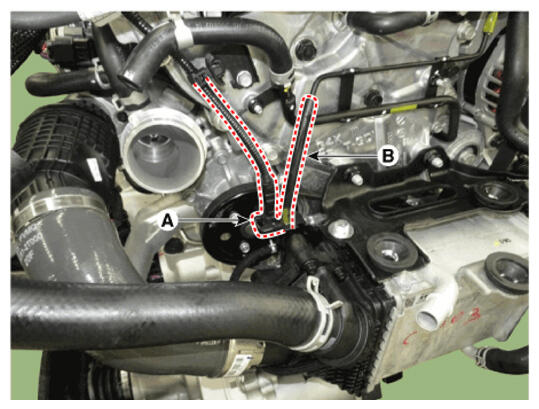

  7. Separate the RCV solenoid connector (A) and hose (B).
    G16847236Courtesy of HYUNDAI MOTOR AMERICA

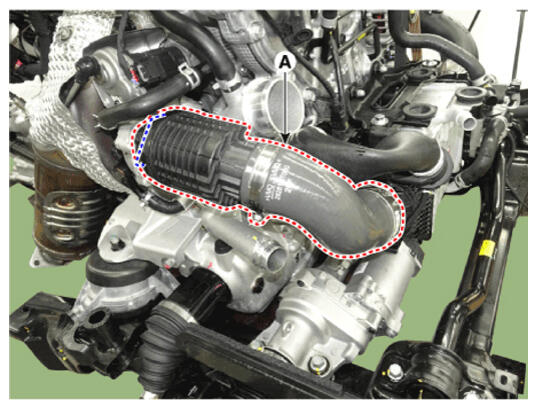

  8. Separate the intercooler inlet hose (A).
    G16847237Courtesy of HYUNDAI MOTOR AMERICA

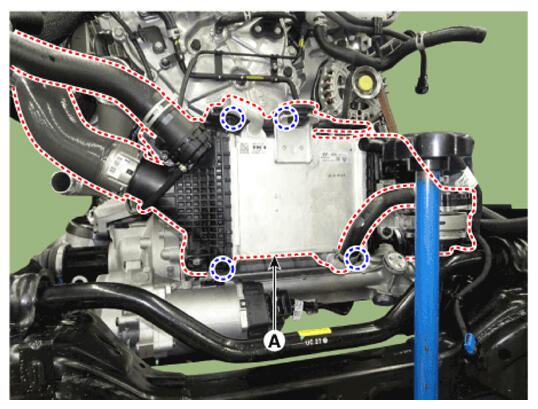

  9. Loosen the bolts and then removing the water cooled Intercooler (A).
    G16847238Courtesy of HYUNDAI MOTOR AMERICA

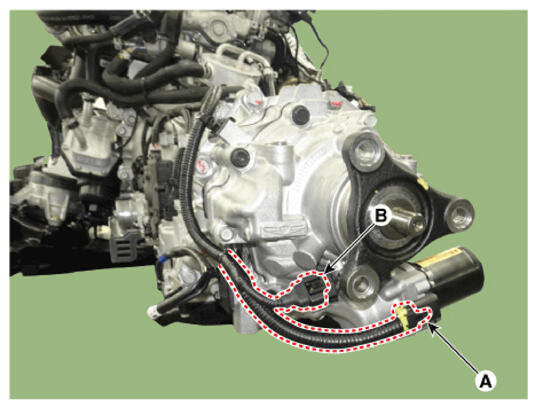

  10. Disconnect the hydraulic motor connector (A) and pressure sensor connector (B).
    G16847239Courtesy of HYUNDAI MOTOR AMERICA

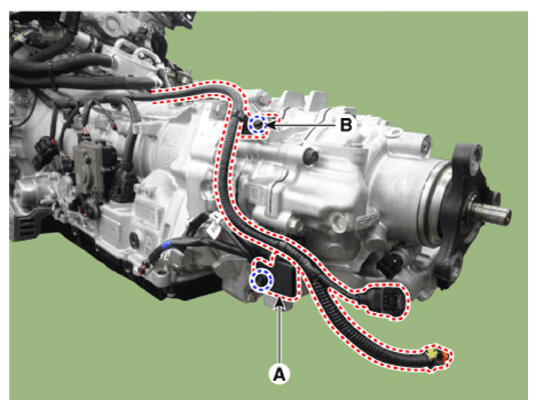

  11. Loosen the bolts and then separate the wiring bracket (A, B).
    G16847240Courtesy of HYUNDAI MOTOR AMERICA

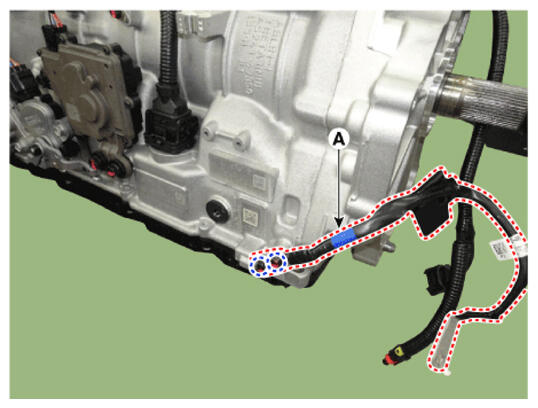

  12. Loosen the bolts and then removing the ground line (A).
    G16847241Courtesy of HYUNDAI MOTOR AMERICA

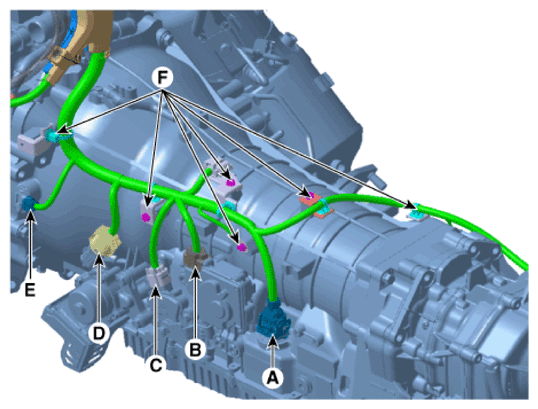

  13. Remove the items below.
    1. Main connector
    2. Parking release actuator connector
    3. Position sensor connector
    4. Electronic Oil Pump (EOP) connector
    5. Crank Position Sensor (CKPS) connector
    6. Ground line and wiring bracketing
    G16847242Courtesy of HYUNDAI MOTOR AMERICA

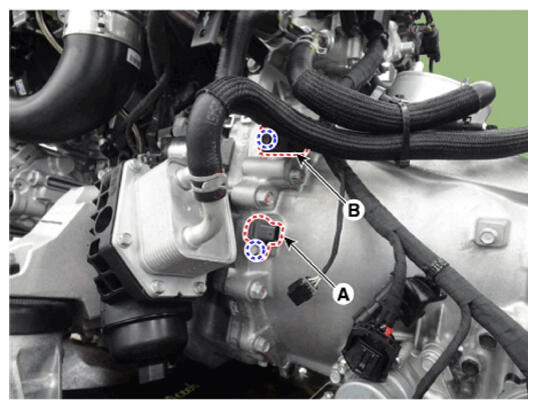

  14. Loosen the bolts and then removing the CKP sensor (A) and wiring bracket (B).
    G16847243Courtesy of HYUNDAI MOTOR AMERICA

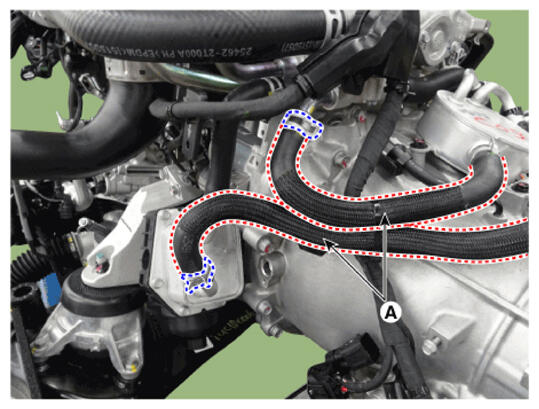

  15. Separate the cooling hose (A).
    G16847244Courtesy of HYUNDAI MOTOR AMERICA

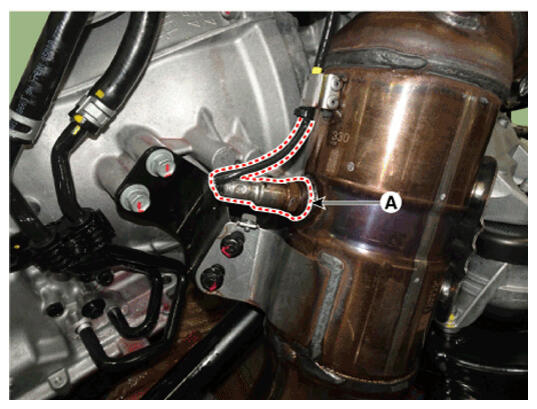

  16. Separate the HO2 sensor (A).
    G16847245Courtesy of HYUNDAI MOTOR AMERICA

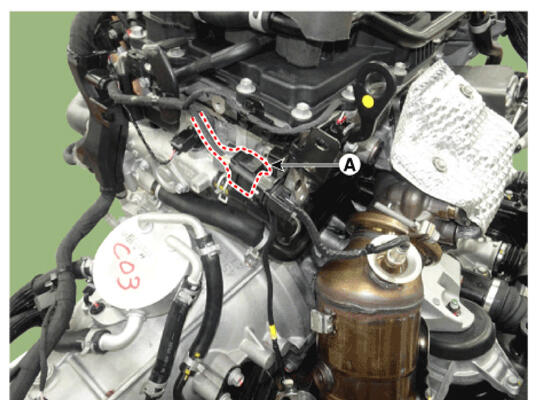

  17. Disconnect the HO2 sensor connector (A).
    G16847246Courtesy of HYUNDAI MOTOR AMERICA

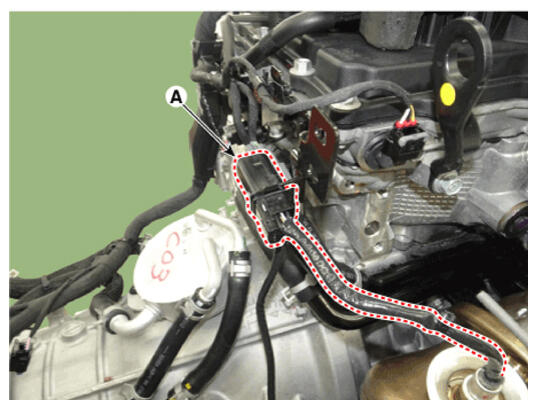

  18. Separate the HO2 sensor connector (A) from bracket.
    G16847247Courtesy of HYUNDAI MOTOR AMERICA

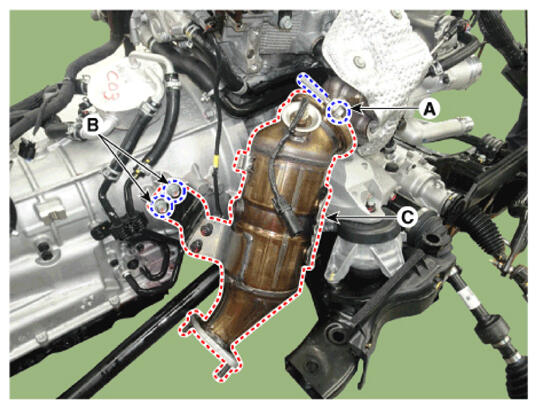

  19. Loosen the clamp (A) and bolts (B) and then removing the warmer catalytic converter (C).
    G16847248Courtesy of HYUNDAI MOTOR AMERICA

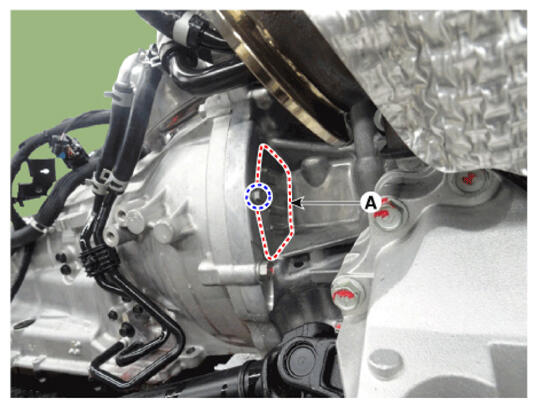

  20. Loosen the bolt and then removing the dust cover (A).
    G16847249Courtesy of HYUNDAI MOTOR AMERICA

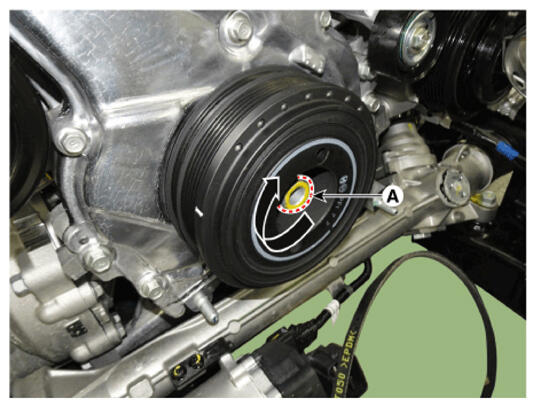

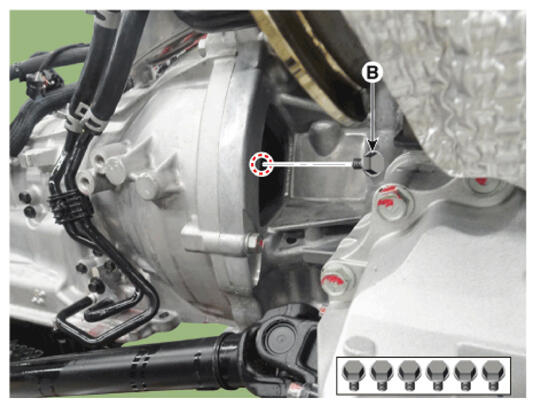

  21. Loosen the torque converter mounting bolts (B) by rotating the crankshaft (A).
    G16847250Courtesy of HYUNDAI MOTOR AMERICA
    G16847251Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, apply the ATF to the bolts thread before tightening the bolts.
    • When installing, lightly tighten the bolts (6-ea) and then tighten the bolts to the specified torque.

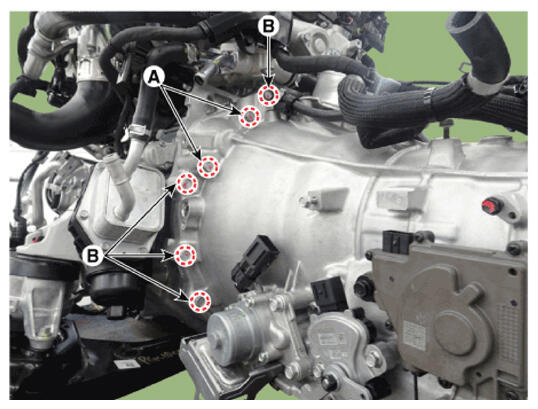

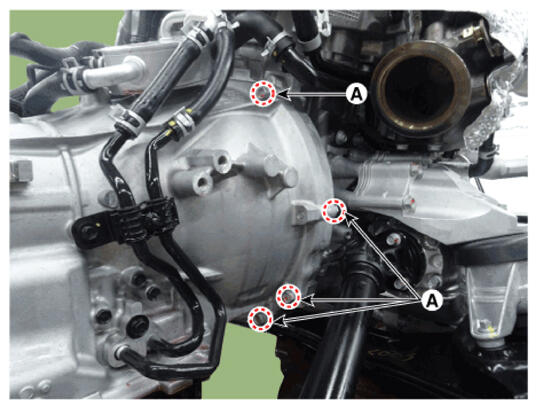

  22. Loosen the starter mounting bolts (A) and the transmission mounting bolts (B).

    Tightening torque:

    1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
    2. 78.5 - 98.1 N.m (4.3 - 5.5 kgf.m, 57.9 - 72.3 lb-ft)
    G16847252Courtesy of HYUNDAI MOTOR AMERICA
    G16847253Courtesy of HYUNDAI MOTOR AMERICA

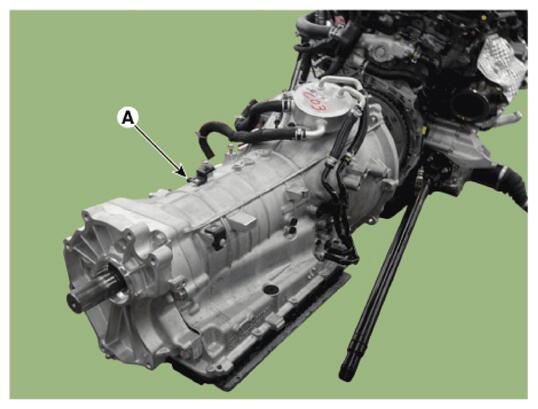

  23. After separating the transmission from the engine, remove the transmission (A) by lowering the jack slowly.
    G16847254Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to damage other nearby wiring or parts when removing the transmission assembly.
