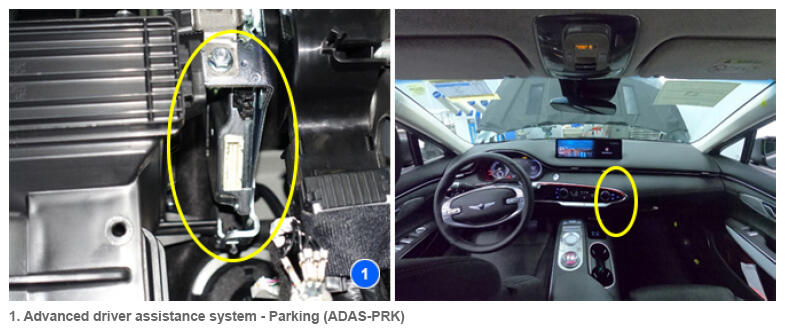

Advanced driver assistance system - Parking (ADAS-PRK)

G16836599Courtesy of HYUNDAI MOTOR AMERICA

The ADAS-PRK (Advanced driver assistance system - Parking) powers RSPA/PDW sensor for smooth operation.

The ADAS-PRK (Advanced driver assistance system - Parking) consists of many ultrasonic sensors: 4 front sensors, 2 side sensors in the front, 4 rear sensors, and 2 side sensors in the rear. The front and rear sensors senses an object in front of and behind the vehicle while the side ones search for parking spaces.
