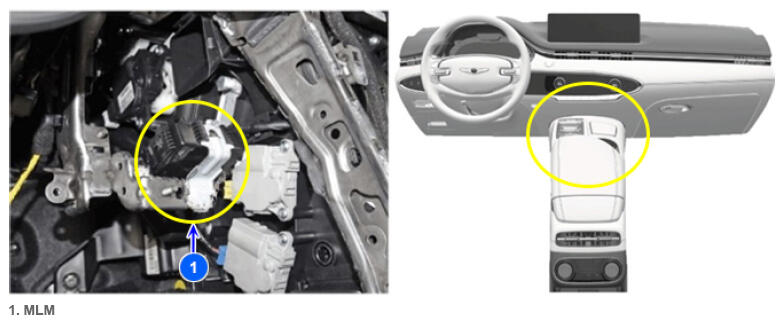

Mood Lamp Module
The mood lamp control system consists of a MLM* and mood lamp controllers. The MLM* judges and controls the operation of the mood lamp by sending/receiving mood lamp control-related signals via CAN communication. And, the MLM* controls the mood lamp controller via LIN communication.
- USM* Information: Mood lamp ON/OFF, color and brightness
→ A separate USM* setting is required to control the brightness of the mood lamp. This is different from the rheostat adjustment that controls the interior lights.
- Vehicle Information: Mood lamp's ON/OFF timing and B+, ACC, IG1, IG2
- Control of the slave controller: Mood lamp ON/OFF, color and brightness
Component Name_ETM Description ETM ICU* "ICU JUNCTION BLOCK" Integrated Central Unit SD929-6 MLM* "MOOD LAMP UNIT" Mood Lamp Master module Cockpit Mood Lamp 0 "CRASH PAD SWITCH_LIN (Garnish Mood Lamp LH)" MLM slave, Mood lamp controller Cockpit Mood Lamp 1 "GARNISH MOOD LAMP RH" Front Left Door Mood Lamp 0 "DRIVER DOOR MOOD LAMP #1" SD929-7 Front Left Door Mood Lamp 1 "DRIVER DOOR MOOD LAMP #2" Front Right Door Mood Lamp 0 "PASSENGER DOOR MOOD LAMP #1" Front Right Door Mood Lamp 1 "PASSENGER DOOR MOOD LAMP #2" Rear Left Door Mood Lamp 0 "REAR DOOR MOOD LAMP UNIT LH #1" SD929-8 Rear Left Door Mood Lamp 1 "REAR DOOR MOOD LAMP UNIT LH #2" Rear Right Door Mood Lamp 0 "REAR DOOR MOOD LAMP UNIT RH #1" Rear Right Door Mood Lamp 1 "REAR DOOR MOOD LAMP UNIT RH #2" Floor Console Mood Lamp 0 "CONSOLE MOOD LAMP" SD929-6 USM* User Settings Mode, "User Settings" in the cluster
