Driver Power Seat Module

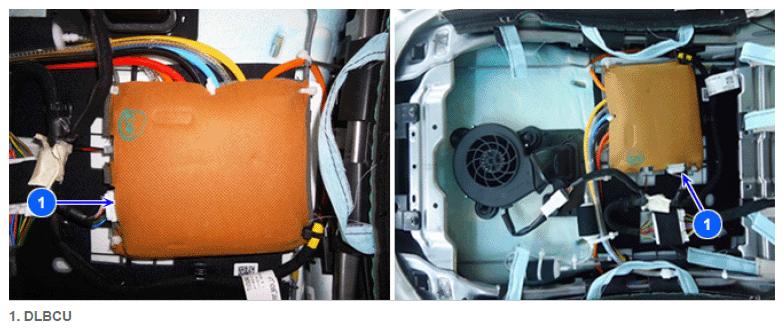

G16841518Courtesy of HYUNDAI MOTOR AMERICA

DLBCU* sets the driver's position and performs waist protection during long driving. And it is connected to ICU* to form B-CAN network of the vehicle.

Component Name_ETM Description ETM
DLBCU* "DRIVER LUMBAR SUPPORT UNIT" Drive Lumbar Bolster Cushion Unit SD200-6
ICU*
CGW
SJB		 → "ICU JUNCTION BLOCK"
→ "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
→ "ICU JUNCTION BLOCK"		 → [CGW+SJB] Integrated Central control Unit
→ Central GateWay
→ Smart Junction Block
