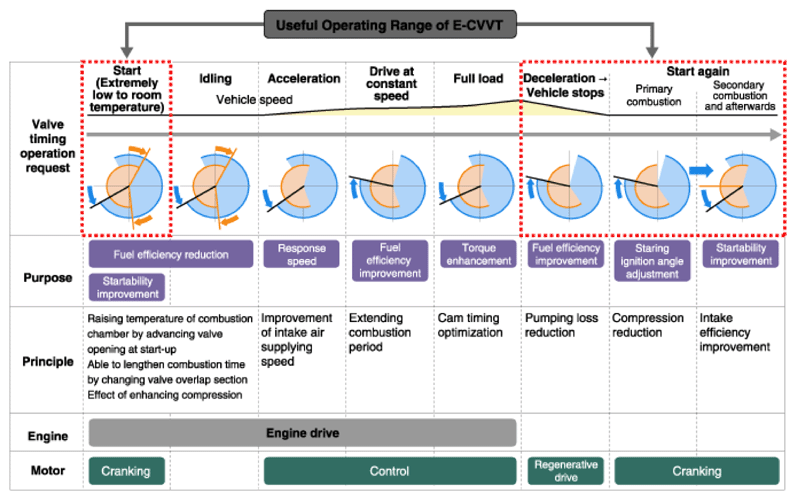

Electric Continuous Variable Valve Timing system (E-CVVT): Notes

G16846856Courtesy of HYUNDAI MOTOR AMERICA
