Diagnostic Flowchart

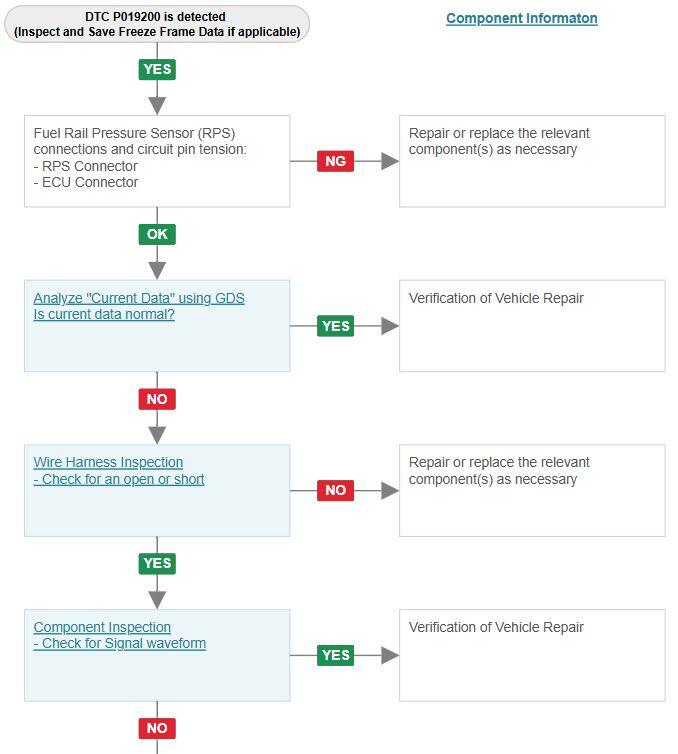

Fig 1: P0192-00 (1 Of 2)
G14737114Courtesy of HYUNDAI MOTOR AMERICA

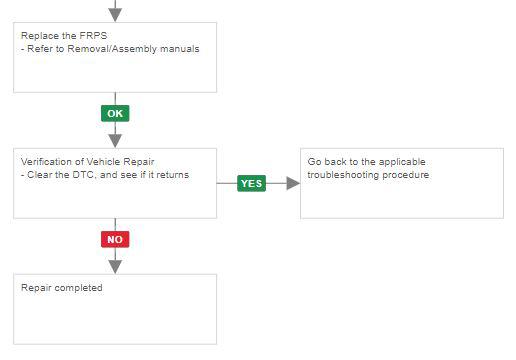

Fig 2: P0192-00 (2 Of 2)
G00618660Courtesy of HYUNDAI MOTOR AMERICA
