Diagnostic Flowchart

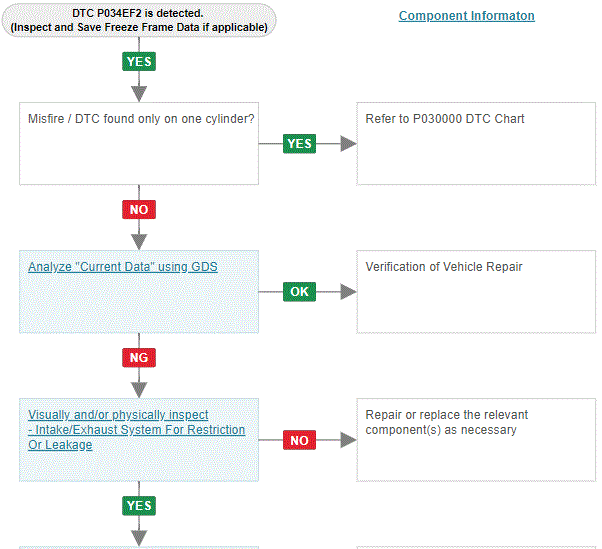

Fig 1: P034E-F2 (1 Of 3)
G14755040Courtesy of HYUNDAI MOTOR AMERICA

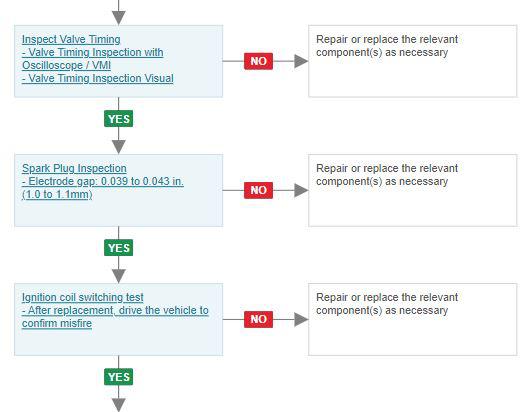

Fig 2: P034E-F2 (2 Of 3)
G00629985Courtesy of HYUNDAI MOTOR AMERICA

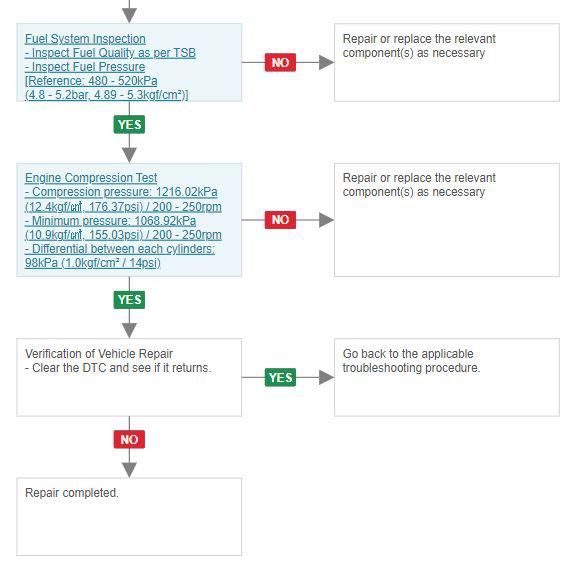

Fig 3: P034E-F2 (3 Of 3)
G00629986Courtesy of HYUNDAI MOTOR AMERICA
