Diagnostic Flowchart

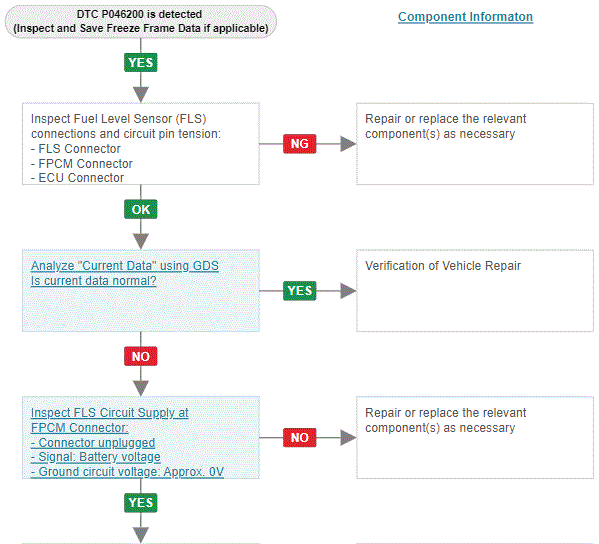

Fig 1: P0462-00 (1 Of 2)
G14755124Courtesy of HYUNDAI MOTOR AMERICA

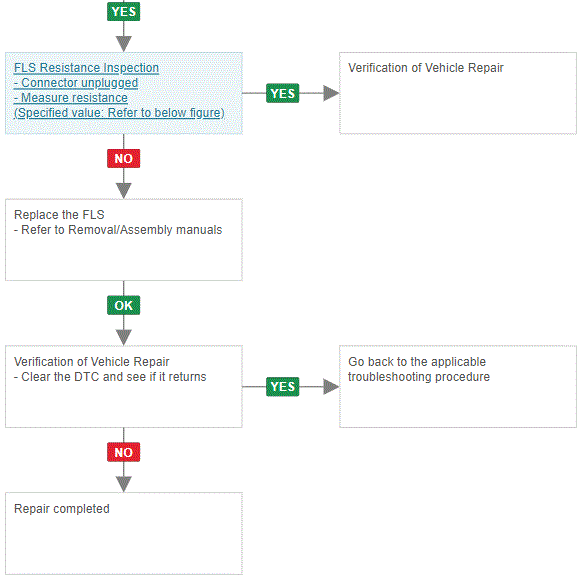

Fig 2: P0462-00 (2 Of 2)
G00619861Courtesy of HYUNDAI MOTOR AMERICA
