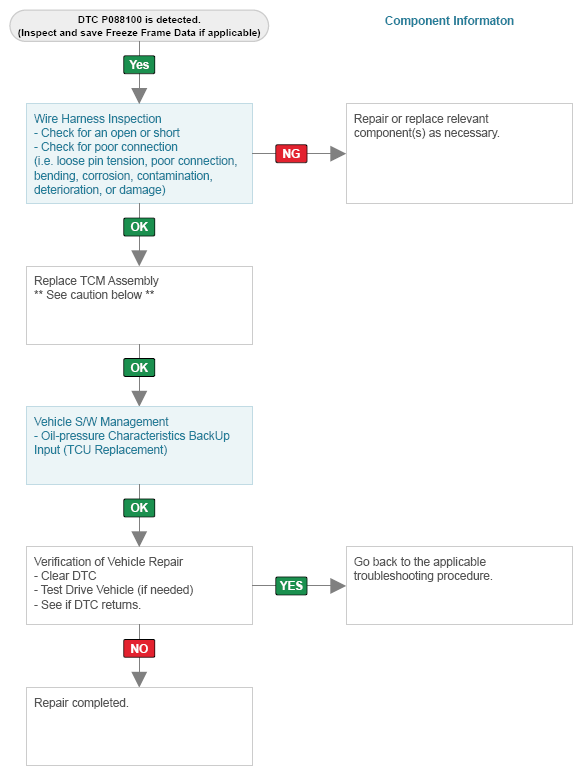

Diagnostic Flowchart

G16837358Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: When the TCM is replaced, make sure to use the S/W Management Menu and peforem all learned value options in the Engine and Transmission Sub-Menus.
