Components And Components Location: Components

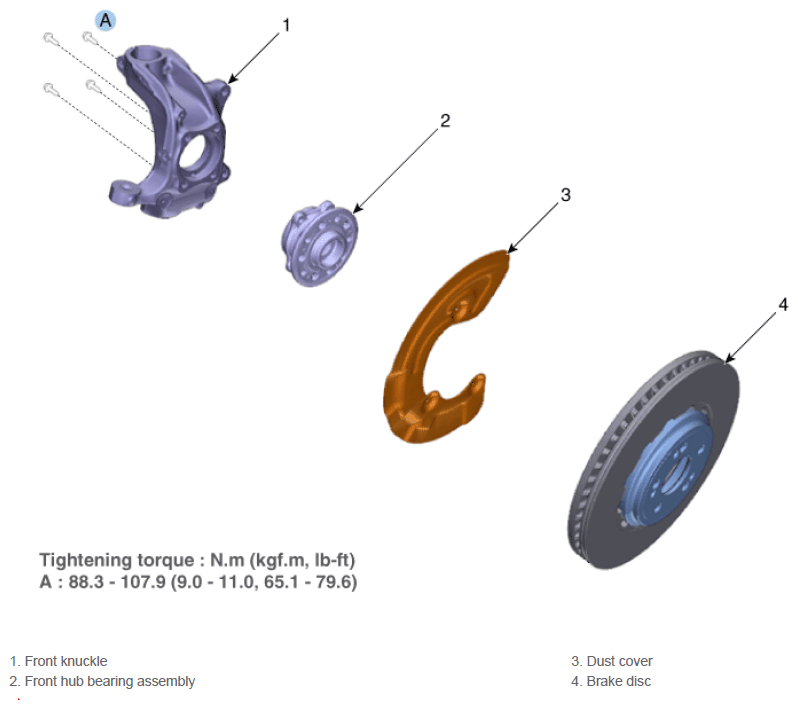

Fig 1: Front Hub, Knuckle And Tone Wheel Components Location With Torque Specifications
G16854236Courtesy of HYUNDAI MOTOR AMERICA
