Monitor Current Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Warm up the engine to normal operating temperature.

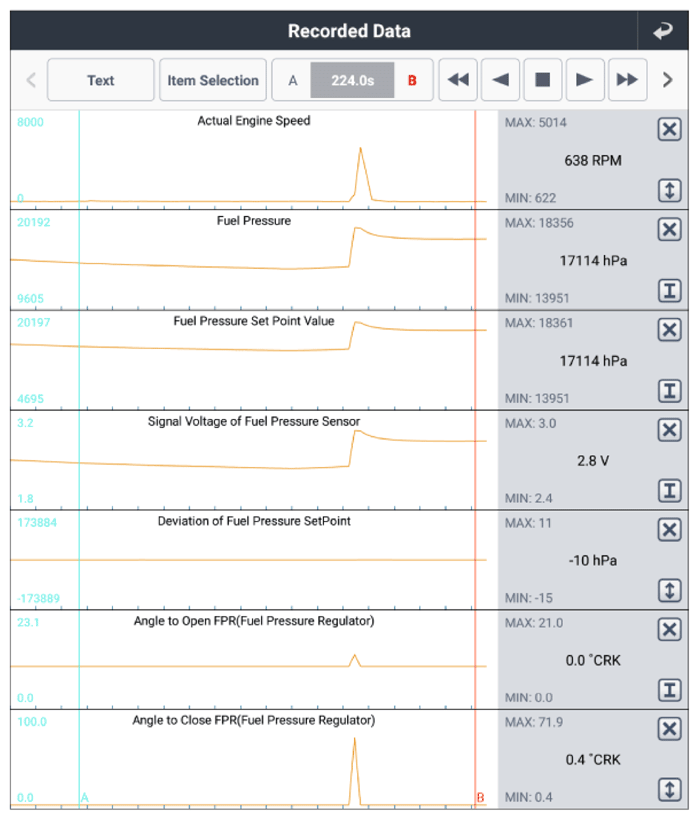

  5. Monitor following parameters in "Current Data" with GDS.
G16857545Courtesy of HYUNDAI MOTOR AMERICA
