Diagnostic Flowchart

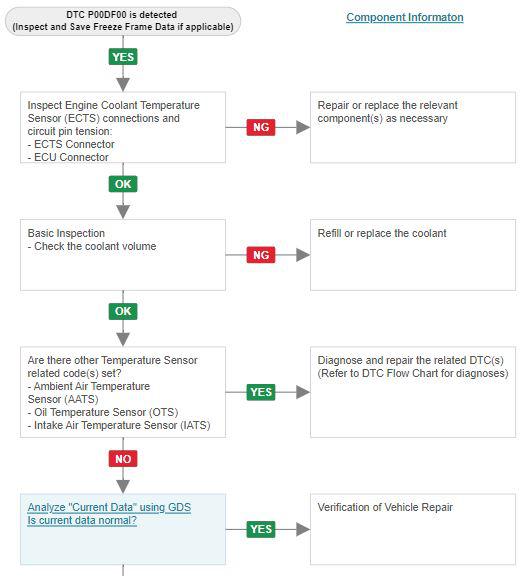

Fig 1: P00DF-00 (1 Of 2)
G14754907Courtesy of HYUNDAI MOTOR AMERICA

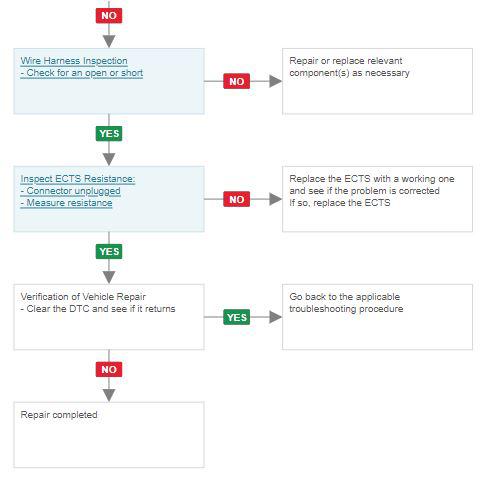

Fig 2: P00DF-00 (2 Of 2)
G00618669Courtesy of HYUNDAI MOTOR AMERICA
