Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

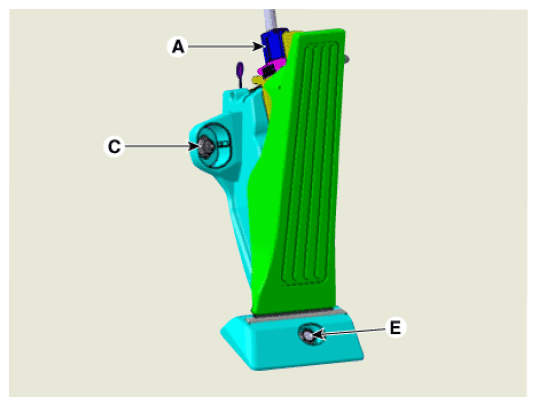

- Disconnector the accelator position sensor connector (A).

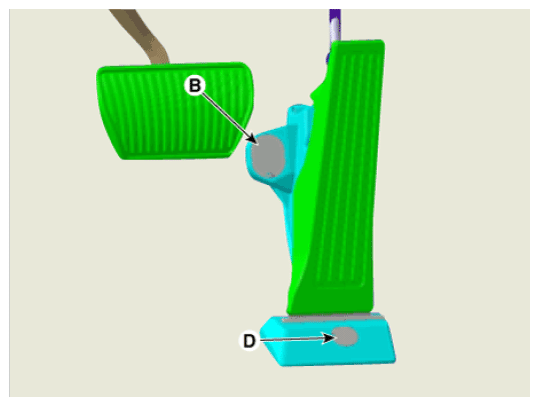

- Remove the upper mounting cap (B) and loosen the mounting nut (C).
- Remove the lower mounting cap (D) and loosen the mounting bolt (E).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- Install in the reverse order of removal.
