Engine Coolant Temperature Sensor (ECTS) - Integrated Flow Control Valve Side

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the RH air duct and RH air intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")

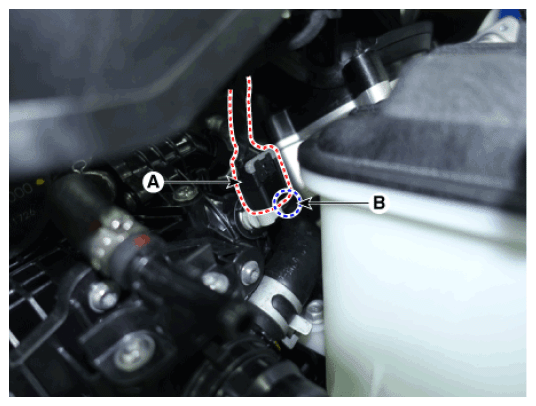

Disconnect the engine coolant temperature sensor connector (A).
After removing the installation bolts (B), remove the engine coolant temperature sensor.
NOTE:
- Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.

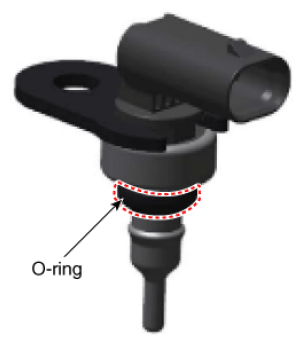

- Check if O-ring remains inside the engine coolant temperature sensor when removing the ECTS. (It is necessary to remove the O-ring)
Courtesy of HYUNDAI MOTOR AMERICA

Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
