Fuel Line: Installation

Install in the reverse order of removal.

NOTE:

Use the SST (09314-L110) and spanner torque wrench (27 mm) to install the high pressure fuel pipe flange nut (A).

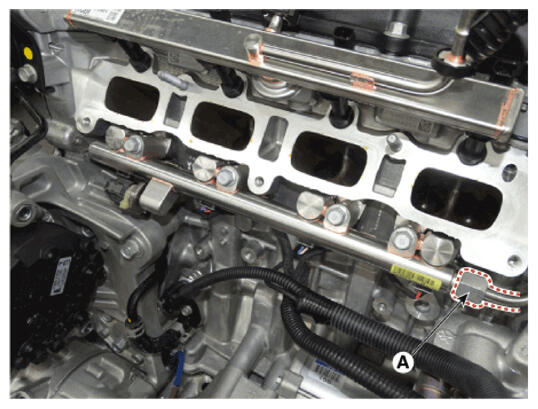

G16847184

Courtesy of HYUNDAI MOTOR AMERICA

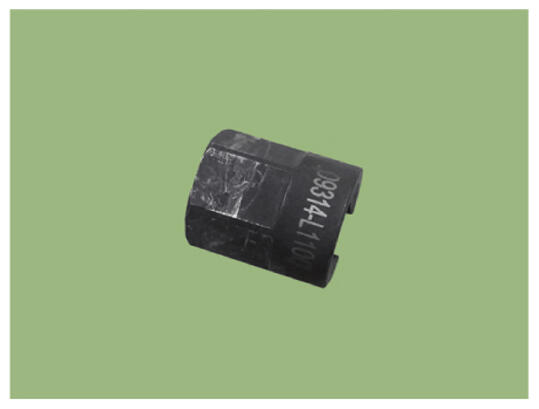

G16847185

Courtesy of HYUNDAI MOTOR AMERICA

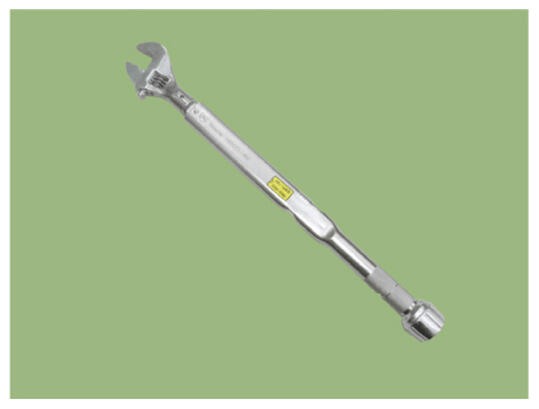

G16847186

Courtesy of HYUNDAI MOTOR AMERICA

Do not reuse the high pressure fuel pipe.
Be careful not to transform the shape of the high pressure fuel pipe.
Torque wrench should not be tilt when you tighten the nut.
Follow the order and the tightening torque when you assemble.
Inspect fuel leakage after high pressure fuel pipe assembly.
