Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

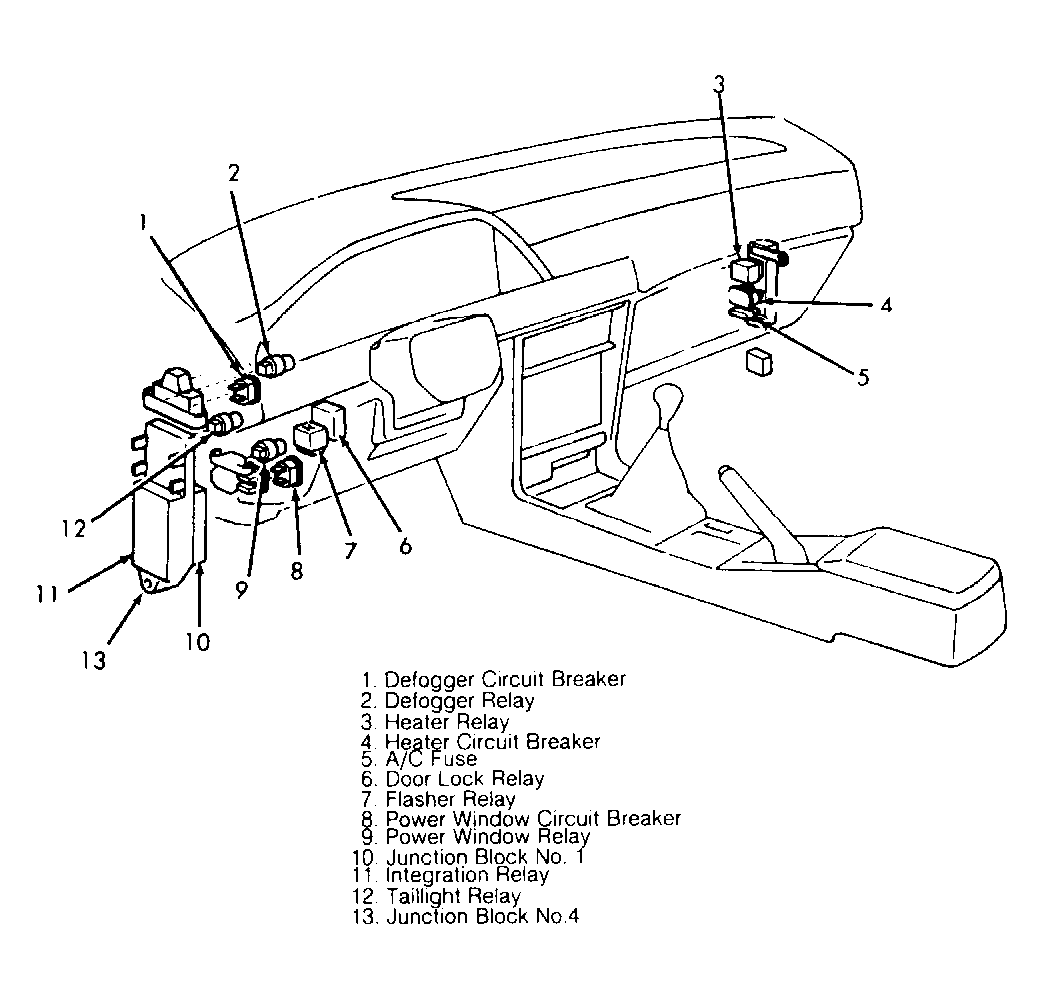

| A/C Fuse | On junction block No. 4. See Figure . | |
| Blower Resistor | Behind glove box. | |
| Defogger Circuit Breaker | On junction block 1. See Figure . | |
| ECM/Ignition Fuse | On junction block No. 1. | |
| Fuse/Relay Junction Blocks | ||
| No. 1 | Behind driver's side kick panel. See Figure . | |
| No. 2 | In engine compartment, in front of left wheelwell. | |
| No. 3 | Behind instrument cluster, on column brace. | |
| No. 4 | Behind passenger's side kick panel. See Figure . | |
| No. 5 | In engine compartment, to left of battery. | |
| Fusible Link Box | At positive battery cable. | |
| Heater Circuit Breaker | On junction block No. 4. See Figure . | |
| Power Window Circuit Breaker | On junction block No. 1. See Figure . | |
