Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Amplifier | Behind glove box. |
| Audio Alarm Module | On junction block No. 1. |
| Cruise Control Module | Behind right kick panel, under right of dash. |

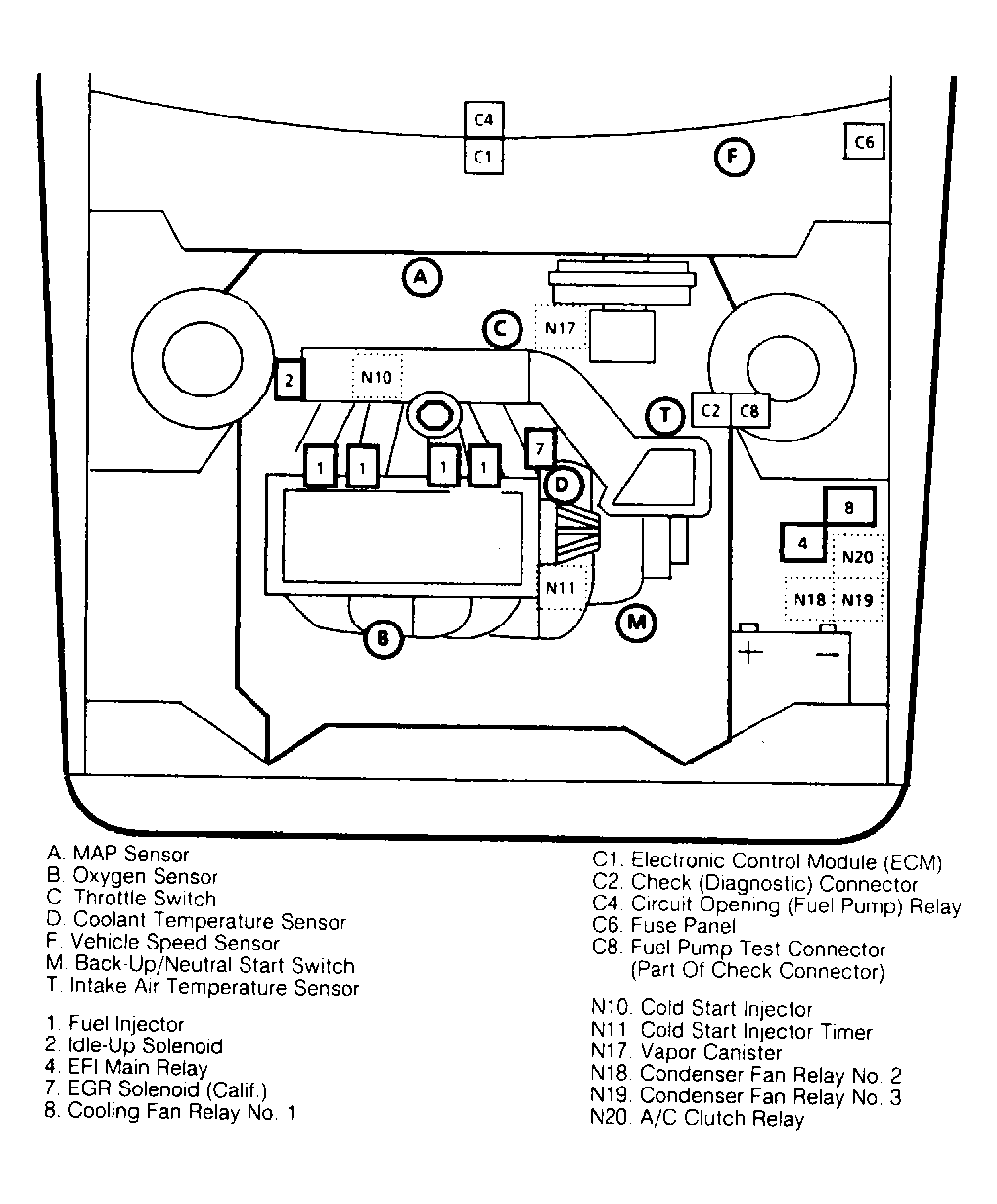

| Electronic Control Module (ECM) | At center of dash, behind radio. See Figure . |
