Home >> Geo >> 1989 >> Spectrum L4-91.5 1.5L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fast Idle Controller Diaphragm

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Fast Idle Controller Diaphragm

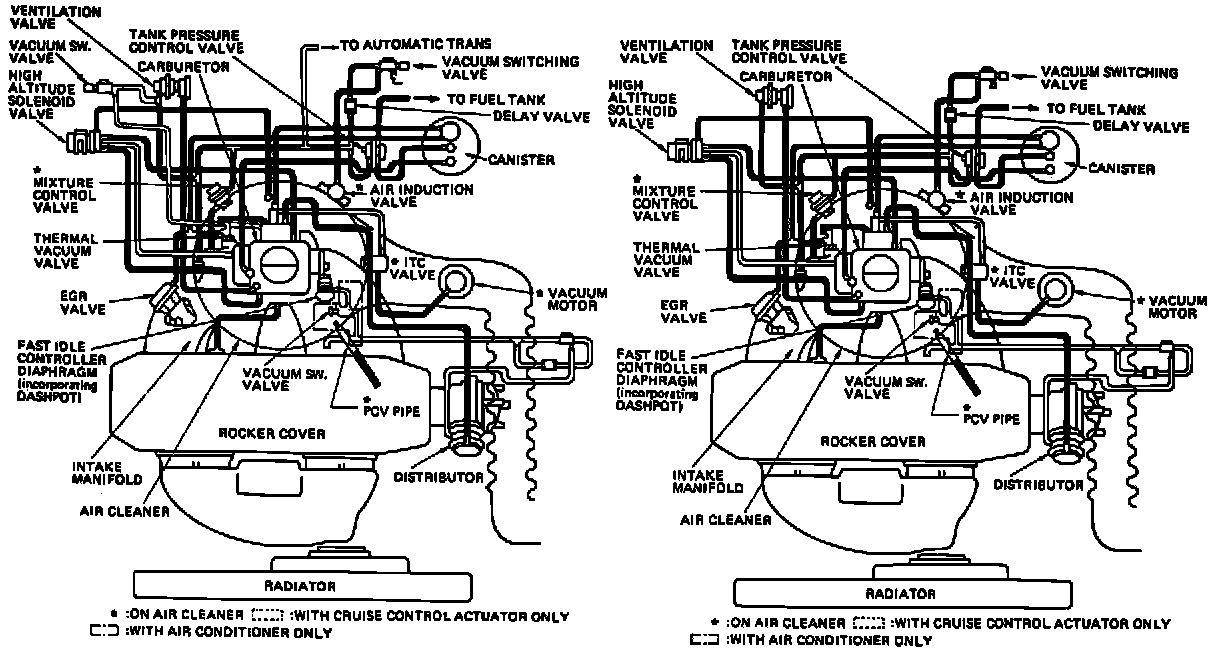

Engine Emission Control Components:

Rear LH Side Of Engine

Applicable to: Spectrum
