ECM Terminal End - Revised View

9218chevy08

Number: 90-275-6E

Section: 6E

Date: June 1990

Corporate Bulletin No.: 016521


Subject:
DRIVEABILITY AND EMISSIONS REVISED TERMINAL END VIEW


Model and Year:
1989-90 GEO METRO WITH 1.0L (VIN CODE 6) ENGINE


TO: ALL CHEVROLET DEALERS

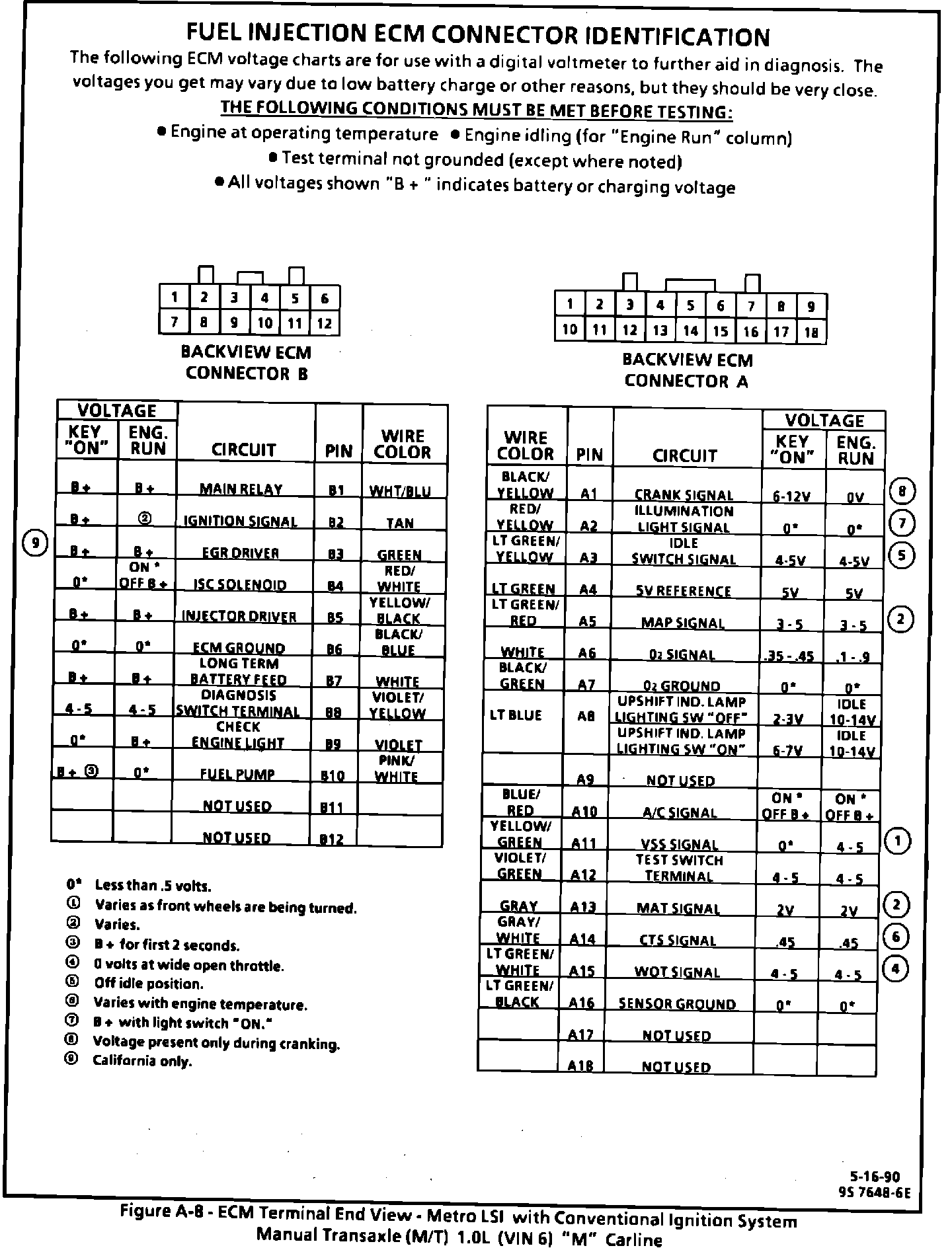

This bulletin serves to revise page 6E2-A9 "ECM Terminal End View" in Section 6E2 "Driveability And Emissions" in the 1989 and 1990 Geo Metro 1.0L (VIN 6) "M" carline (TBI) Service Manual.

The ECM pin-out omits ECM terminal "B2" ignition signal.
