EPI Main Relay - Electrical Diagnosis Manual Correction
90Chevy35Number: 90-370-8A
Section: 8A
Date: October 1990
Corp. Bulletin No.: 038137R
Subject: ELECTRICAL DIAGNOSIS
Model and Year: 1990 GEO METRO
TO: ALL CHEVROLET DEALERS

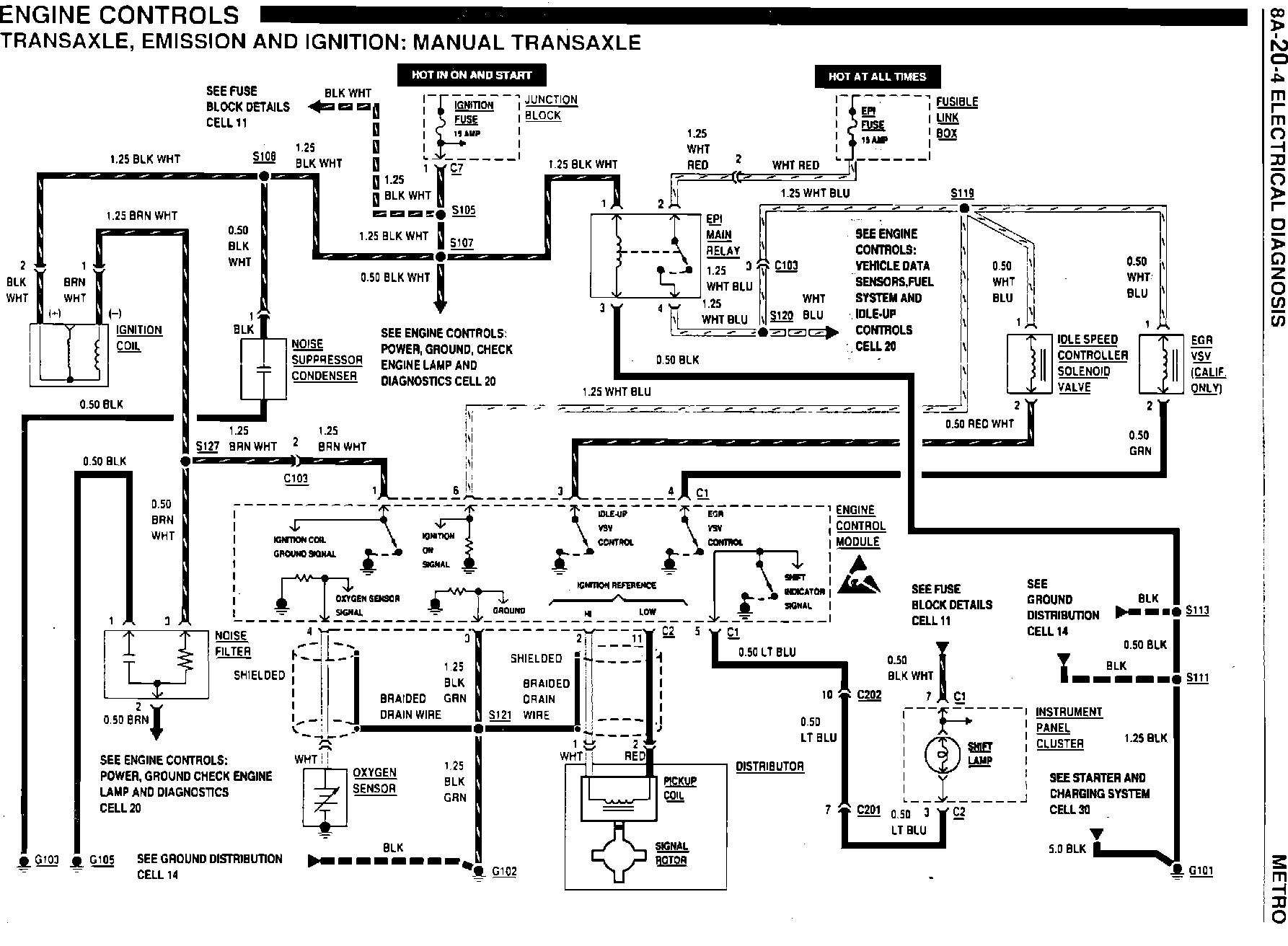

The following schematic page corrects terminal 3 and 4 of the EPI Main Relay and replaces page 8A-20-4 of the 1990 GEO Metro Electrical Diagnosis Service Manual Supplement (ST370-90EDM).
