Diagnostic Aids

An intermittent may be caused by rubbed through insulation or a wire broken inside the wire insulation. Check ECM harness connectors for backed out terminals or damaged terminals. If code is intermittent, see TESTS W/O CODES article.

Fig 1: Code 24 Circuit Diagram
G90D15795

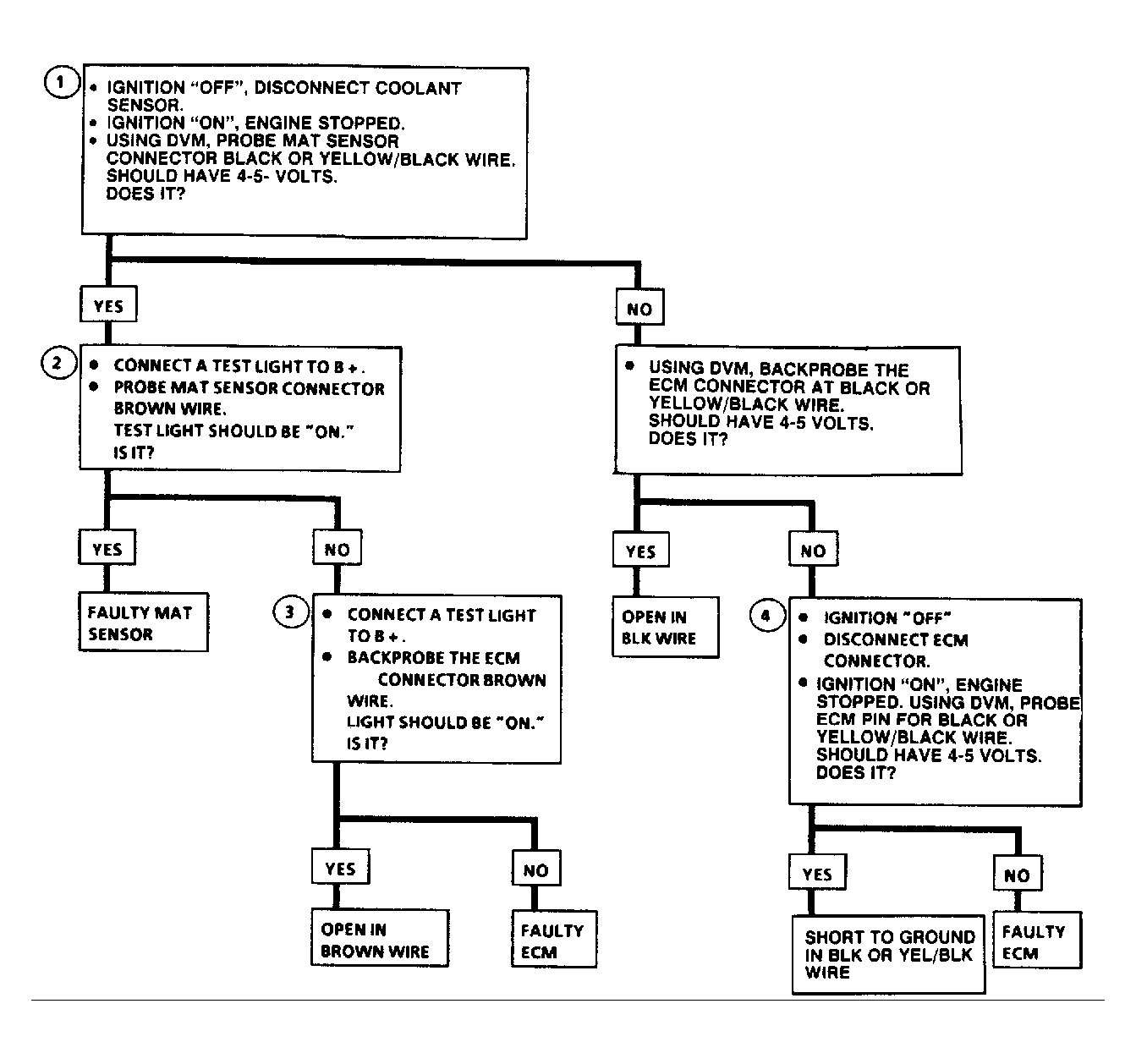

Fig 2: Code 24 Flow Chart
G90E15796
