Diagnostic Circuit Check
>>
Code 52, Knock Sensor Signal Open Or Shorted Circuit VIN 5)
>>
Diagnostic Aids
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Aids
If code is intermittent, see TESTS W/O CODES article.
Fig 1: Code 52 Circuit Diagram

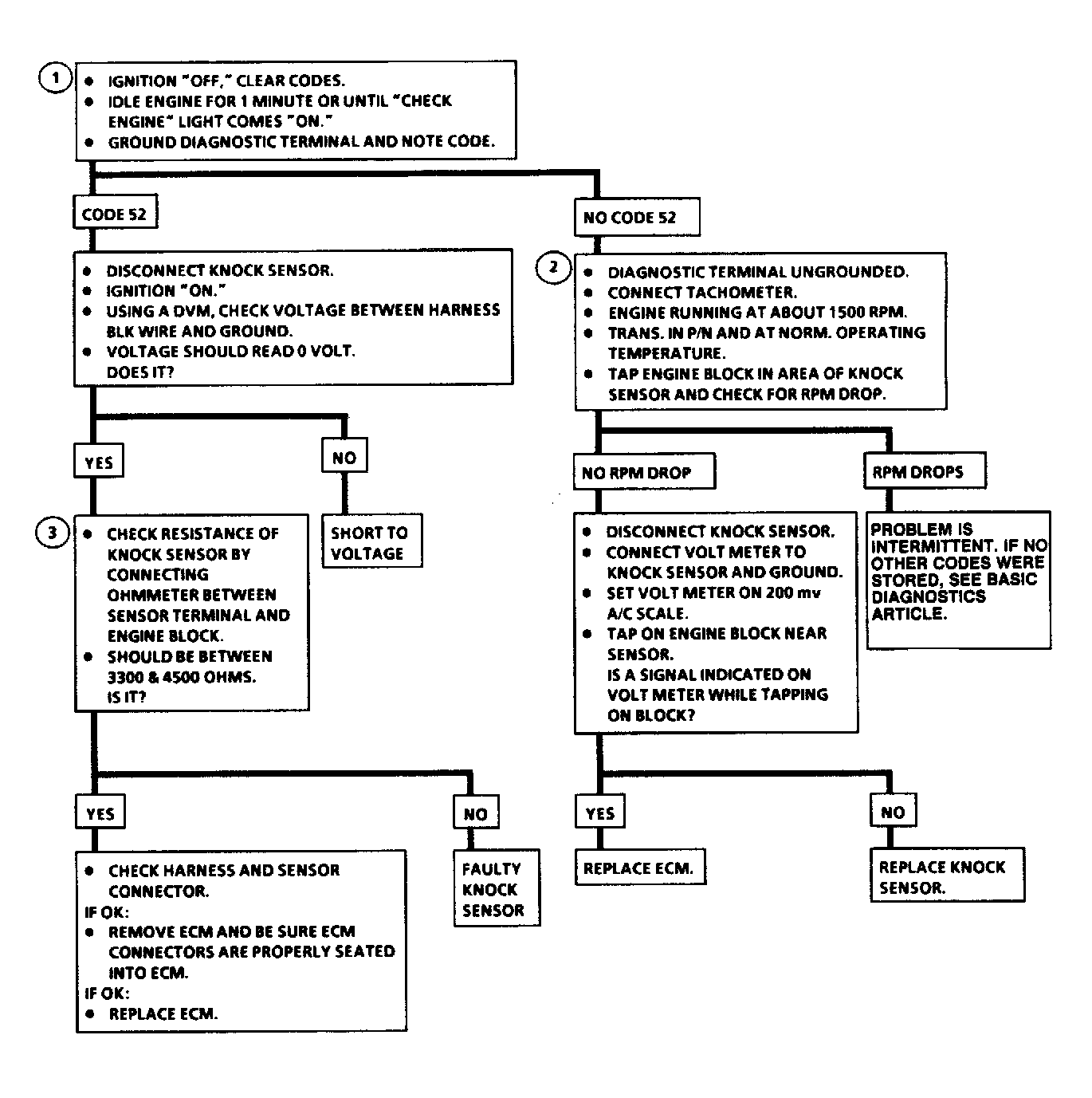

Fig 2: Code 52 Flow Chart
