Pick-Up Coil

Measure pick-up coil resistance between terminals No. 2 and No. 3. See Fig 1 . If resistance is not within specification, replace distributor. See PICK-UP COIL RESISTANCE table.
Measure second pick-up coil resistance between terminals No. 1 and No. 3. See Fig 1 . If resistance is not within specification, replace distributor. See PICK-UP COIL RESISTANCE table.
If resistances are within specification, check pick-up coil air gaps and adjust as necessary. Replace distributor if air gap specification cannot be obtained. See PICK-UP COIL AIR GAP table.

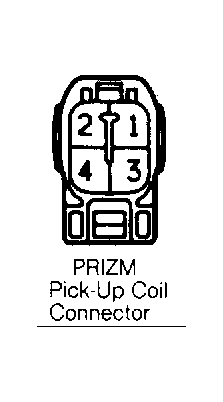

Fig 1: Identifying Pick-Up Coil Connector Terminals

Courtesy of GENERAL MOTORS CORP.

PICK-UP COIL AIR GAP ⁽¹⁾

Application

Clearance In. (mm)

All Models

.008-.016 (.20-.40)

⁽¹⁾	Same as crank angle sensor air gap.

PICK-UP COIL RESISTANCE - Ohms @ 68°F (20°C)

Application	Ohms
Prizm	140-180
