Pick-Up Coil

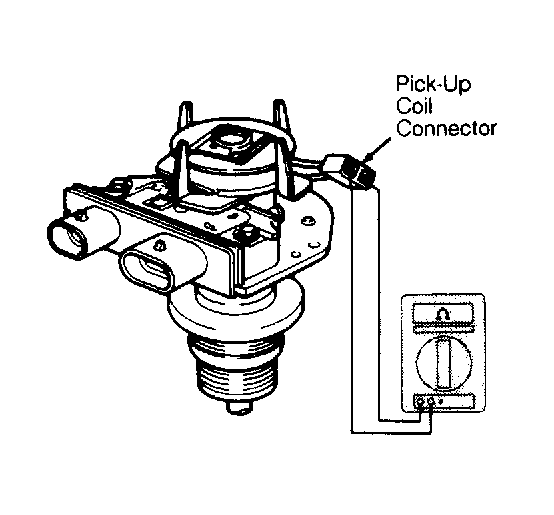

  1. Remove distributor cap and rotor. Unplug pick-up coil connector from distributor module. Measure resistance between terminals. See Figure . Replace pick-up coil if resistance is not as specified in PICK-UP COIL RESISTANCE table.
  2. If resistance is within specification, check pick-up coil air gap and adjust as necessary. See PICK-UP COIL AIR GAP table. Replace distributor if air gap specification cannot be obtained.
PICK-UP COIL AIR GAP (1)

Application Clearance In. (mm)
All Models .008-.016 (.20-.40)
(1) Same as crank angle sensor air gap.
PICK-UP COIL RESISTANCE - Ohms @ 68°F (20°C)

Application Ohms
Storm 500-1500
