Electronic Control Module (ECM)

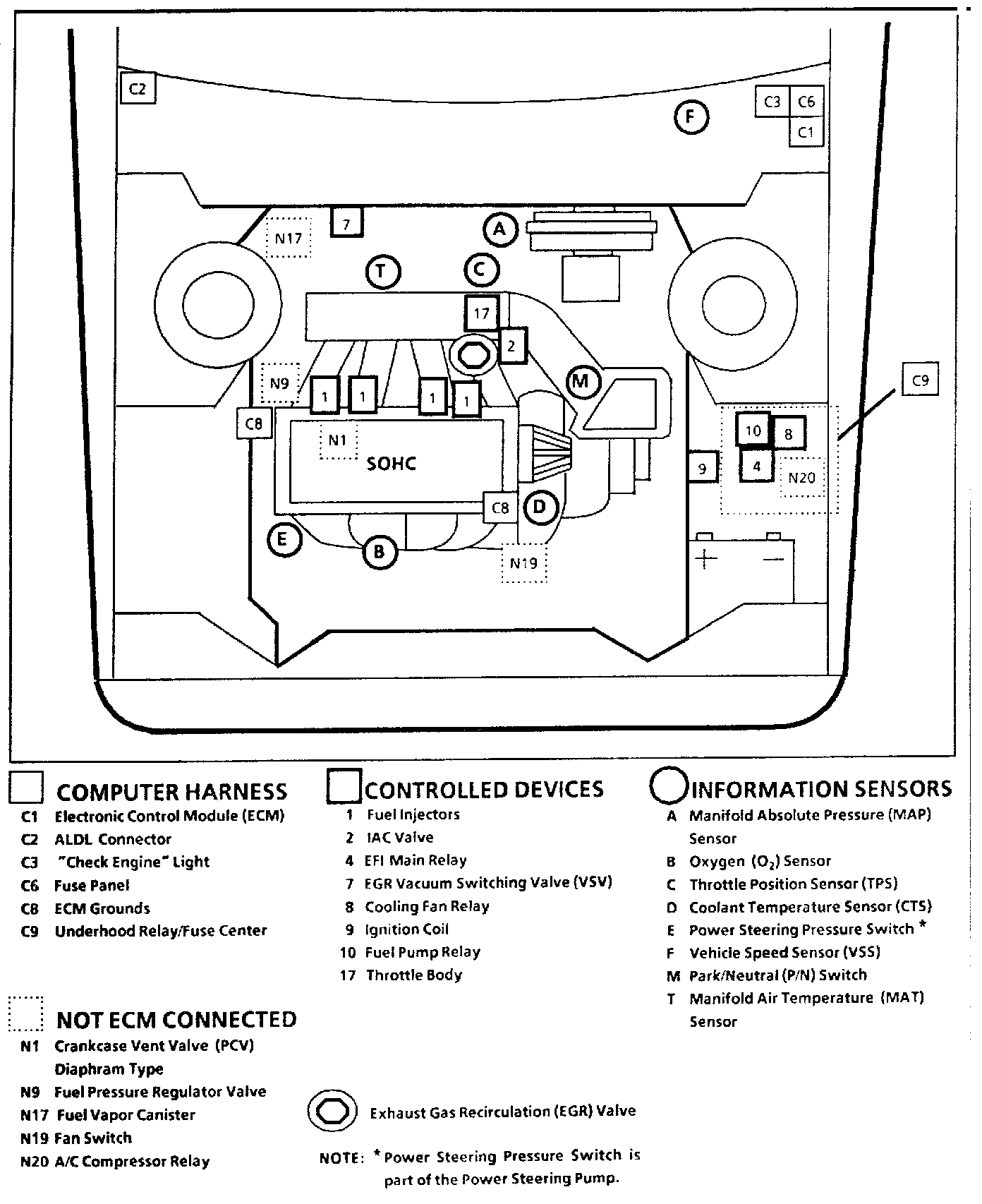

Engine Compartment Component Locations.:




Behind LH Kick Panel

Applicable to: Storm
