Stator Test

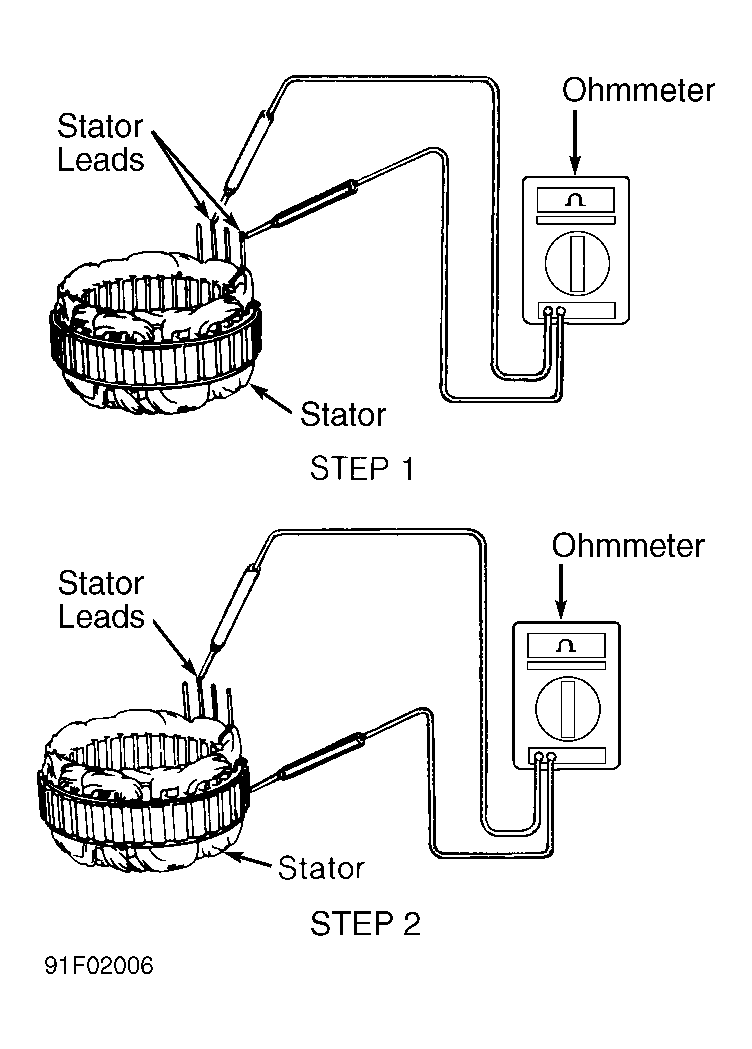

- Using an ohmmeter, check stator leads for continuity. Perform STEP 1. See Fig 1. If continuity DOES NOT exist between stator leads, replace stator.
- Using an ohmmeter, check for continuity between stator leads and stator core. Perform STEP 2. See Figure. If continuity exists, replace stator.
Courtesy of GENERAL MOTORS CORP.
