Solenoid Pull-In Coil Test

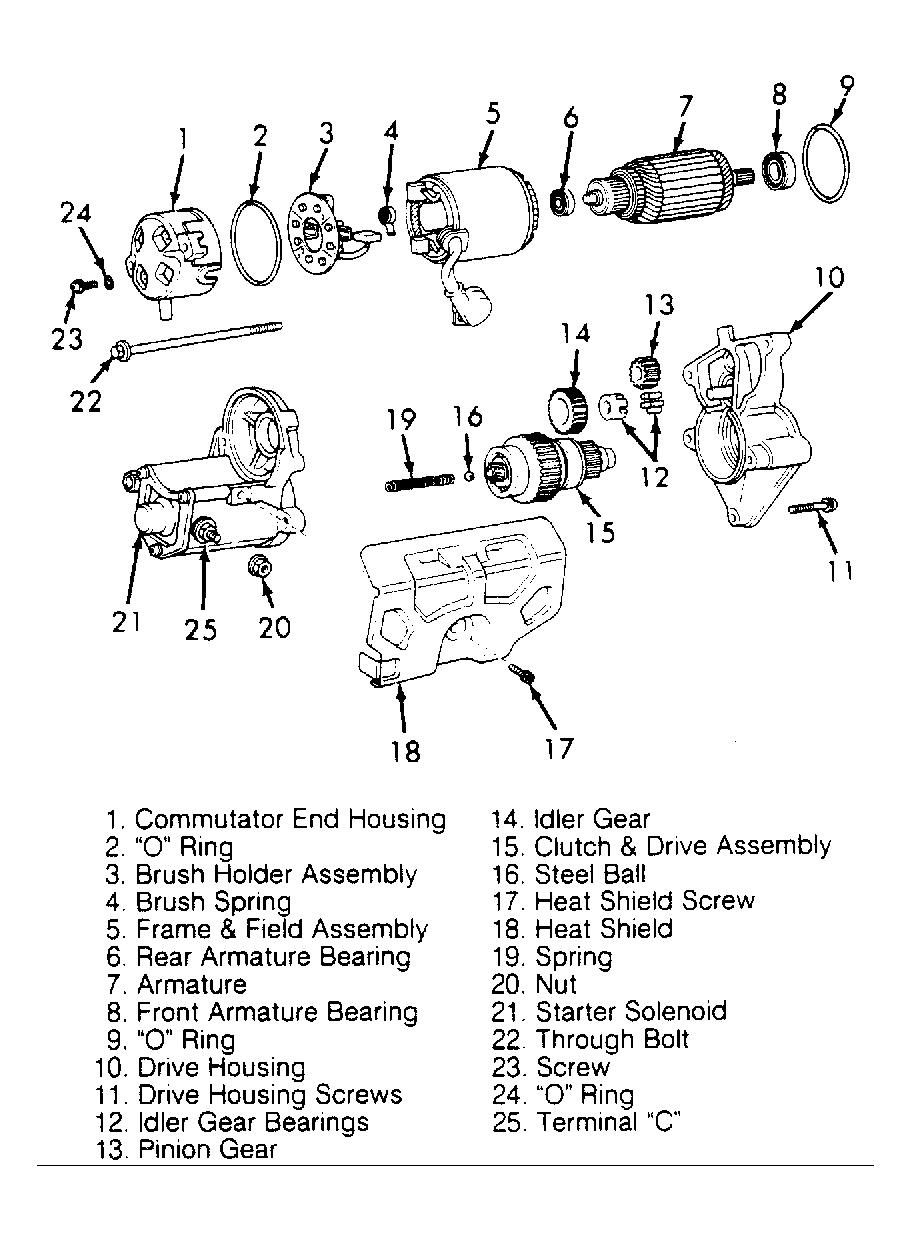

  1. Disconnect field lead from solenoid field lead terminal. See Figure. Ensure field lead does not touch starter housing. Connect negative lead of 12-volt battery to solenoid field lead terminal (terminal "C" on Prizm). See Figure for terminal "C" location.
  2. Connect another negative battery lead to the starter drive housing. Connect positive battery lead to solenoid ST terminal (terminal No. 50 on Prizm). See Figure.
  3. Pinion gear should extend quickly and completely when solenoid is energized. If pinion gear does not operate as indicated, replace solenoid.
