Diagnostic Circuit Check

Diagnostic circuit check is starting point for identifying a problem caused by engine control system. ECM uses CHECK ENGINE light to flash fault codes. Lowest code number will be flashed first. If no codes were stored, see TESTS W/O CODES article in this section.

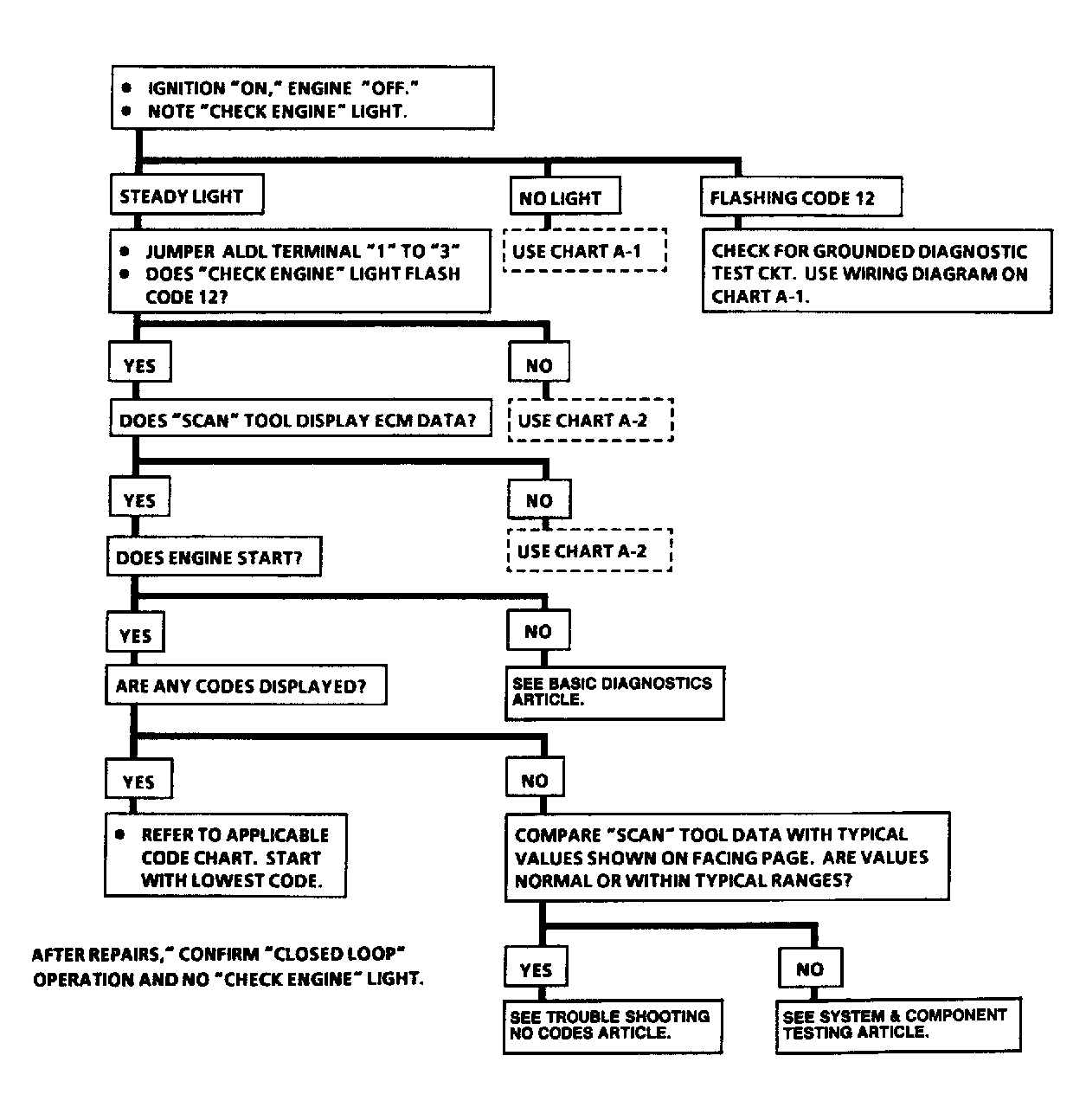

Fig 1: Diagnostic Circuit Check Flow Chart
