Diagnostic Aids

A misadjusted TPS could cause Code 44 to set. Before replacing TPS, check TPS adjustment. Refer to ADJUSTMENTS article in this section.

Fig 1: Code 44 Schematic, Idle Switch Circuit Open Circuit Or Misadjusted TPS

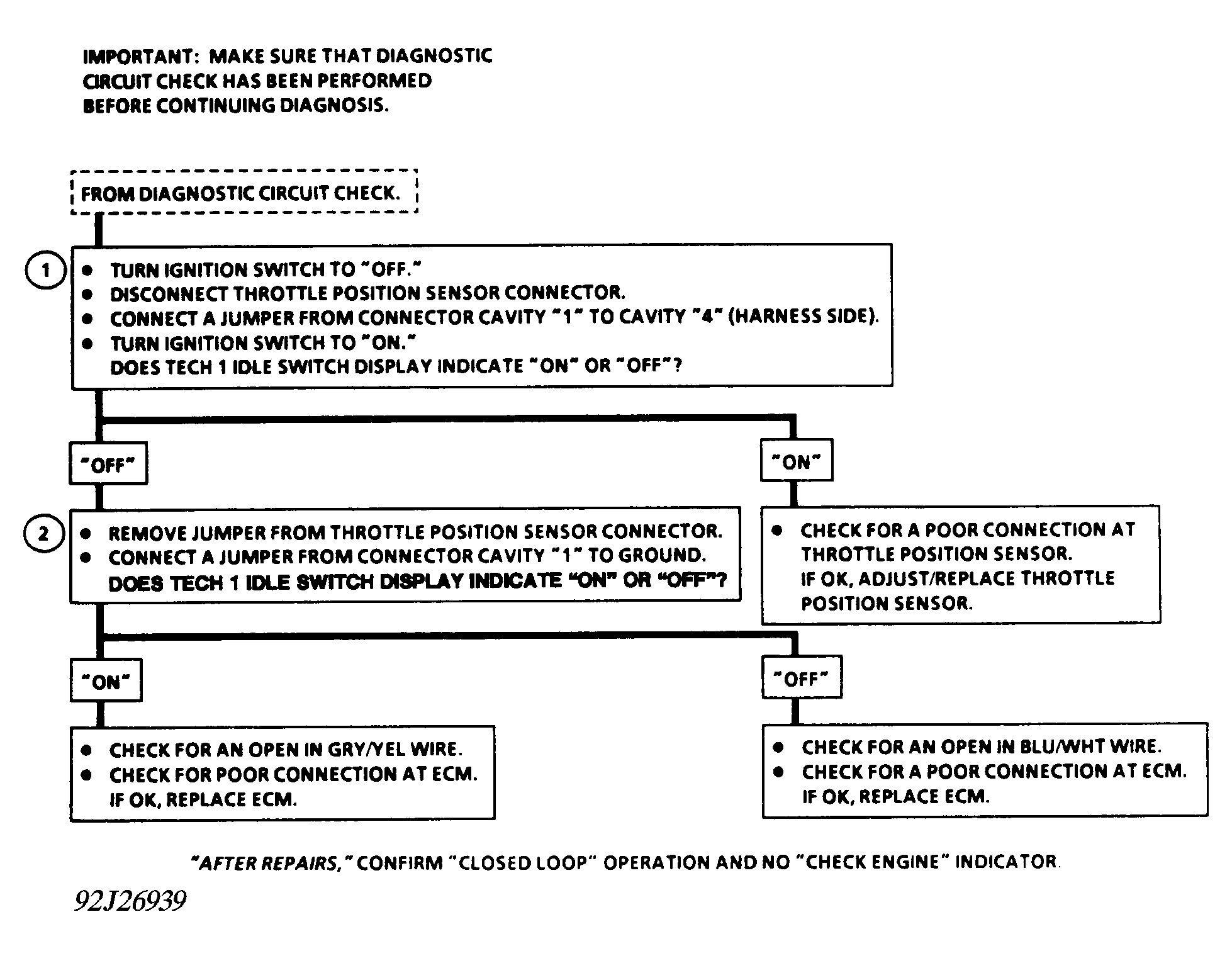

Fig 2: Code 44 Flow Chart, Idle Switch Circuit Open Circuit Or Misadjusted TPS
