Diagnostic Aids

Visually inspect wiring and connectors if intermittent problem exists.

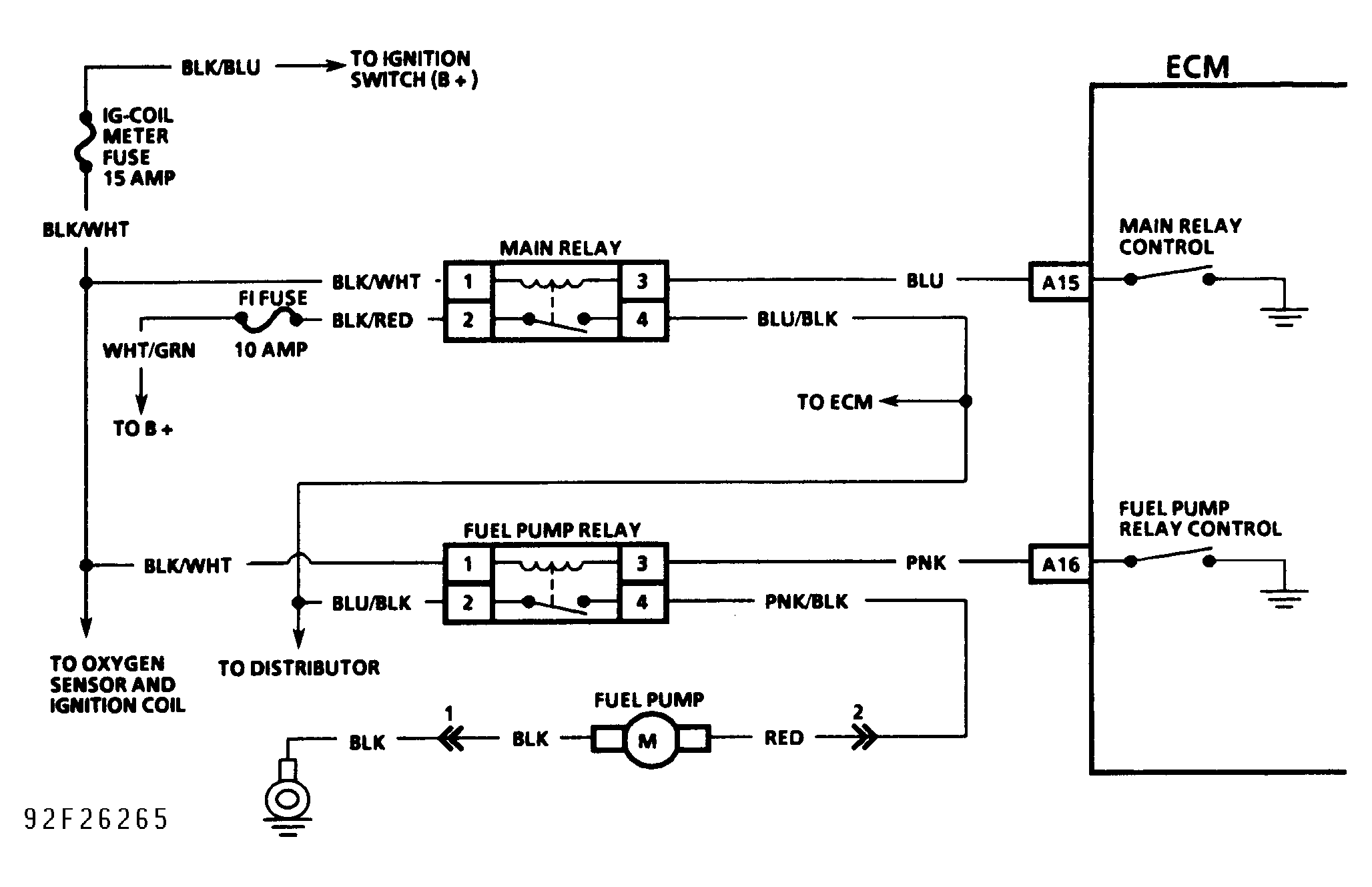

Fig 1: Chart A-7A Schematic - Fuel System Diagnosis - Fuel Pump Relay Check

Courtesy of GENERAL MOTORS CORP.

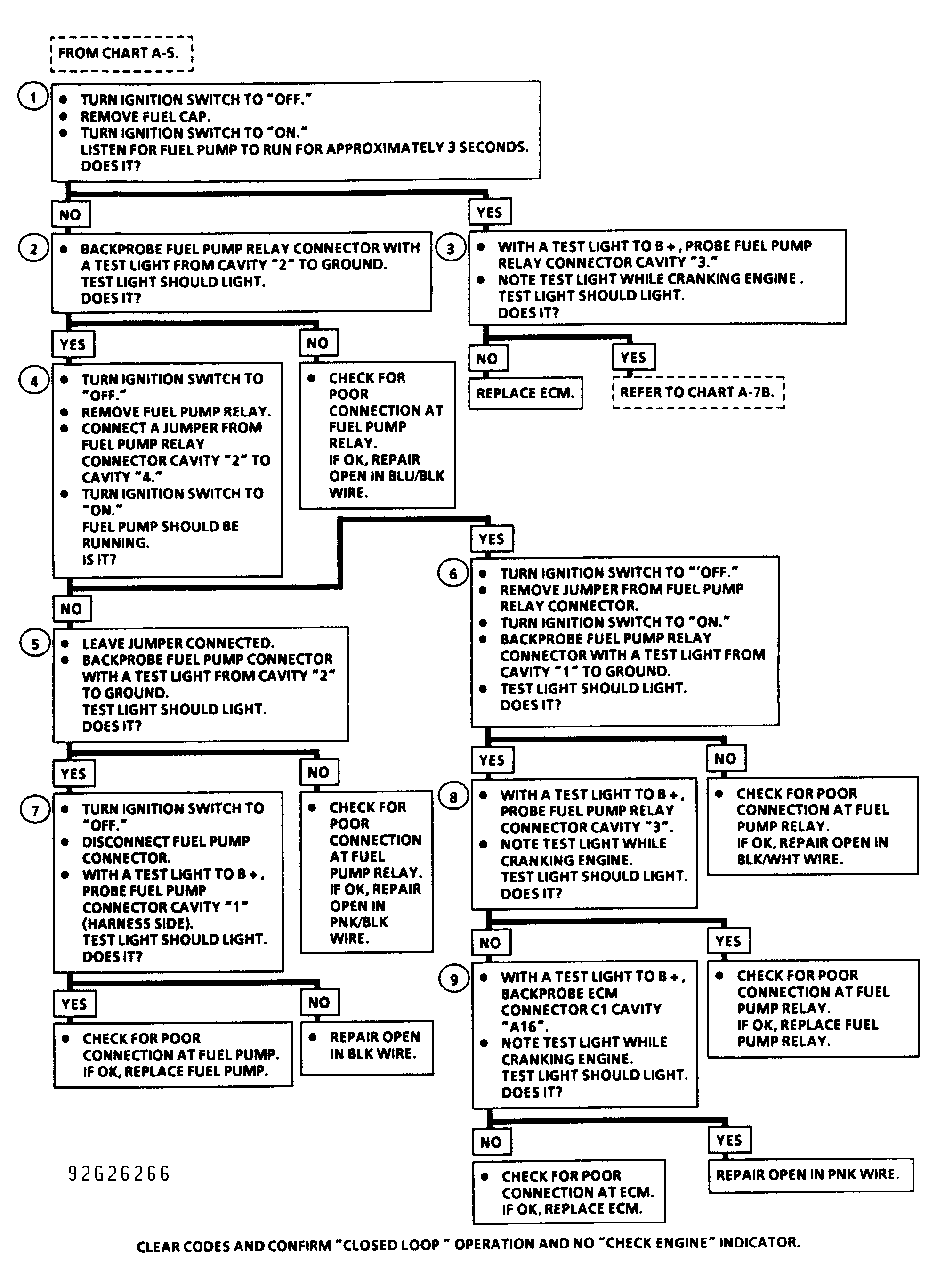

Fig 2: Chart A-7A Flow Chart - Fuel System Diagnosis - Fuel Pump Relay Check

Courtesy of GENERAL MOTORS CORP.
