Cranking Test

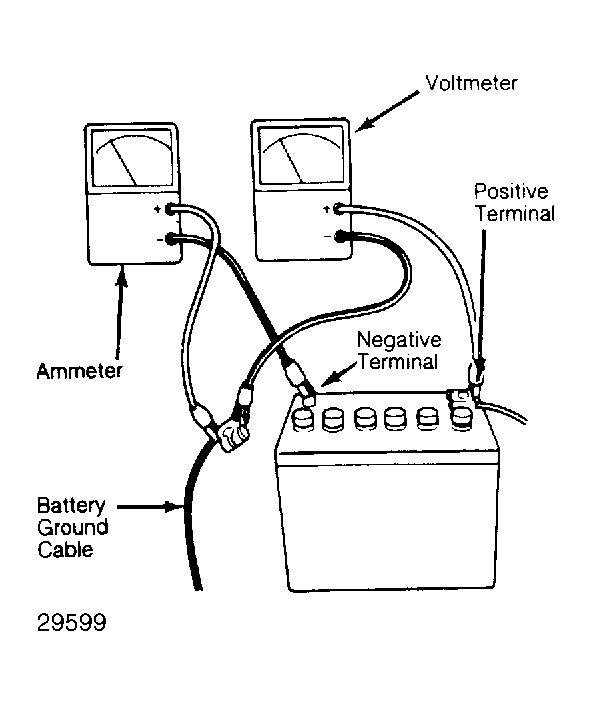

- Connect voltmeter and ammeter to battery. See Fig 1. Ensure battery is
fully charged. Disconnect ignition coil secondary wire from
distributor cap, and attach it to ground. Crank engine, and observe
meters.
- Ensure cranking voltage more than 9.5 volts and current draw is
less than 230 amps. If readings are not as specified, repair or
replace starter.
Courtesy of GENERAL MOTORS CORP.
