Home
>>
Geo
>>
1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
With Upgraded Emissions
>>
Connector C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector C2

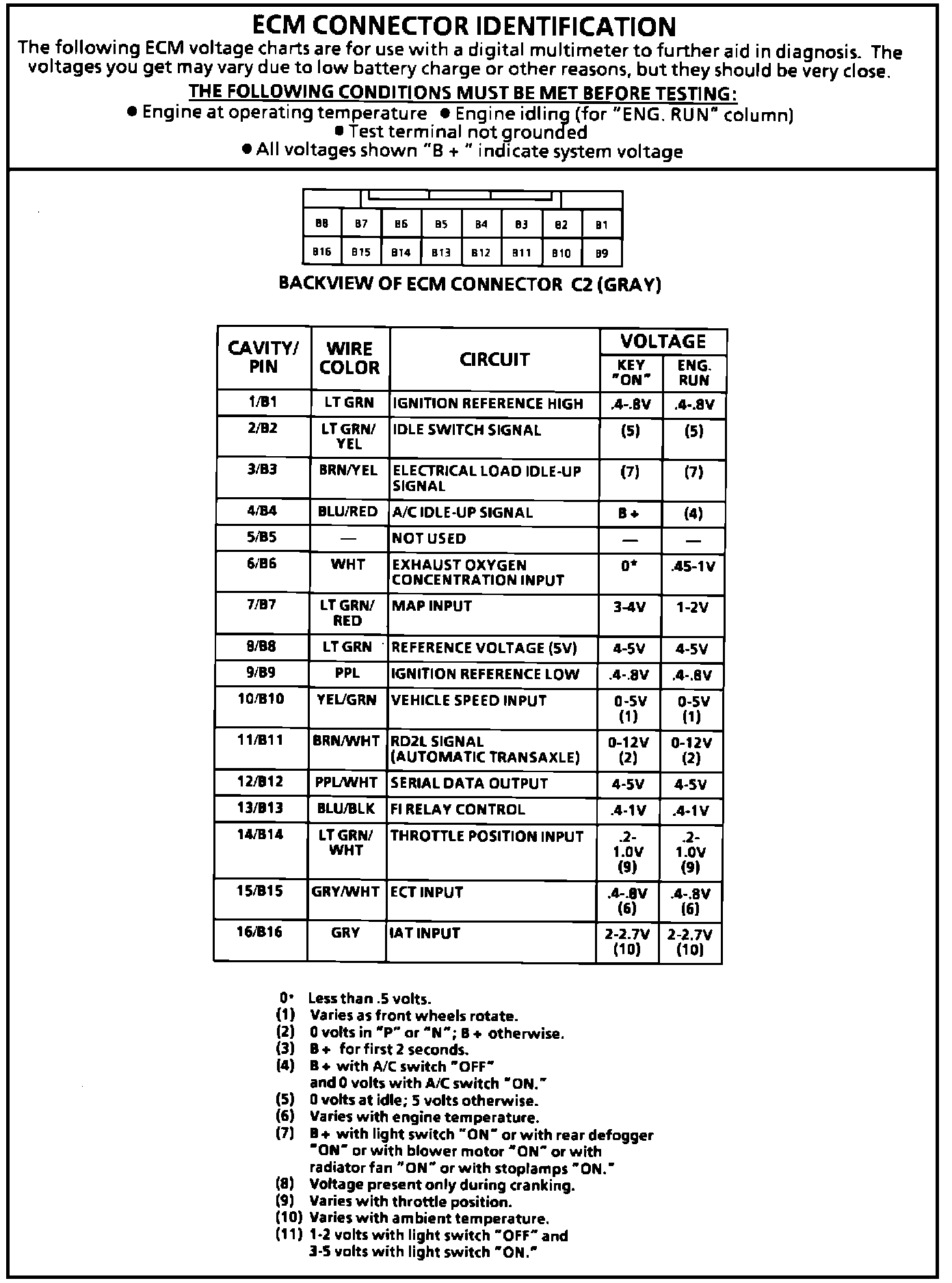

ECM Connector With Upgraded Emissions:
