With Standard Emissions

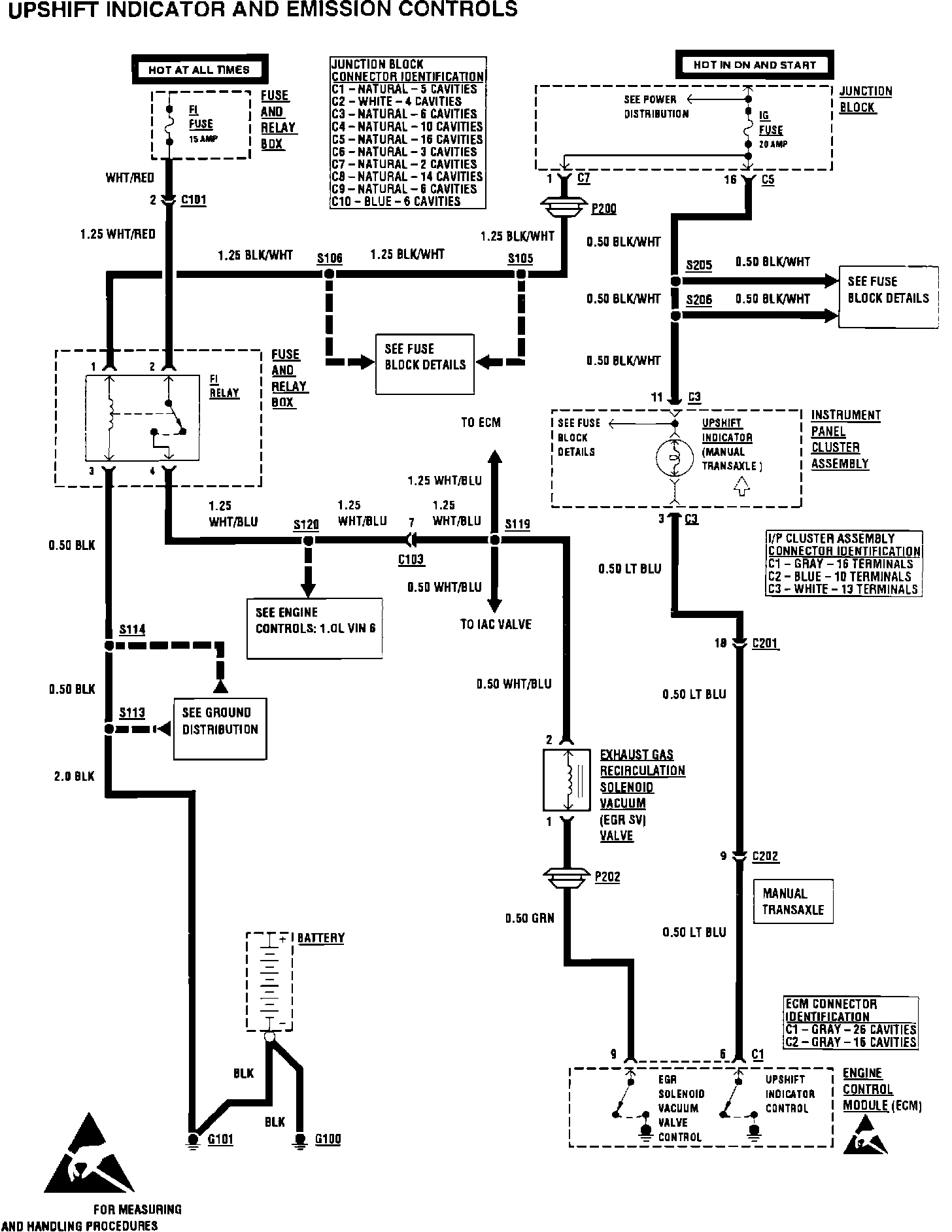

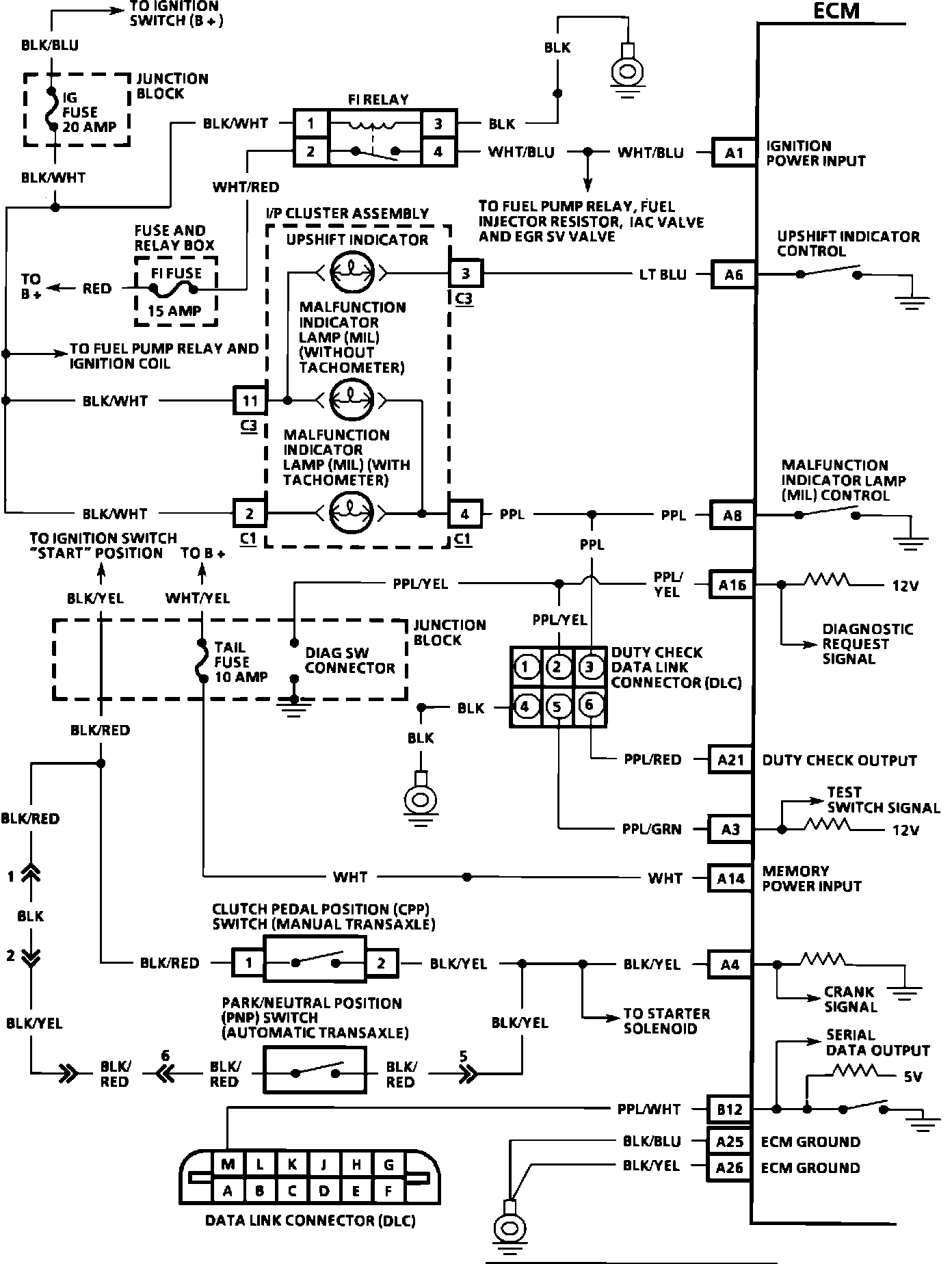

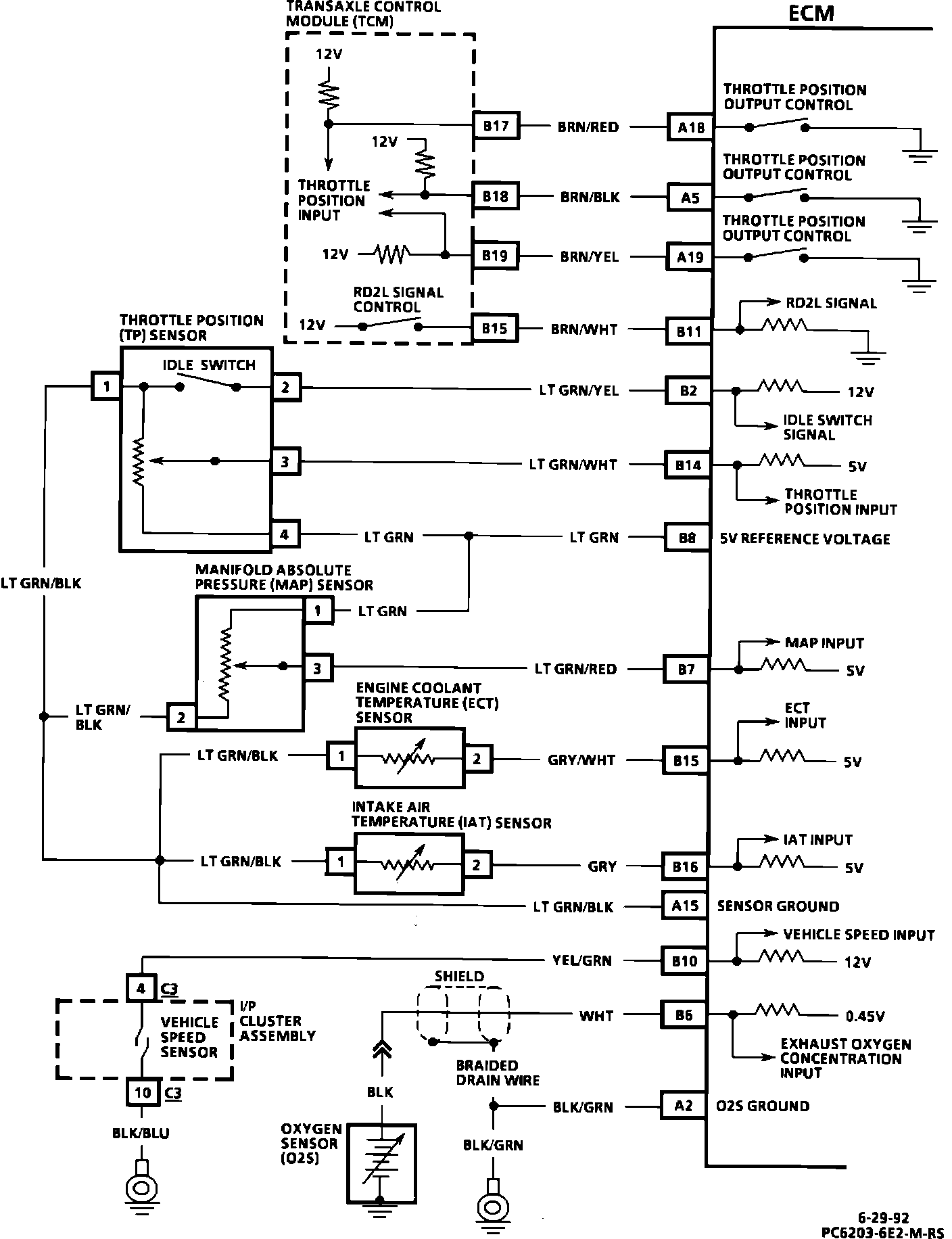

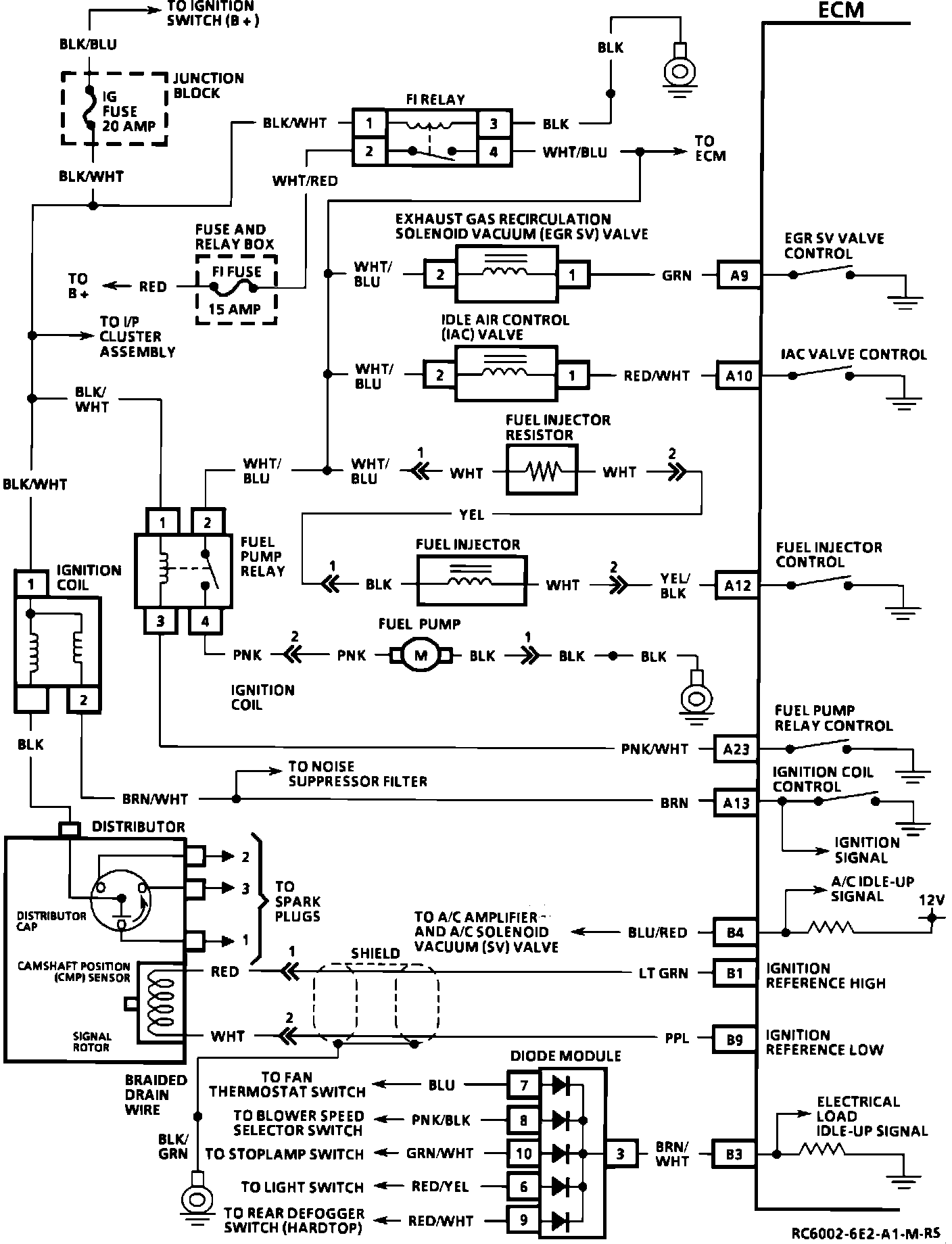

ECM Wiring 94 Metro W/ Std Emissions:

ECM Wiring 94 Metro W/ Std Emissions:

ECM Wiring 94 Metro W/ Std Emissions:

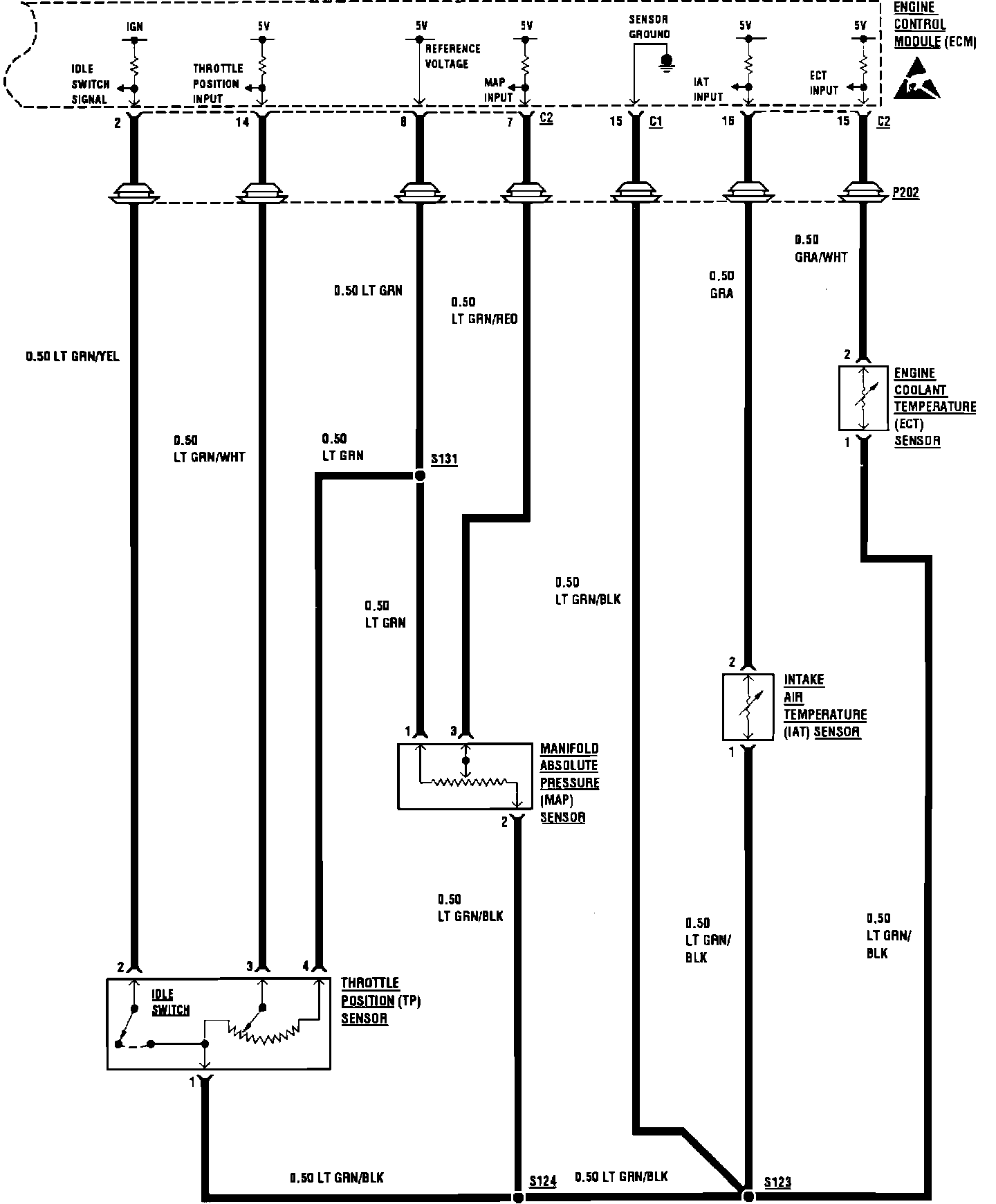

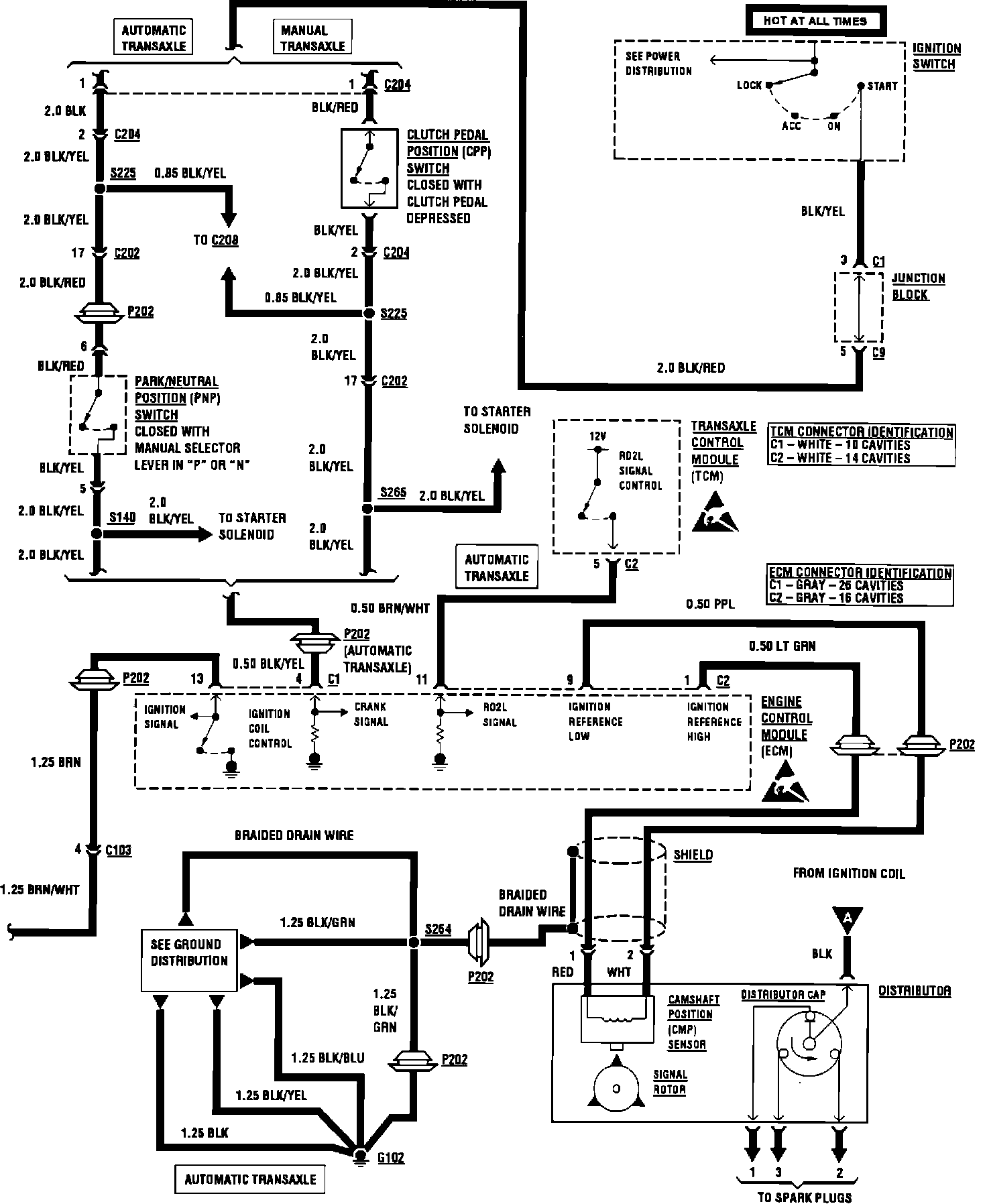

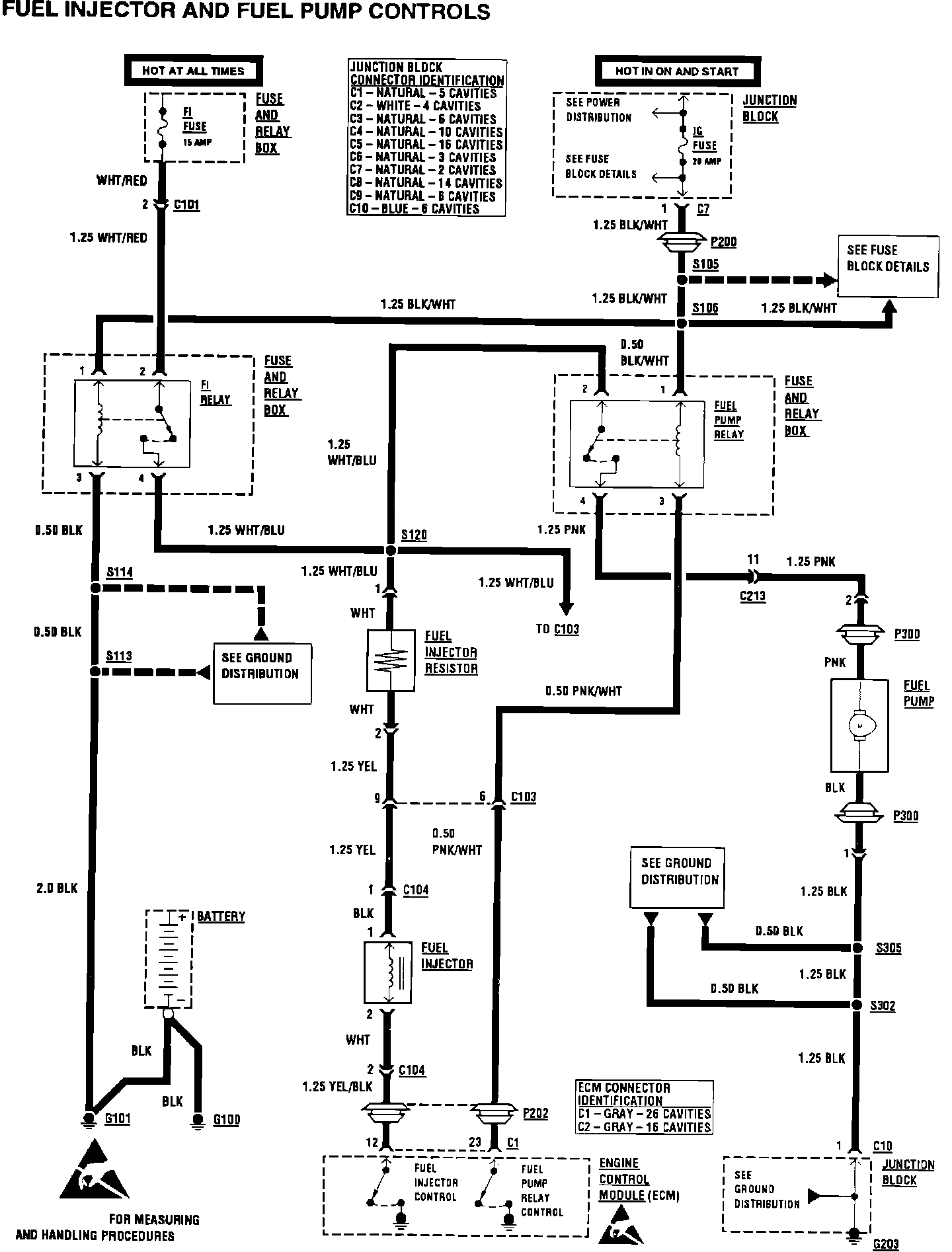

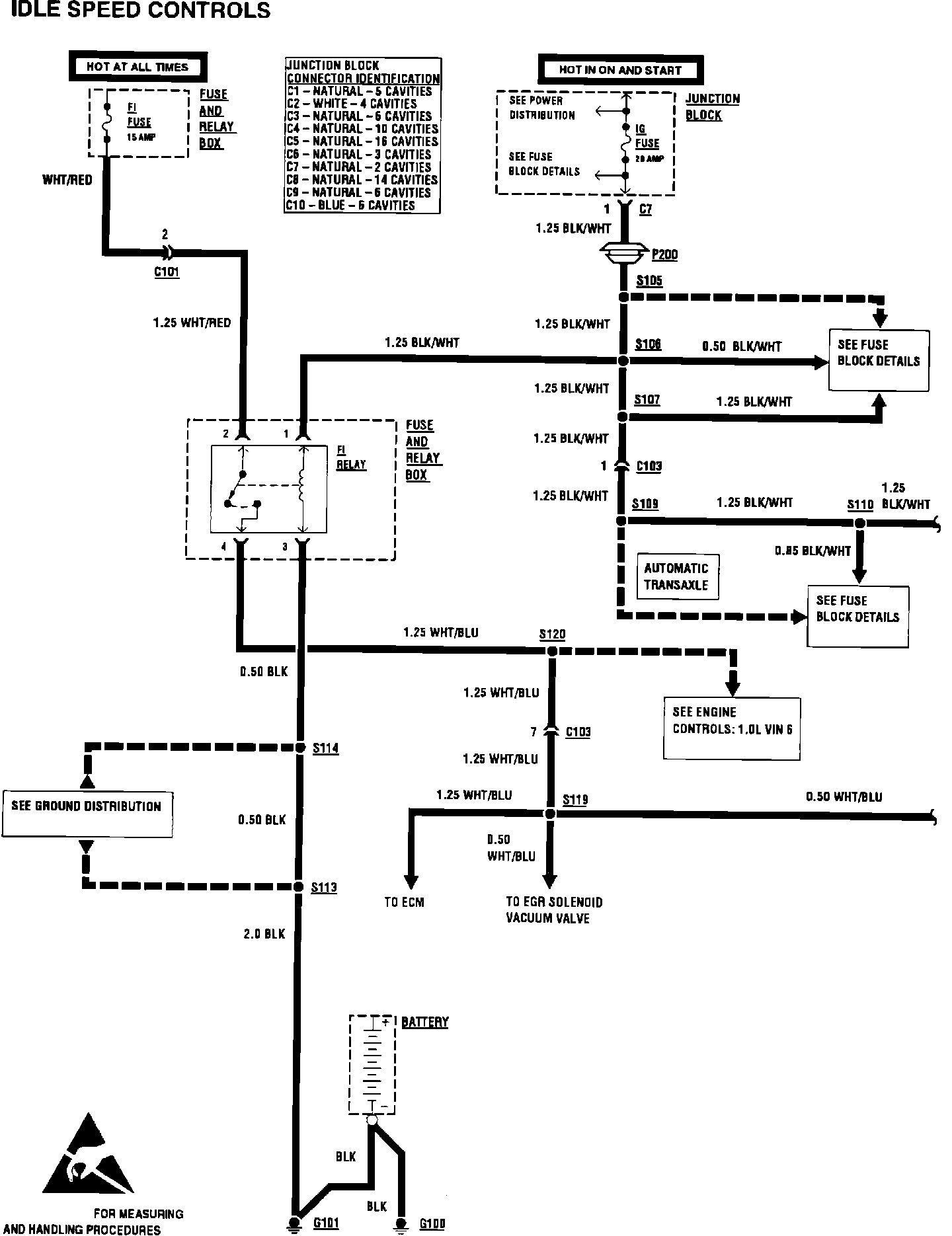

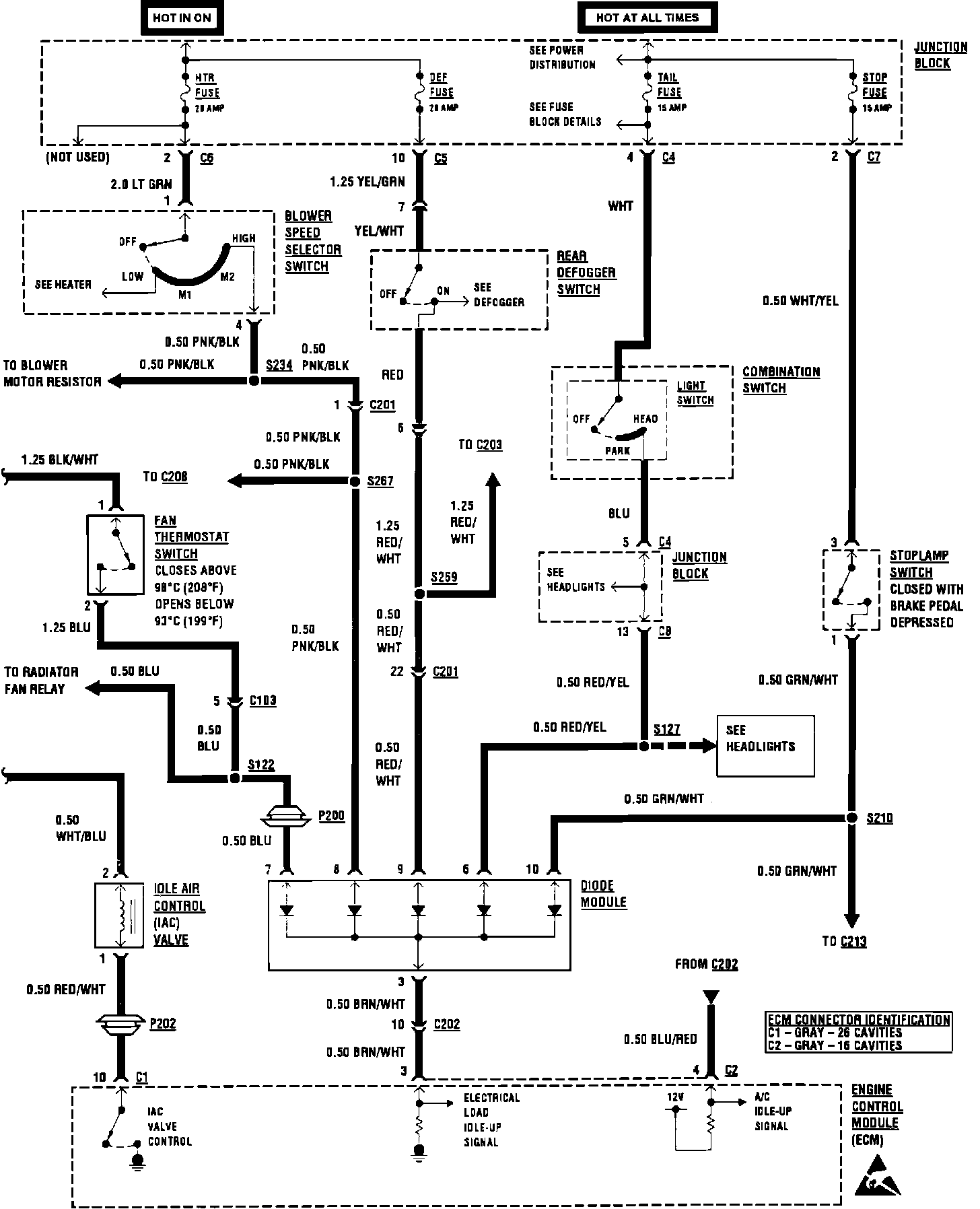

Engine Wiring Diagrams W/ Standard Emissions:

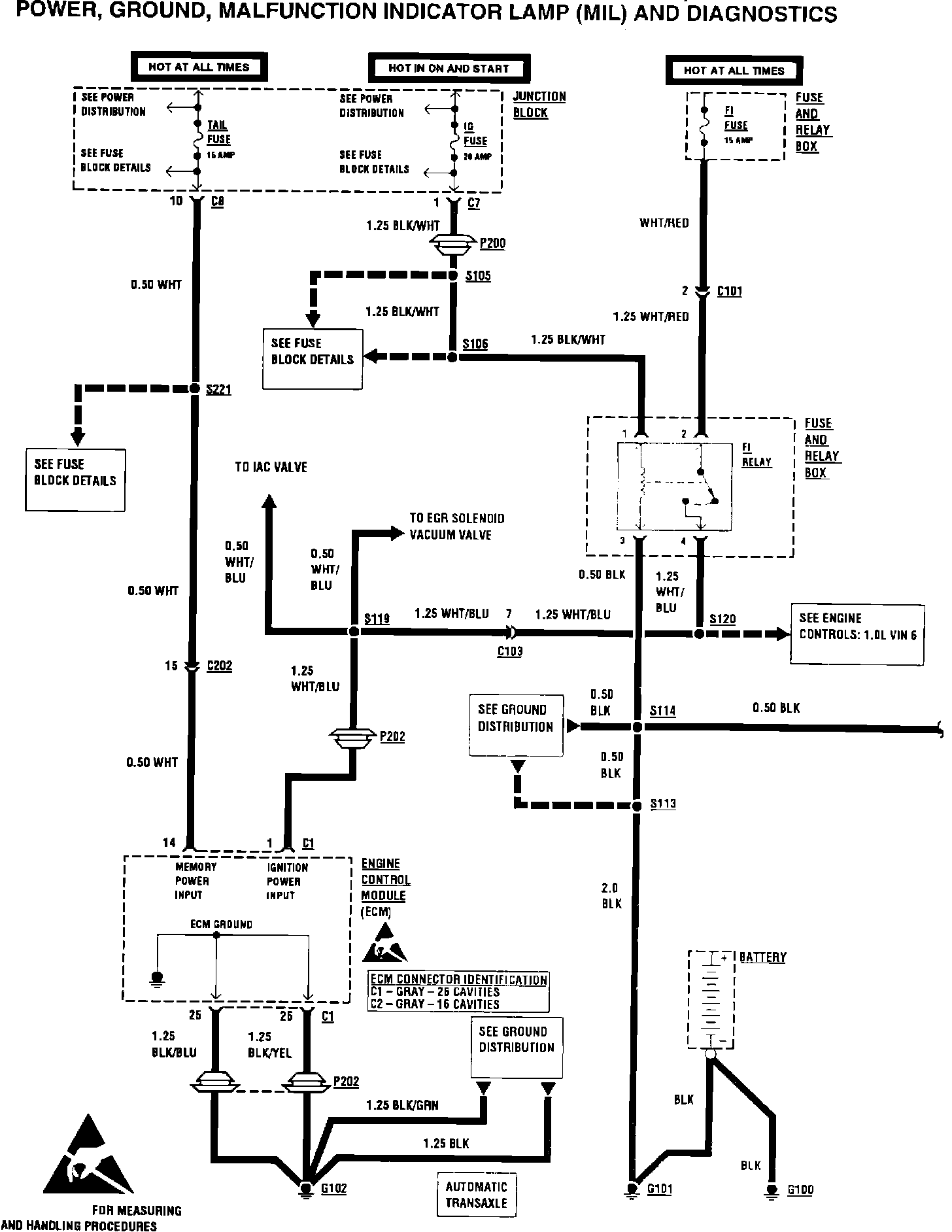

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

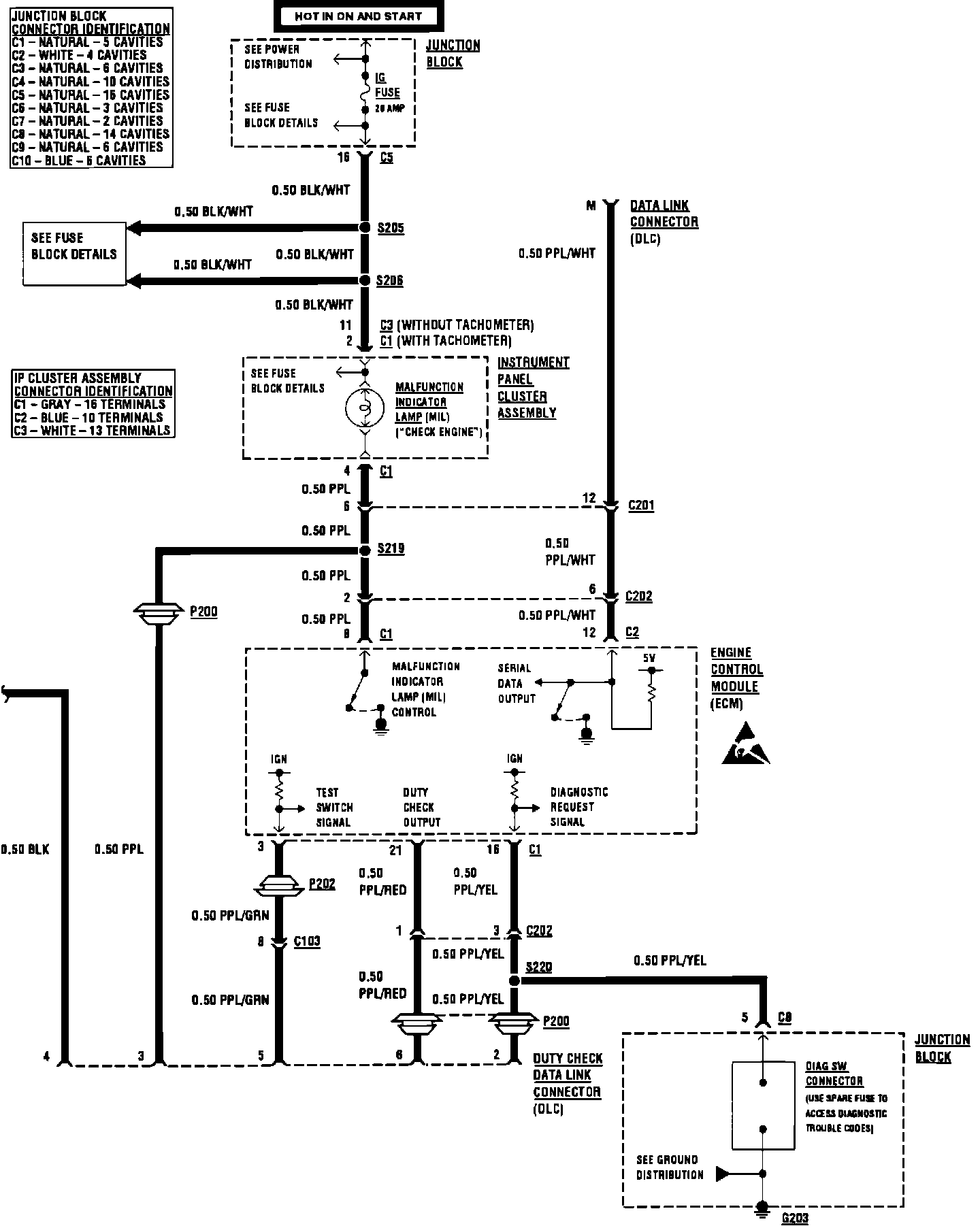

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

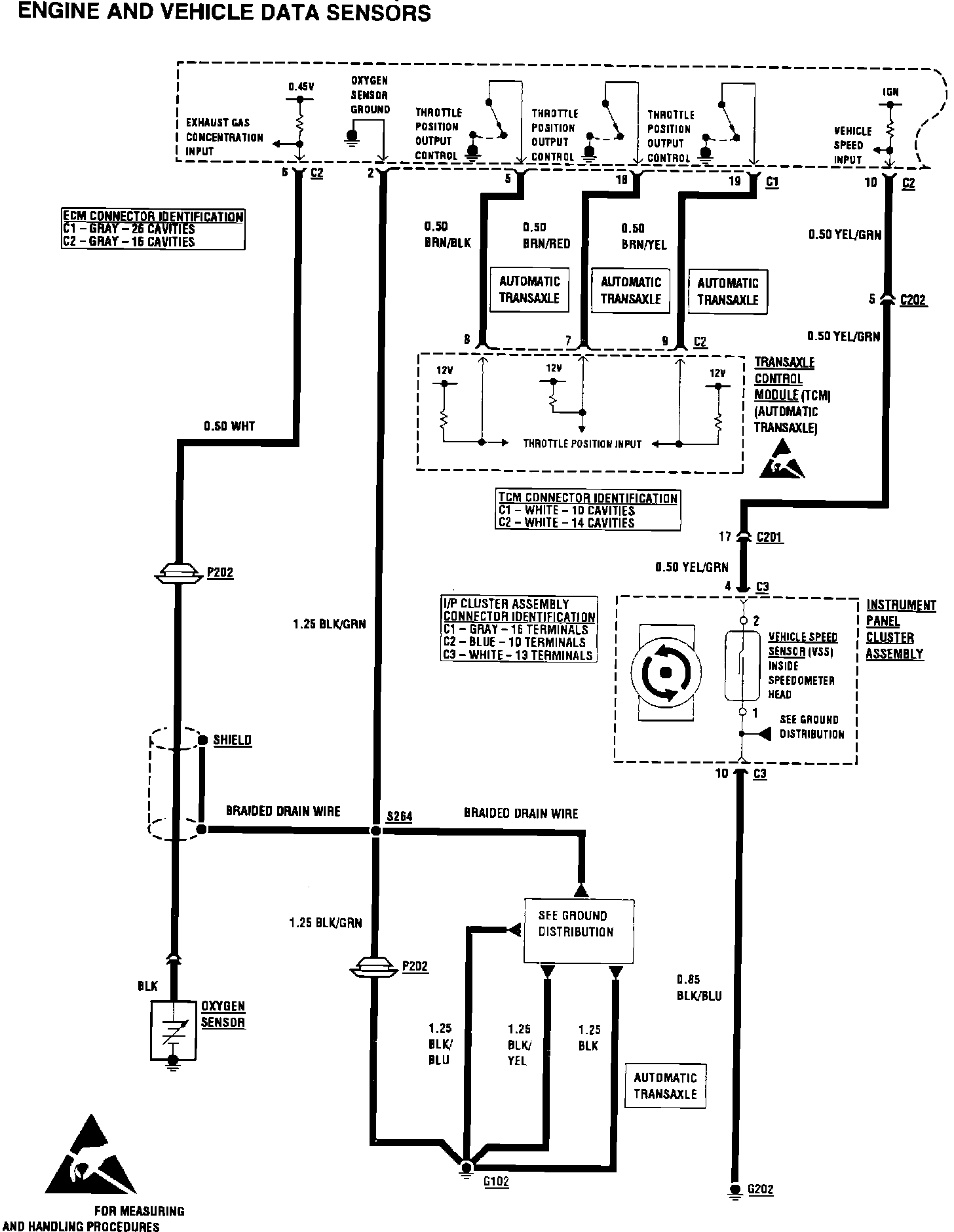

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

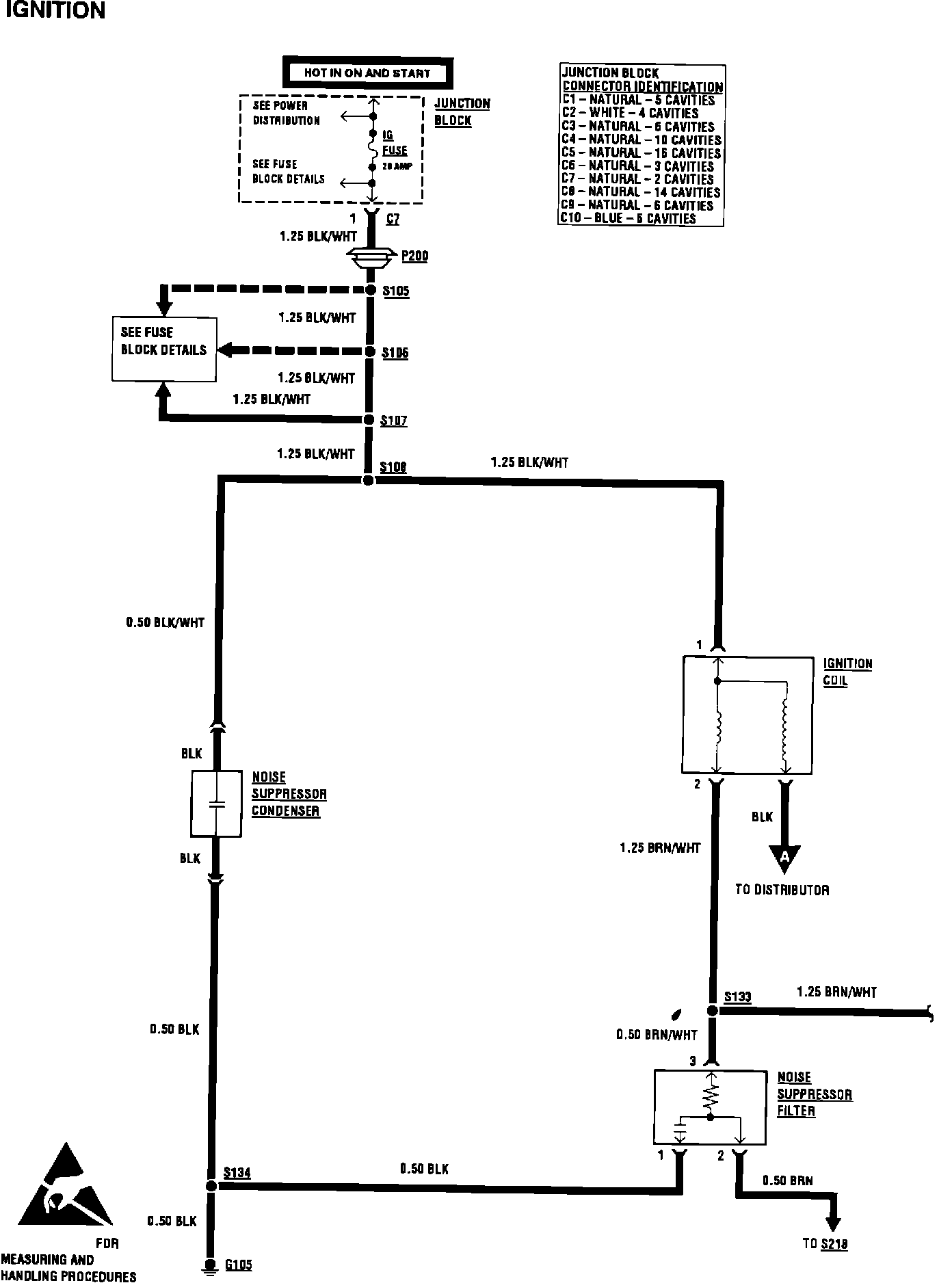

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:

Engine Wiring Diagrams 94 Metro W/ Standard Emissions:
