Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
A/C In-Line Fuse On left side of dash, on fuse/relay block. See Figure .

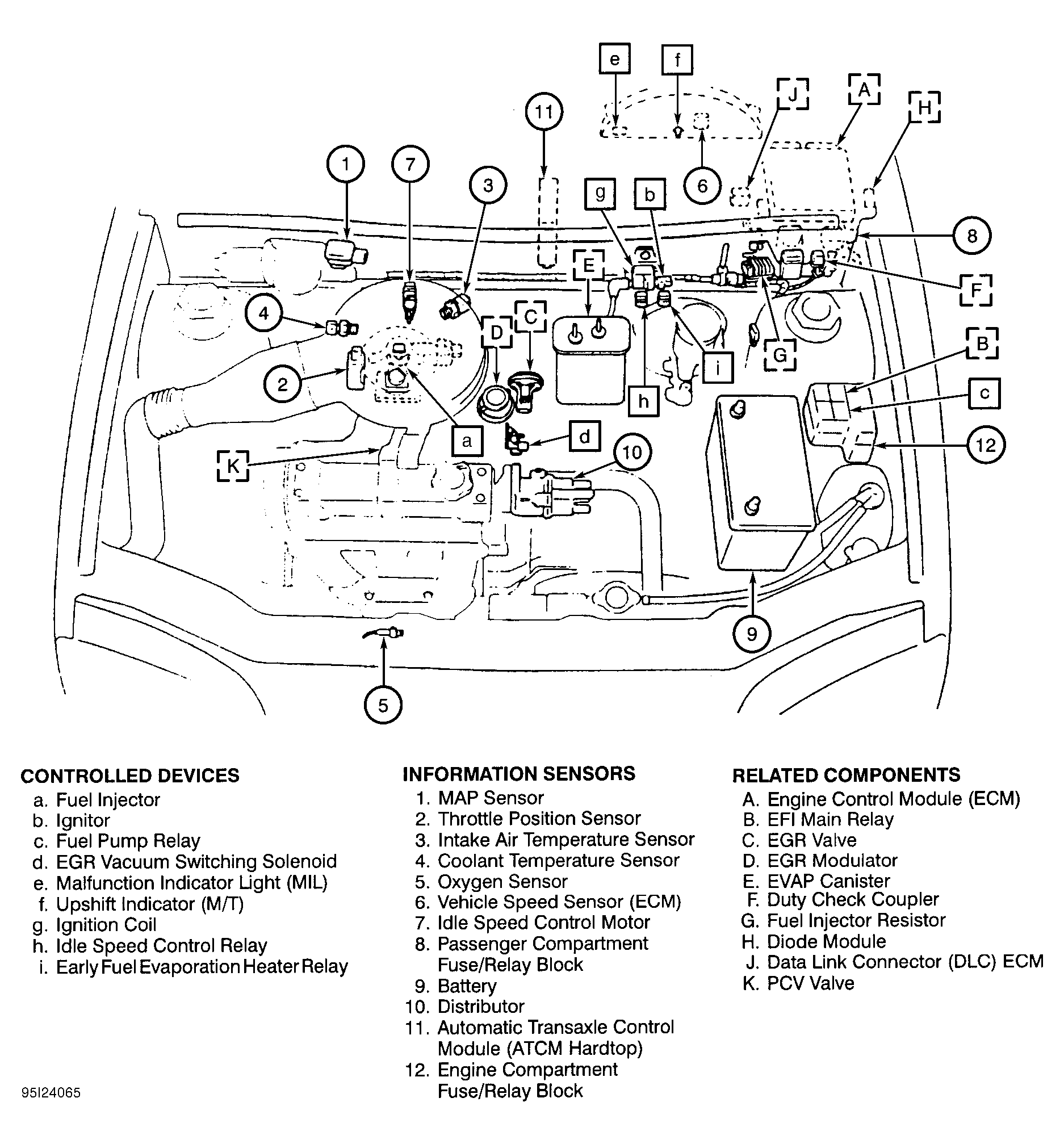

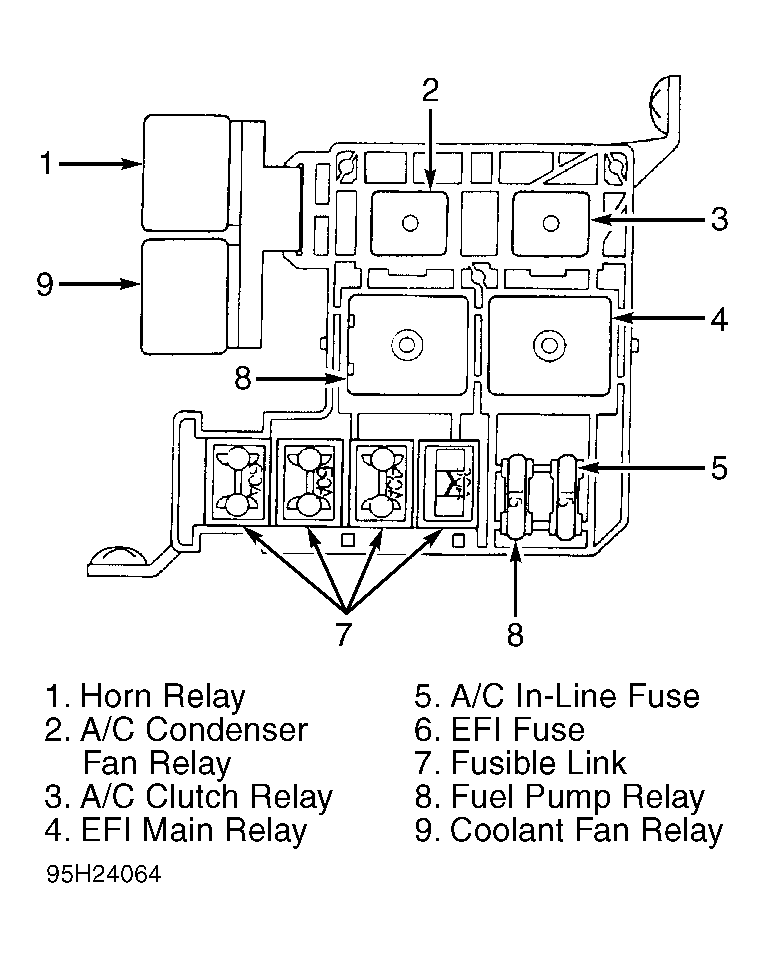

Engine Compartment Fuse/Relay Block On left side of engine compartment, behind battery. See Figure .
Passenger Compartment Fuse/Relay Block On left side of dash, below instrument cluster. See Figure .
Fusible Links On engine compartment fuse/relay block. See Figure .
SIR Fuse Block Behind left side of dash, below fuse/relay block.
