Disabling & Activating SRS
WARNING:
Wait about 2 minutes after disabling SRS before servicing. System maintains SRS voltage for about 2 minutes. Servicing SRS before 2 minutes may cause accidental air bag deployment and possible personal injury.

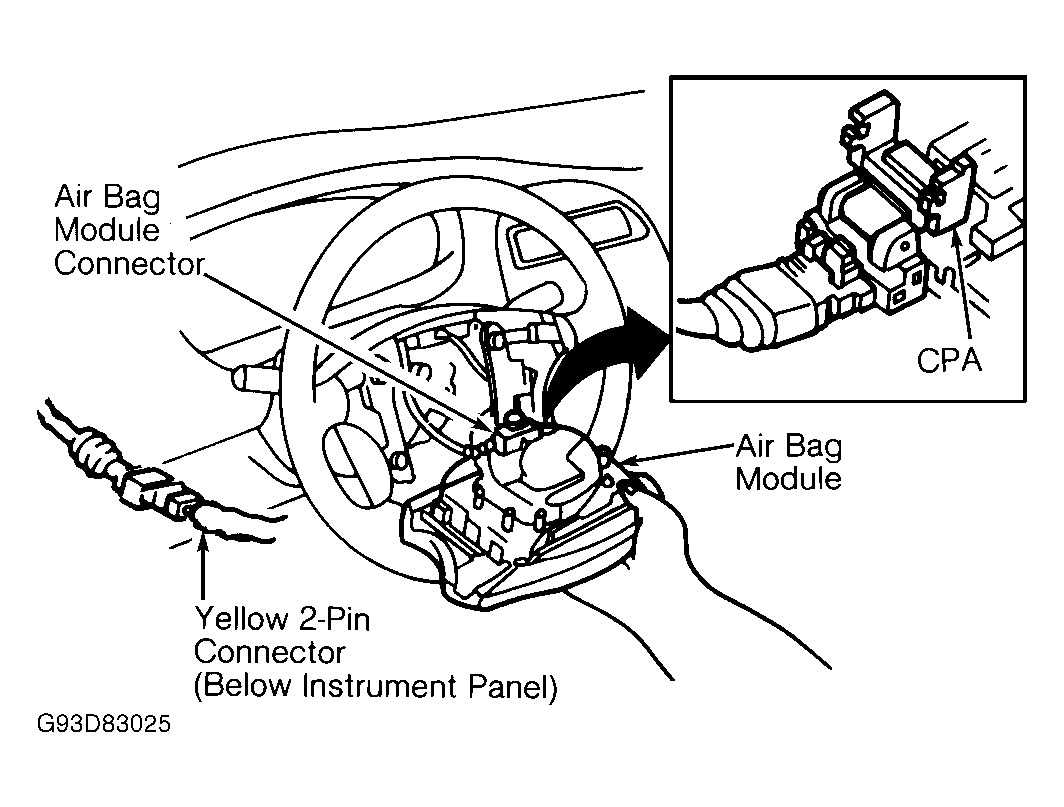

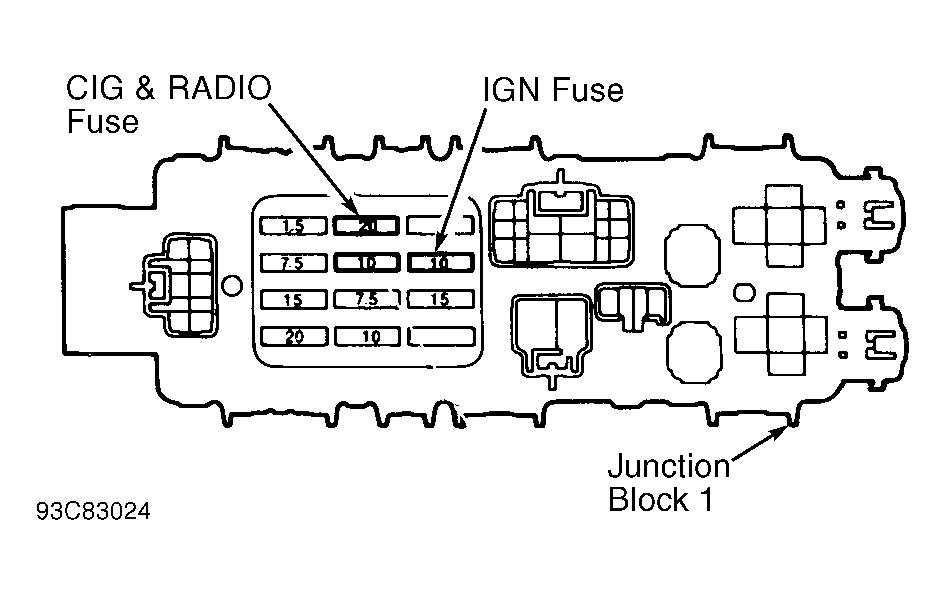

- Ensure front wheels face straight ahead. Turn ignition switch to LOCK position. Remove CIG & RADIO fuse and IGN fuse from junction block. See Fig 1 . Locate driver side air bag Yellow 2-pin connector at base of steering column. See Fig 2 . Remove Connector Position Assurance (CPA) clip and disconnect Yellow 2-pin connector.

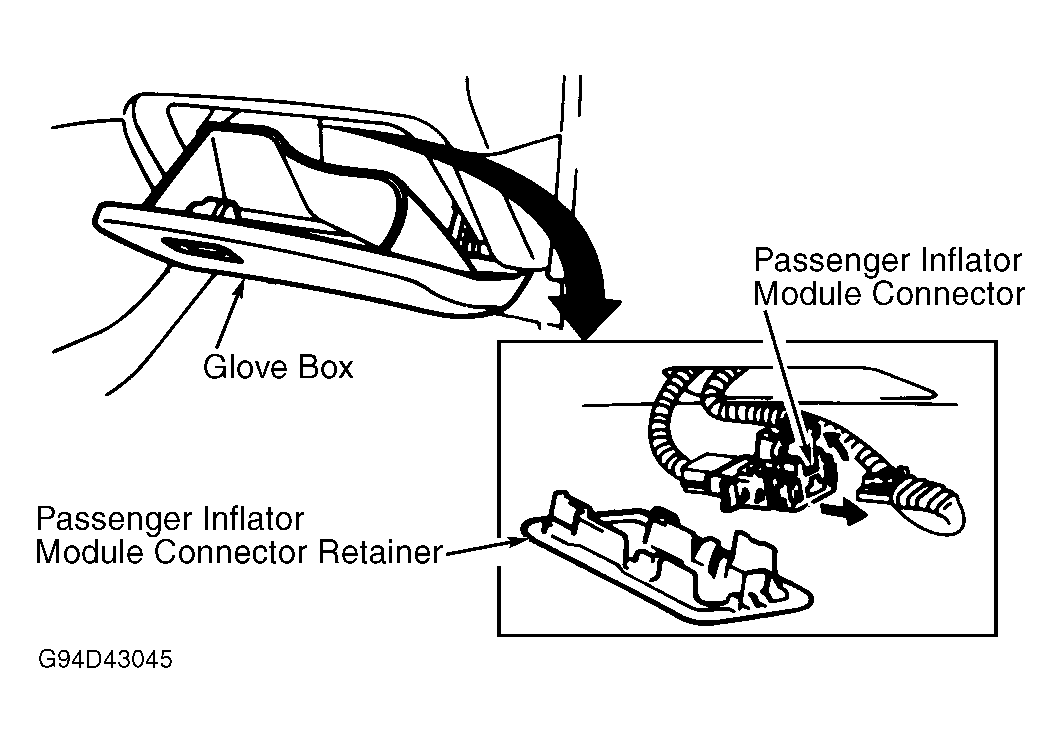

- Lower glove box and remove passenger side air bag connector cover located above glove box. See Fig 3 . Remove Connector Position Assurance (CPA) clip and disconnect Yellow 2-pin connector.
- Wait about 2 minutes before servicing. To activate SRS, turn ignition switch to LOCK position. Connect Yellow 2-pin connectors and CPA clips at base of steering column and above glove box. Install IGN and CIG & RADIO fuses to junction block. Turn ignition switch to ACC or ON position and ensure air bag indicator illuminates steadily for about 6 seconds, then turns off. See SYSTEM OPERATION CHECK in AIR BAG RESTRAINT SYSTEM article in the ACCESSORIES/SAFETY EQUIPMENT section.
