Ignition System: Distributor: Installation
- To install, reverse removal procedure. If reference mark was not made as described in removal procedure or if crankshaft has been rotated, go to next step.
- Turn crankshaft (clockwise direction) until cylinder No. 1 is at TDC of compression stroke. Align punch mark on distributor gear with "V" mark on distributor housing.

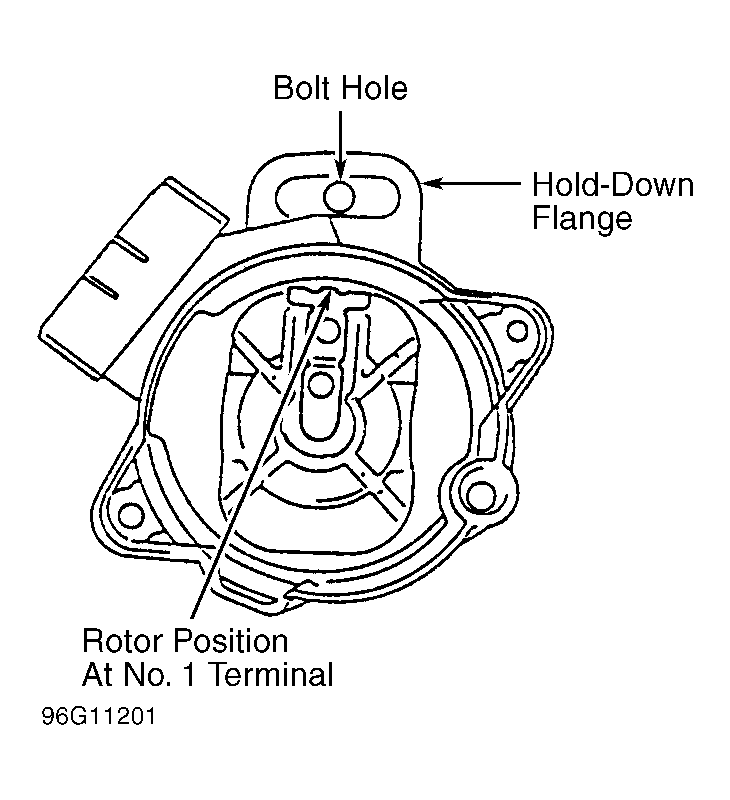

- Before installing distributor, ensure "O" ring is in good condition. Replace as required. If new "O" ring is installed, lubricate with engine oil. Install distributor into gearbox. When distributor is fully seated correctly, distributor flange will align with bolt hole. See Fig 1.
- Ensure distributor is fully seated. Install distributor hold-down bolt. Adjust ignition timing. See ADJUSTMENTS
article.
Courtesy of SUZUKI OF AMERICA CORP.
