Power Window Relay Test

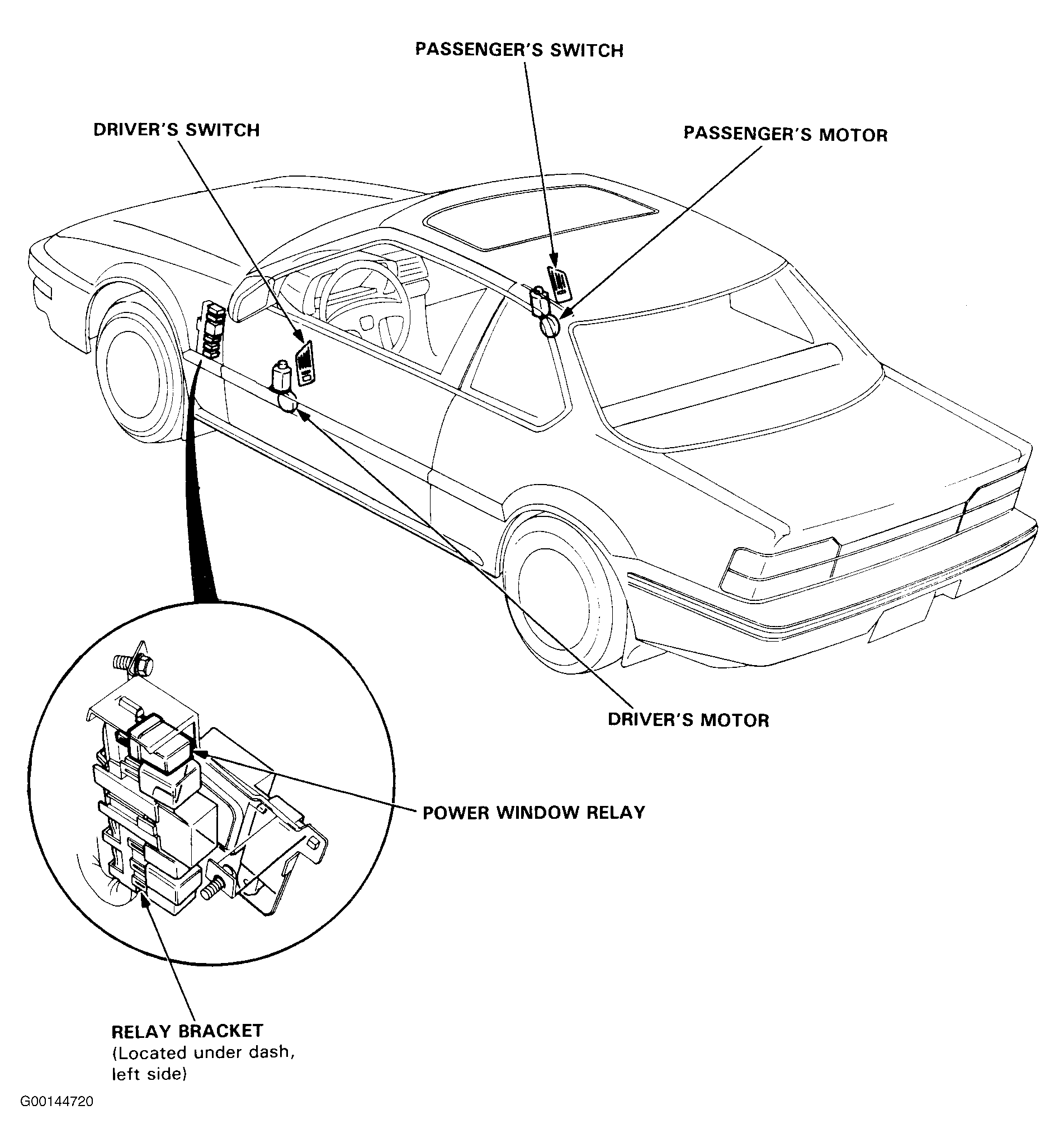

- Remove the power window relay from the dash relay holder. See Figure
.

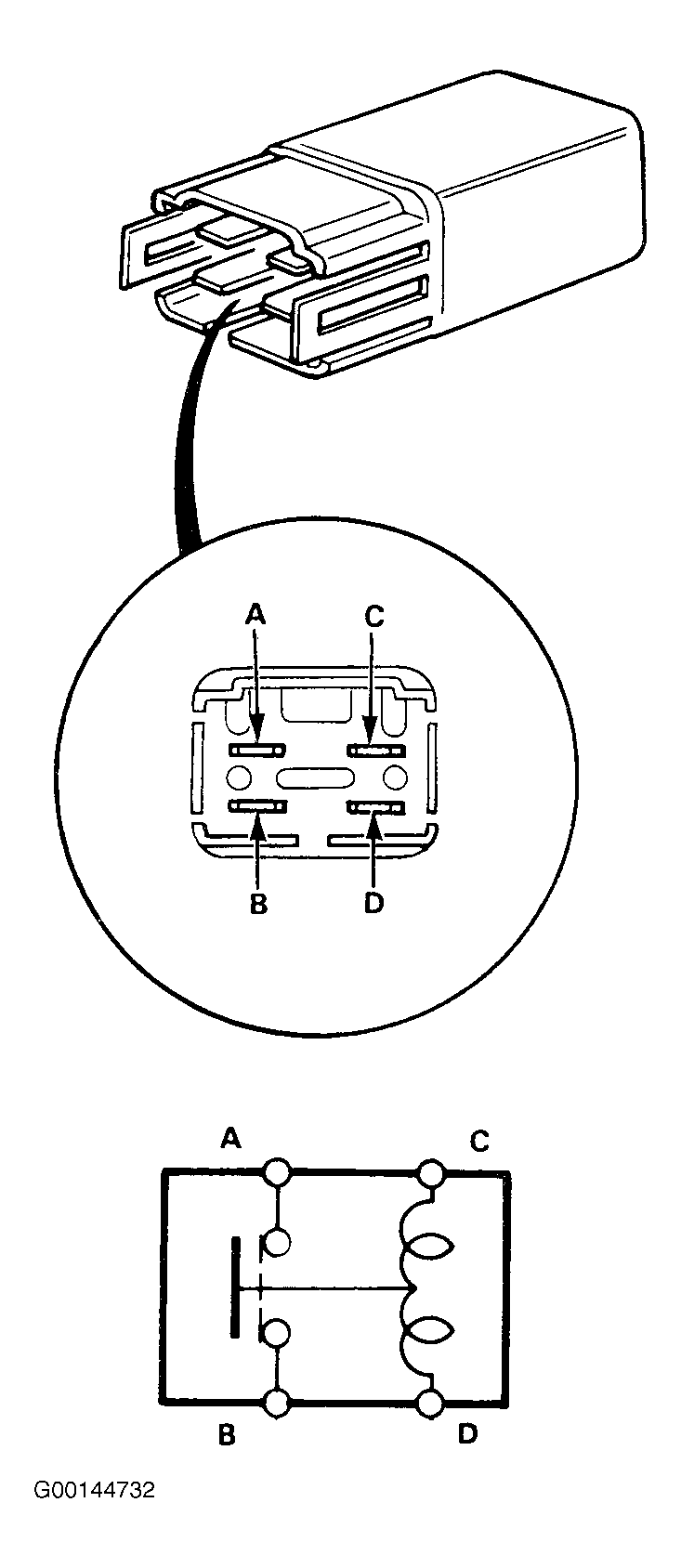

- There should be continuity between terminals "A" and "B" when the battery is connected to terminals "C" and "D". There should be no continuity when the battery is disconnected. See Fig 1
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
