Passenger's Window Switch

  1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Check for continuity between the terminals in each switch position as shown in illustration. See Fig 1 .

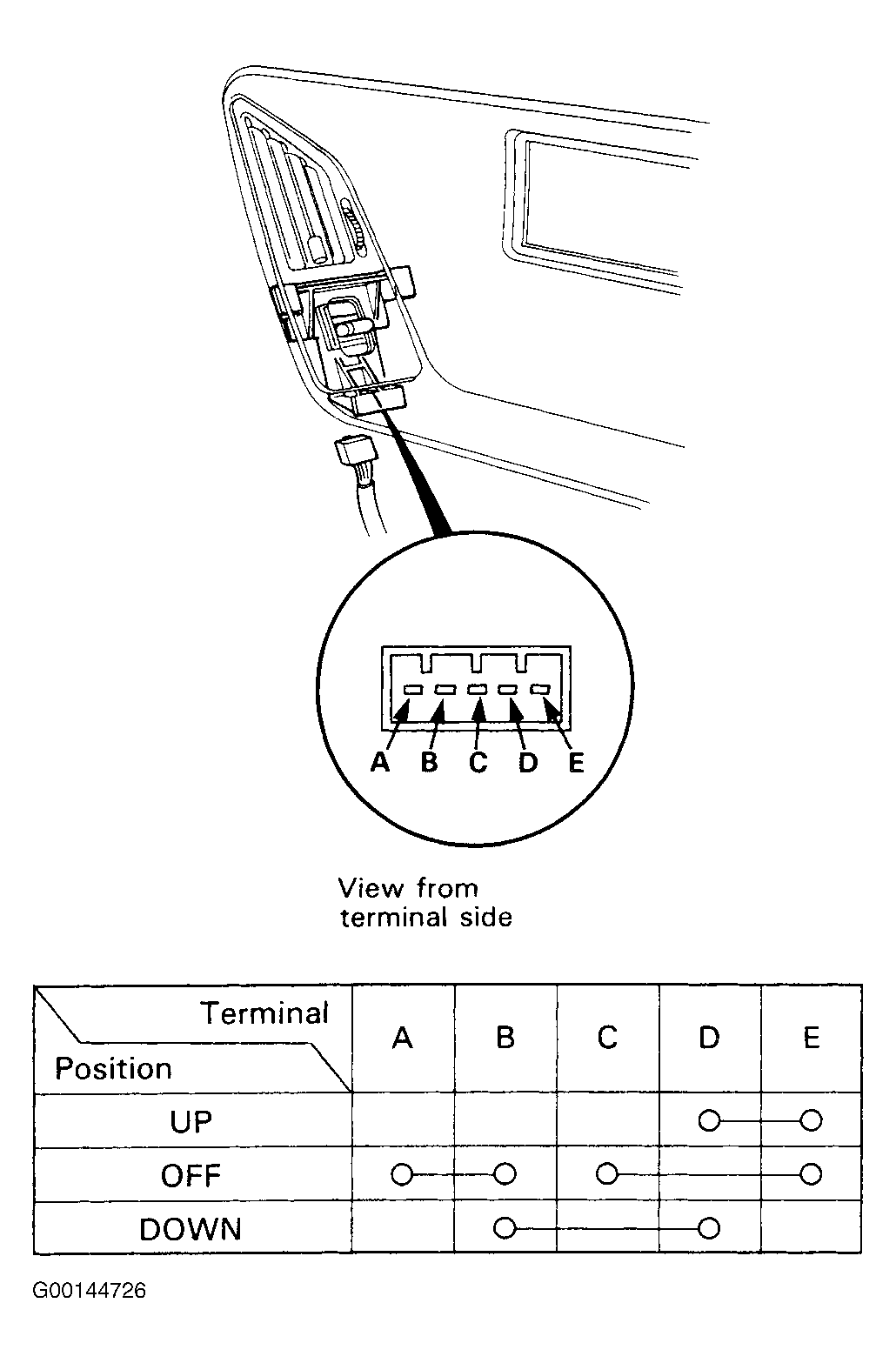

Fig 1: Passenger's Switch Test
G00144726Courtesy of AMERICAN HONDA MOTOR CO., INC.
