Electric Load Detector

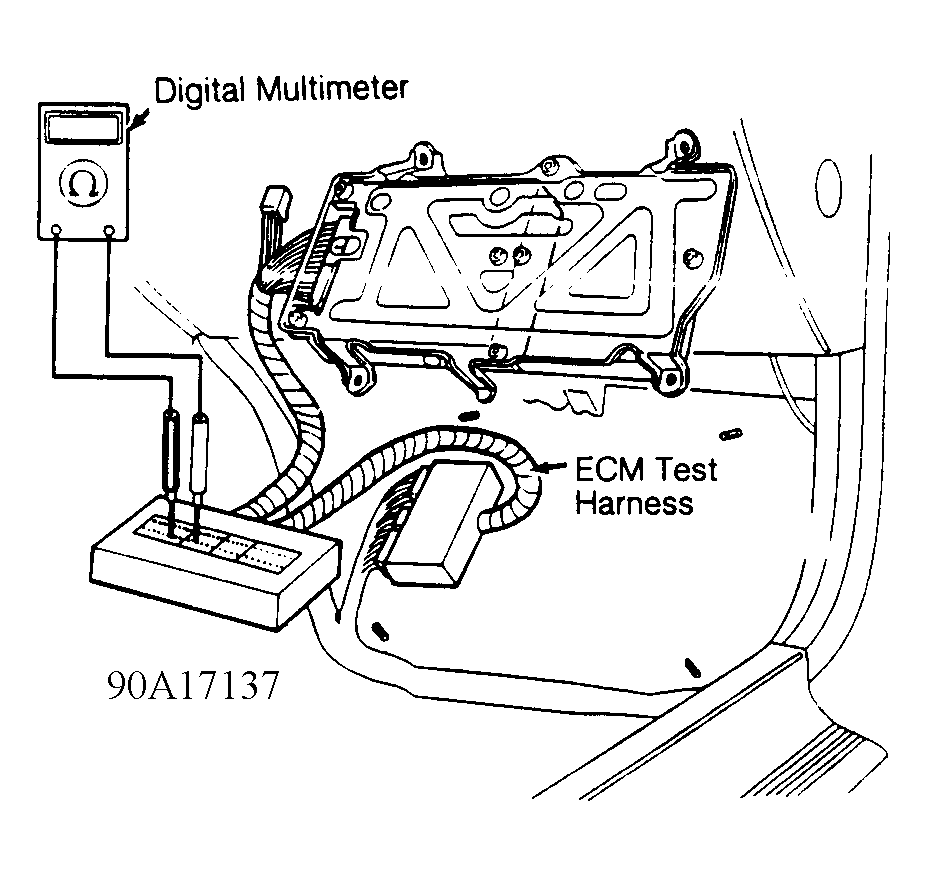

  1. Connect ECU test harness between ECU and main harness connector. See Figure. Turn ignition on. Using a voltmeter, measure voltage between D10 (+) and A26 (-) test harness terminals. Refer to Figure.
  2. Turn headlight switch to first position. Voltmeter should read 1.8-2.8 volts for Accord, 2.5-3.5 volts for Civic and 1.5-3.0 volts for Prelude.
  3. Turn headlight switch to second position. Voltmeter should read .8-1.8 volts for Accord, 1.5-2.5 volts for Civic and 1.0-2.0 volts for Prelude. If voltage reading is not as specified, replace electric load detector.
