Code 21 - VTEC Spool Valve Circuit

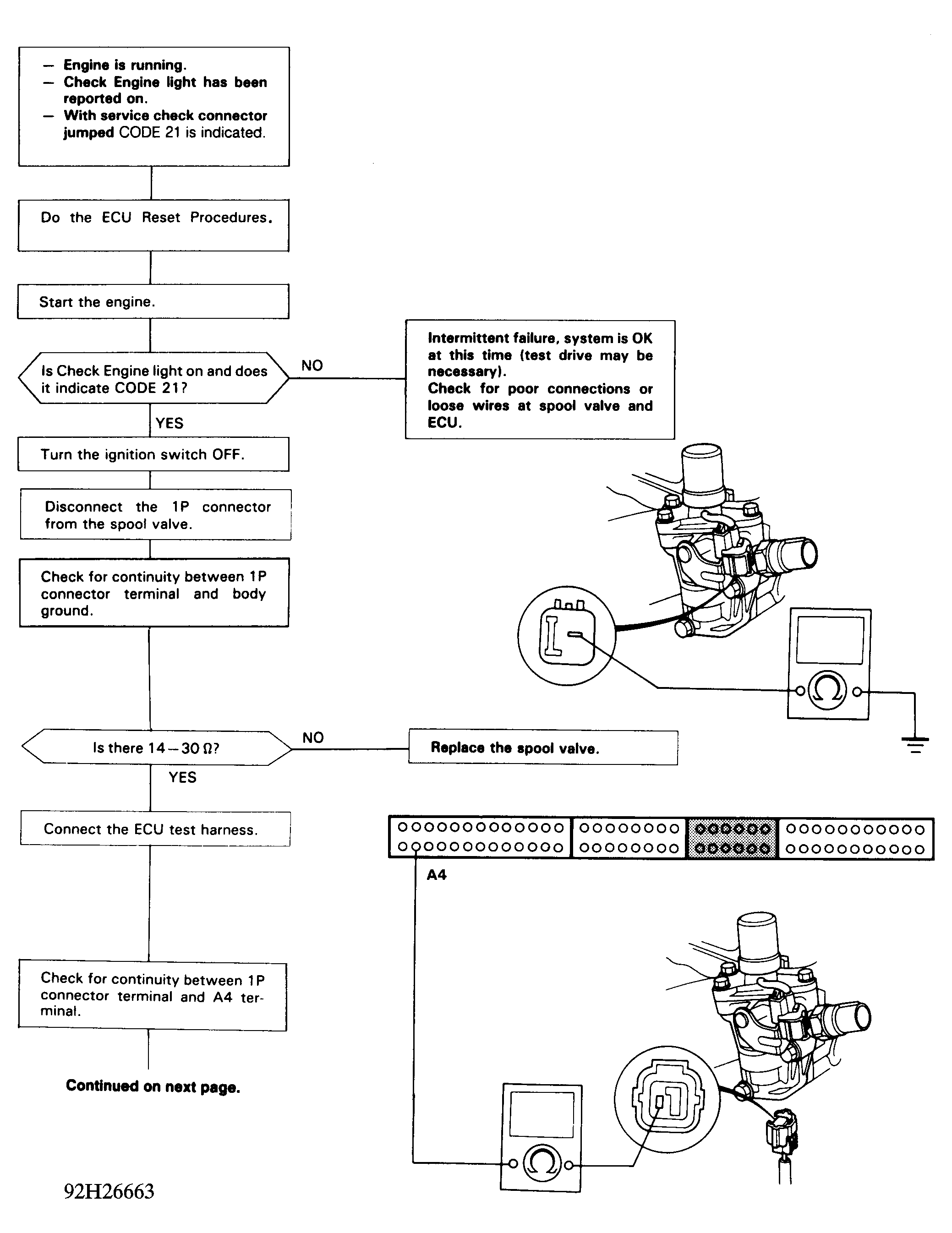

Fig 1: Code 21 Chart (1 Of 2) - VTEC Spool Valve CKT.
G92H26663

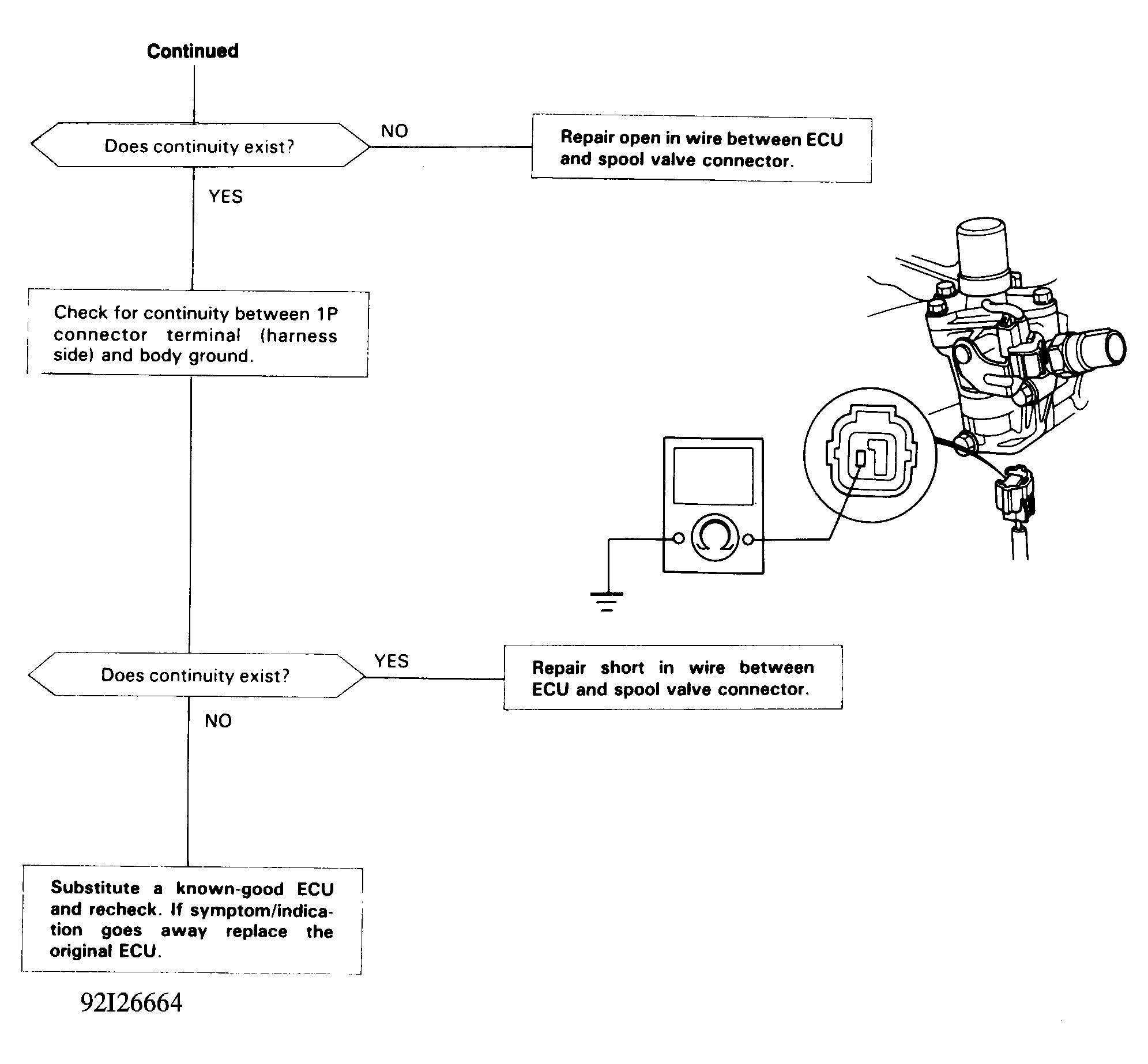

Fig 2: Code 21 Chart (2 Of 2) - VTEC Spool Valve CKT.
G92I26664
