Code 3 - Map Sensor Circuit

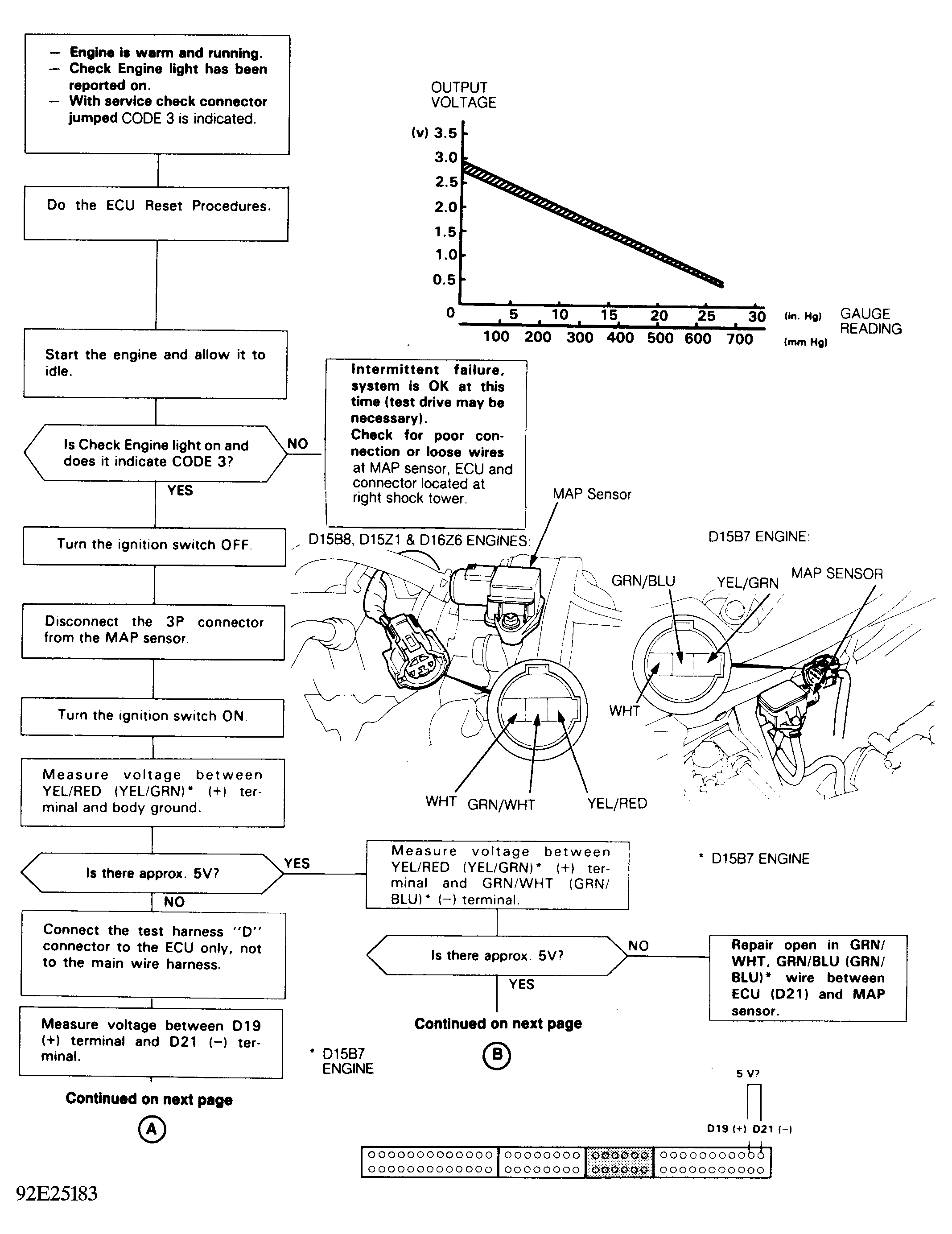

Fig 1: Code 3 Chart (1 Of 2) - MAP Sensor CKT.

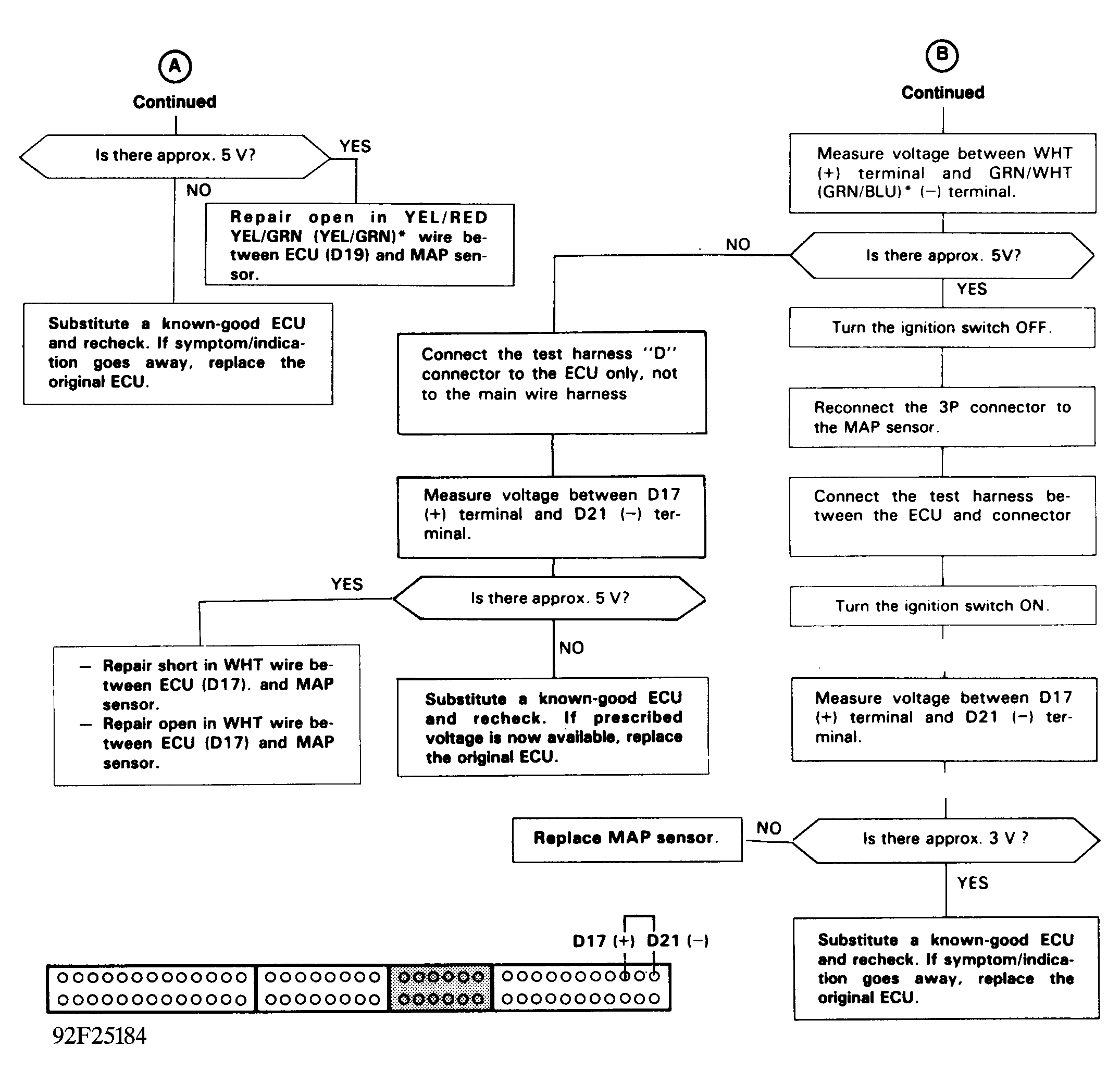

Fig 2: Code 3 Chart (2 Of 2) - MAP Sensor CKT.
