Code 7 - Throttle Angle Sensor CKT.

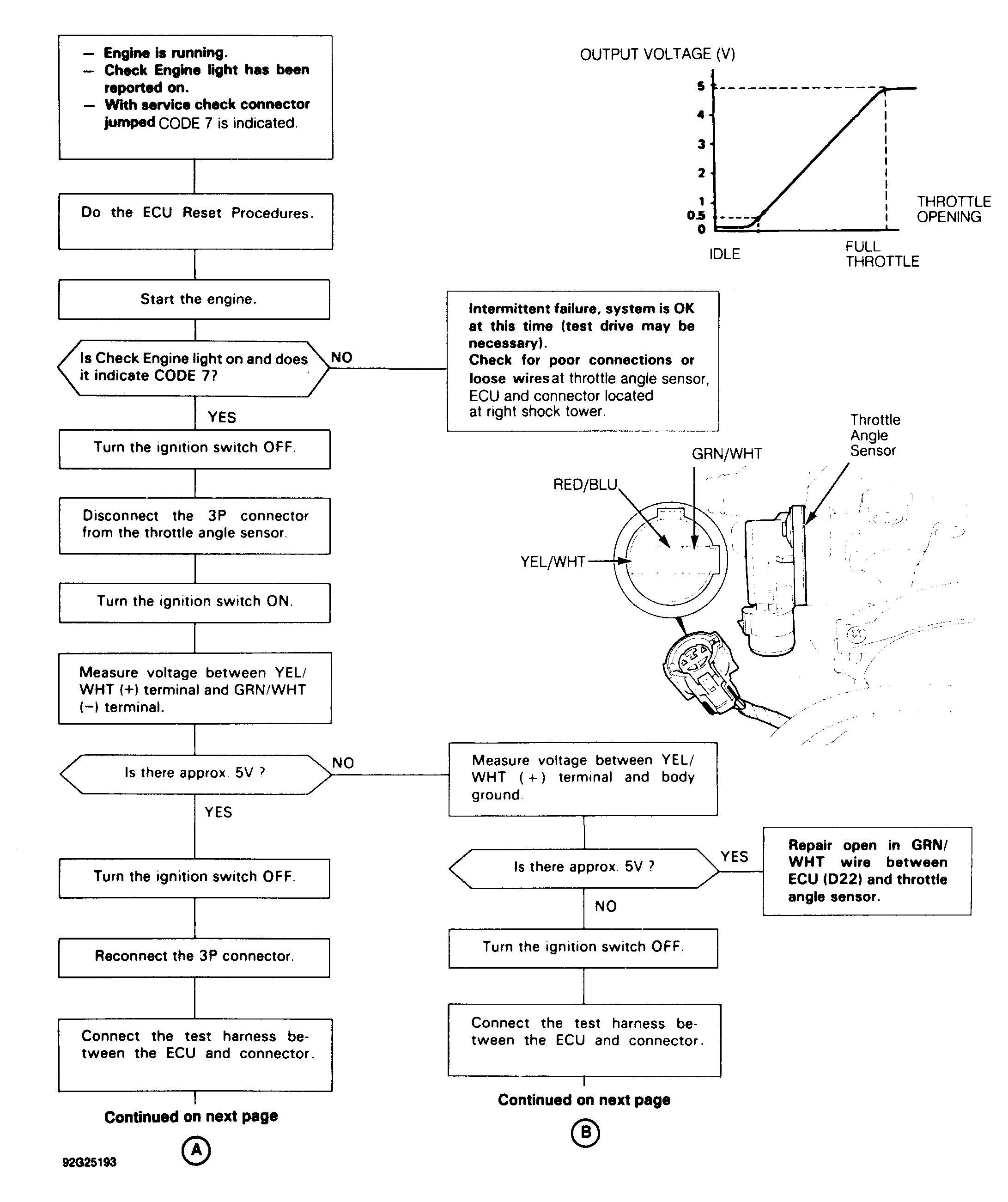

Fig 1: Code 7 Chart (1 OF 2) - Throttle Angle Sensor CKT.
G92G25193

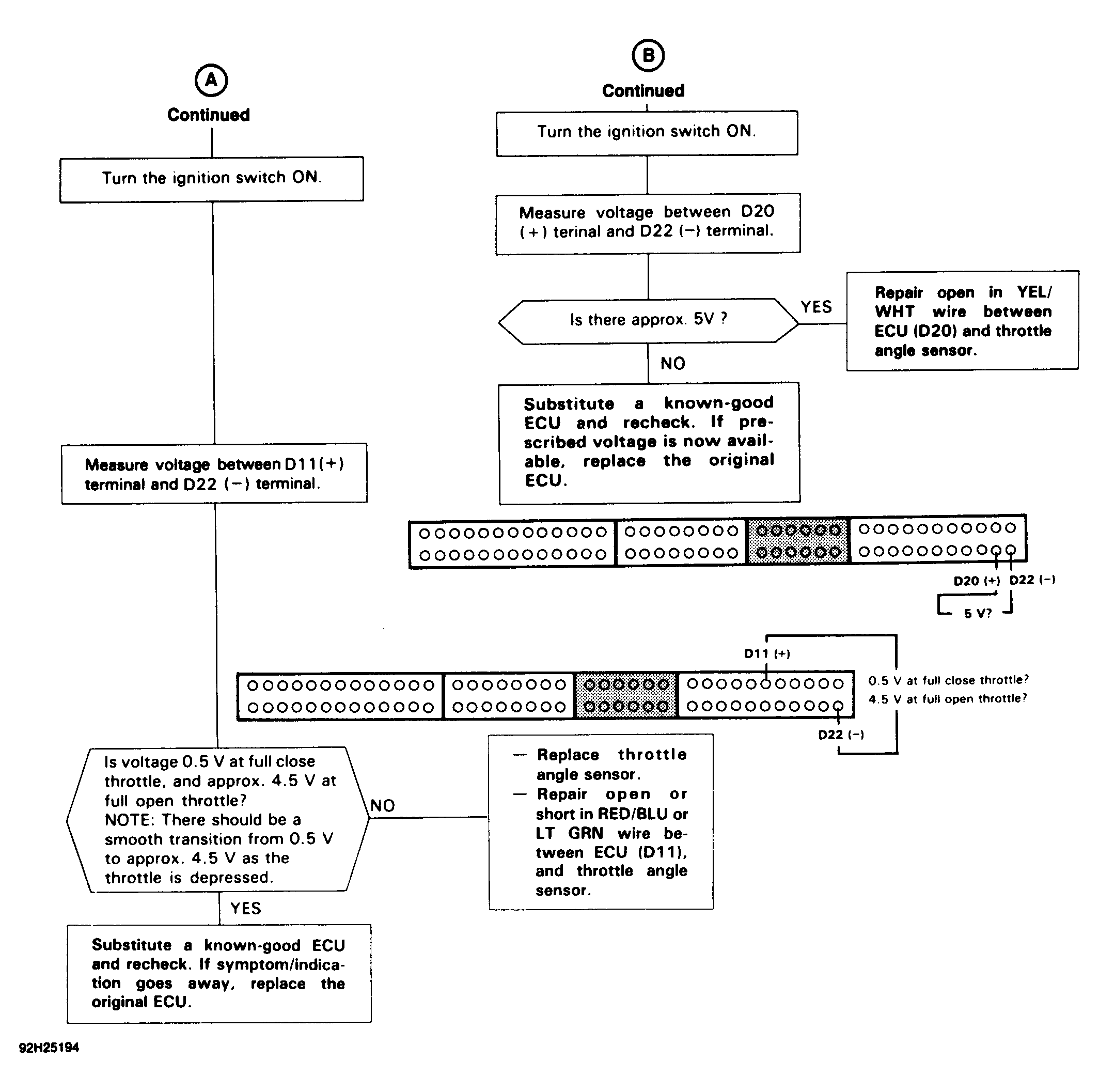

Fig 2: Code 7 Chart (1 OF 2) - Throttle Angle Sensor CKT.
G92H25194
