Code 3 - Map Sensor Circuit

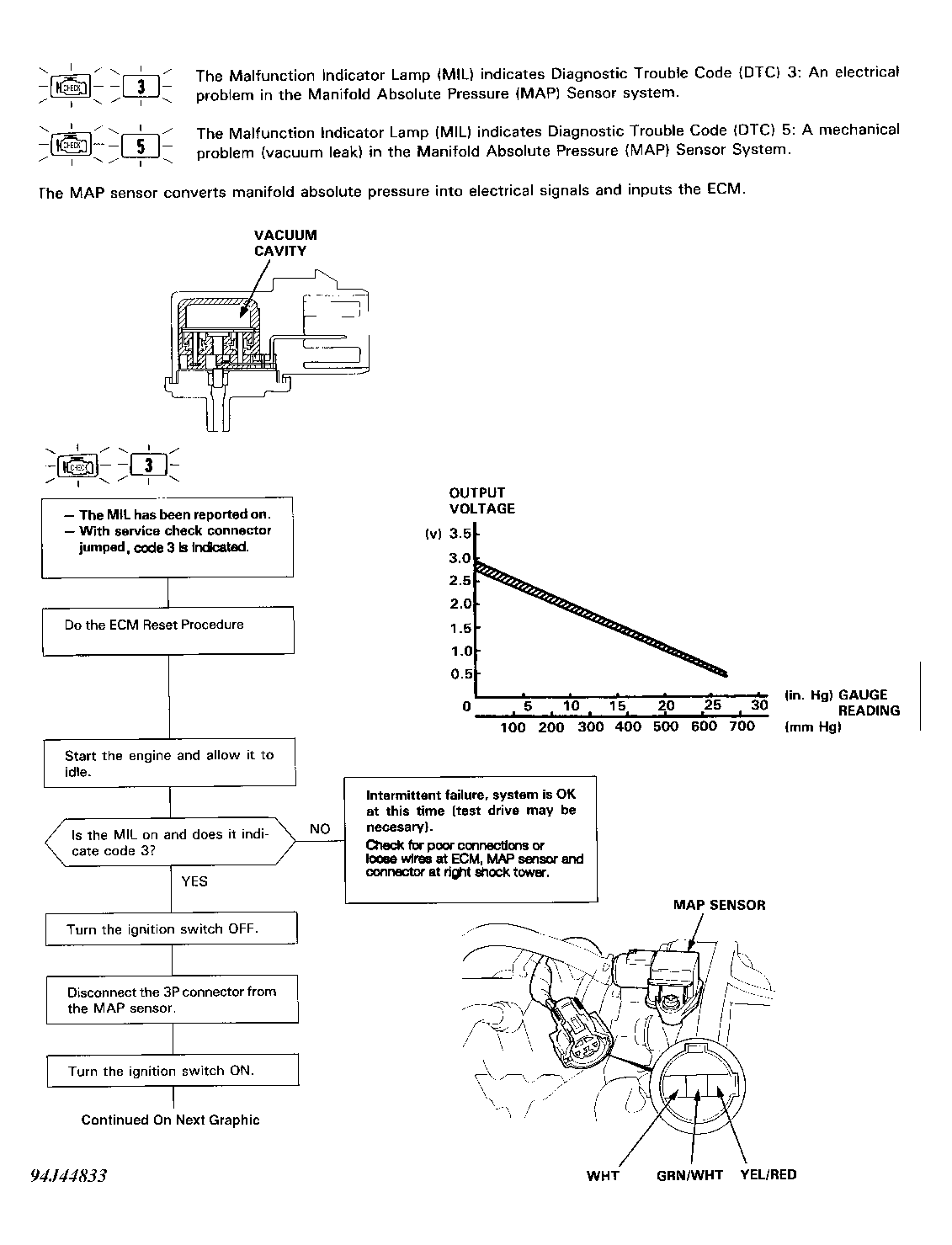

Fig 1: Code 3 Flow Chart (1 of 3) MAP Sensor Circuit
G94J44833

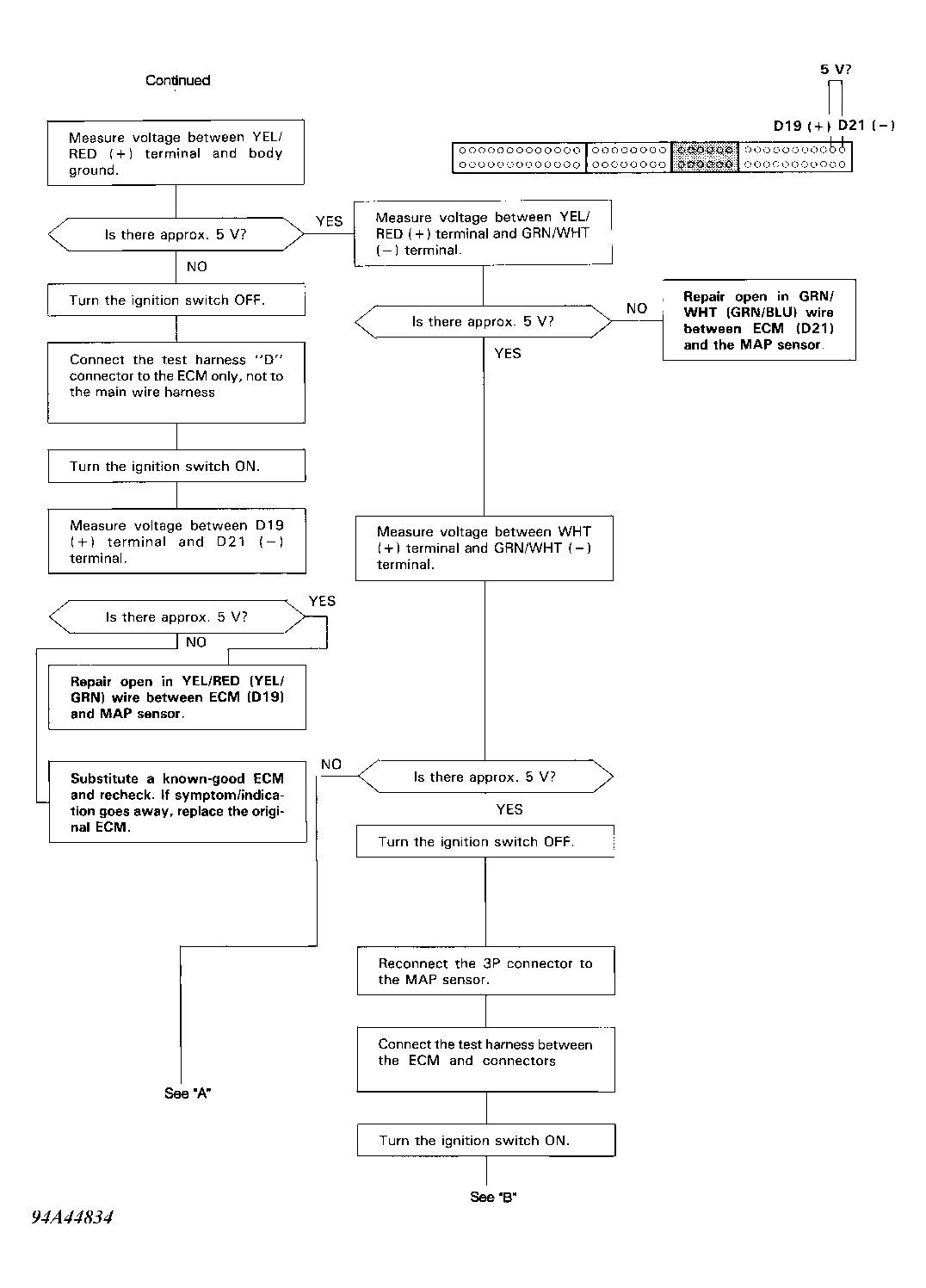

Fig 2: Code 3 Flow Chart (2 of 3) MAP Sensor Circuit
G94A44834

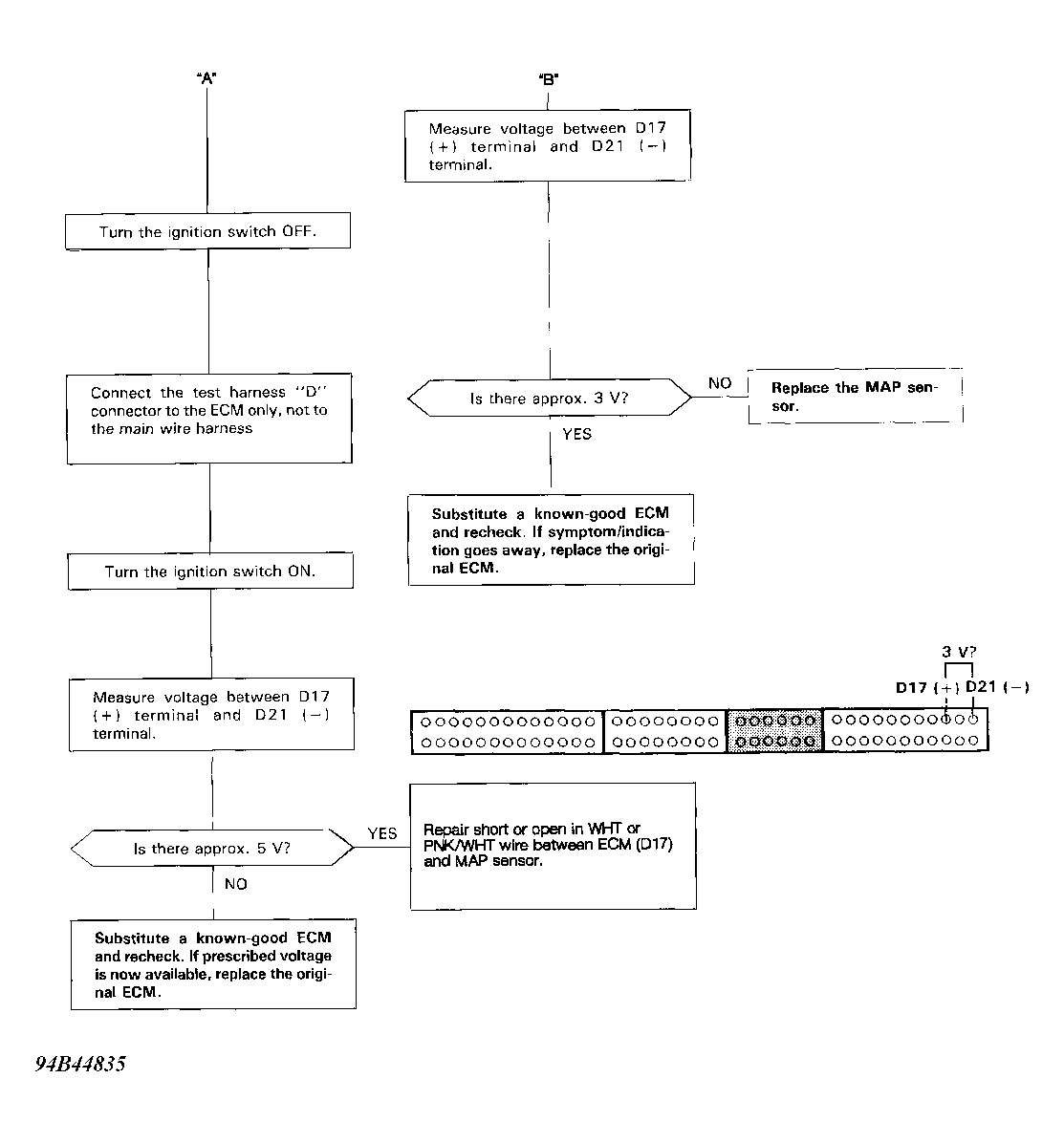

Fig 3: Code 3 Flow Chart (3 of 3) MAP Sensor Circuit
G94B44835
