Preliminary Information

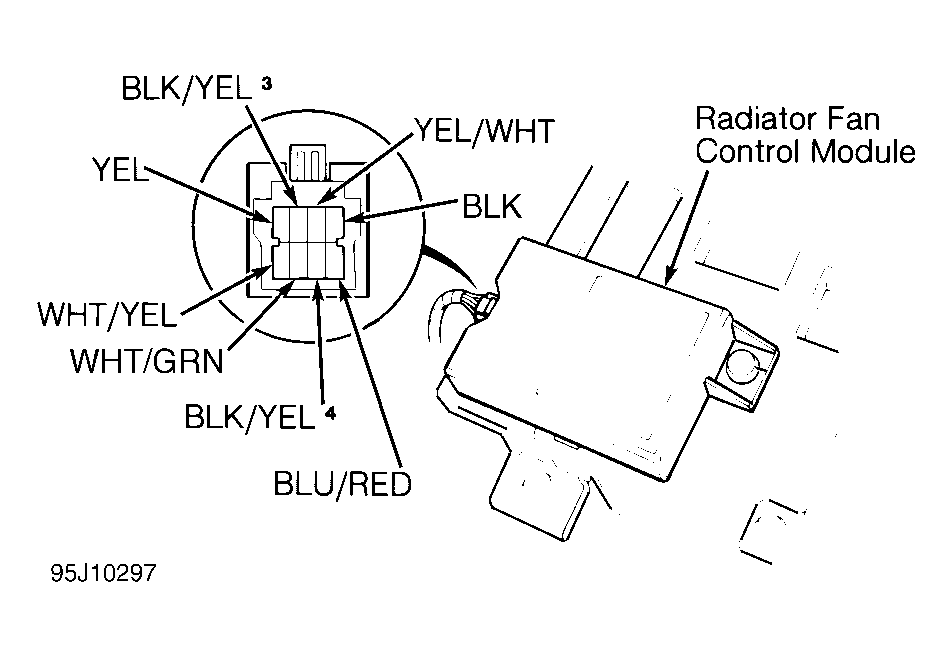

Turn off A/C. Leave radiator fan control module connector attached. See ELECTRICAL COMPONENT LOCATIONS  under DESCRIPTION. See Figure. Turn ignition on. Measure voltage at all of the following terminals (except Blue/Red wire) of radiator fan control module connector (backprobe each terminal).
